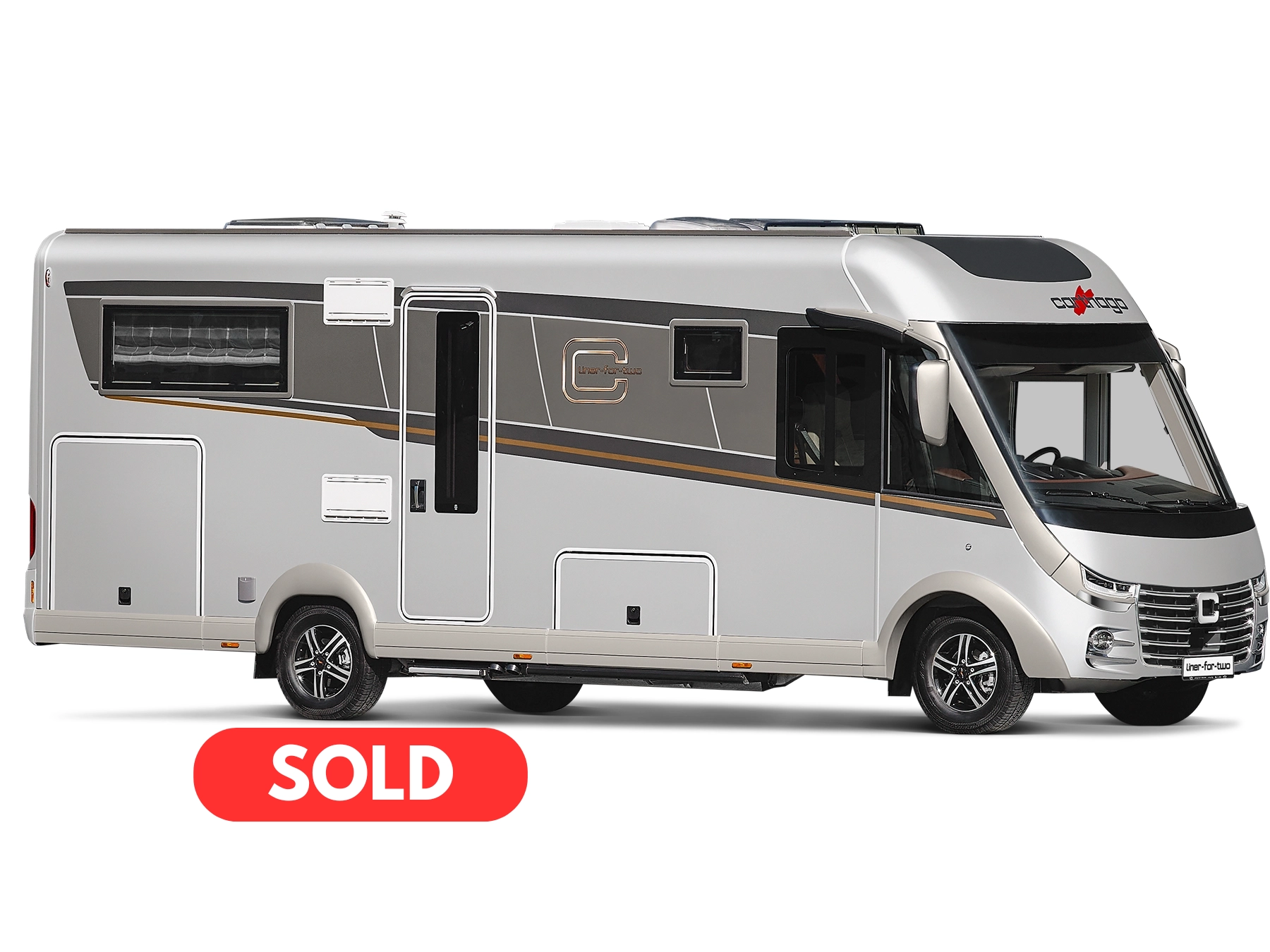

Name: SOLD – Carthago Liner For Two I 53
Brand: Hymer
SKU: 7285
Price: 188242 GBP
Availability: InStock

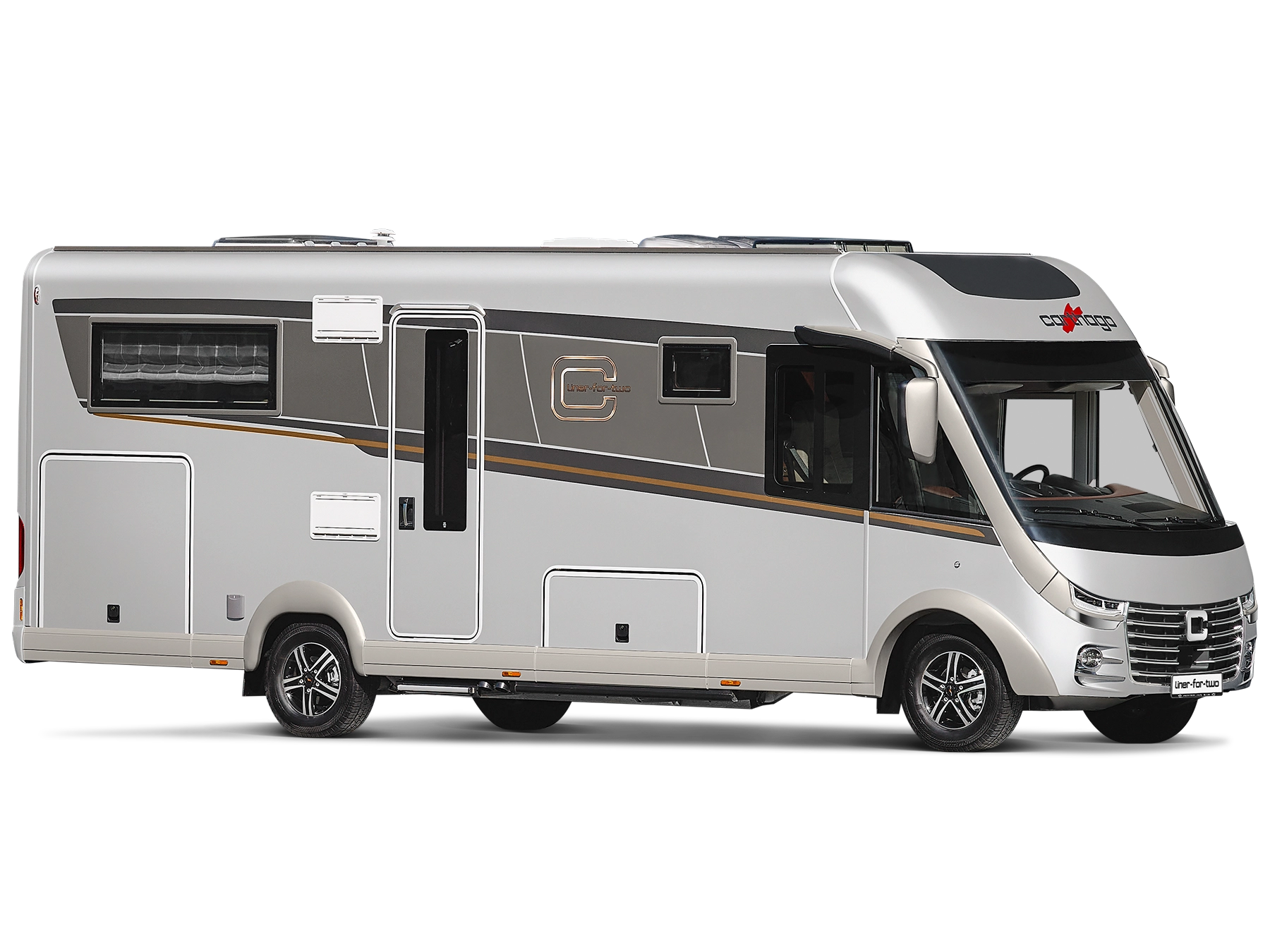

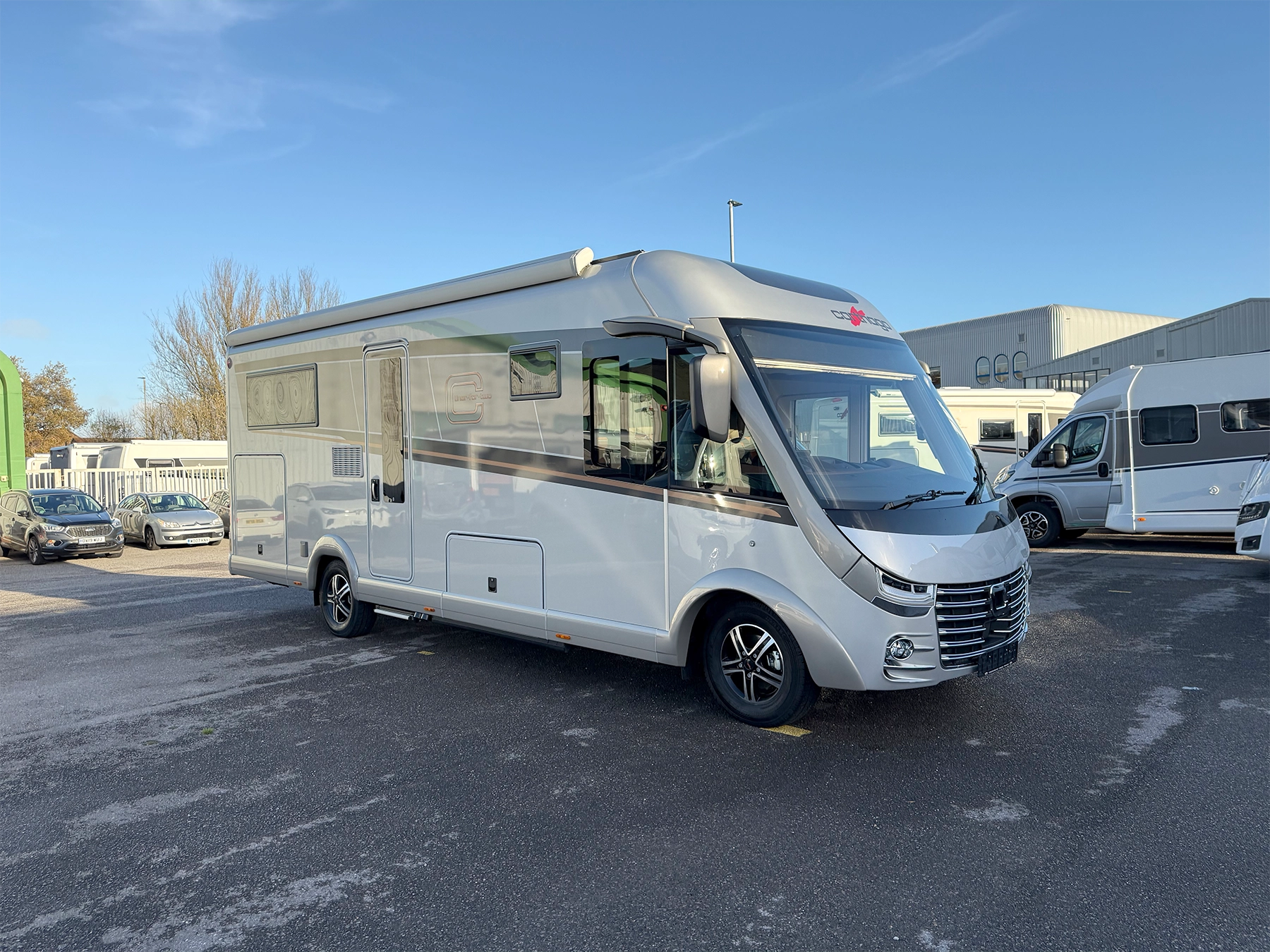

Carthago Liner For Two I 53

The A-class liner-for-two provides excellent comfort and unique sophistication. The unique 4-room concept with round lounge seating area and electronically extendible TV lounger.

Motorhome Technical Data:

Fiat Ducato diesel 2.2l 180 HP / 132 kW
8G automatic torque converter
Wheelbase: 4,543mm
1,980mm headroom in living area
Rear garage interior height: 935/1,140mm
Technically permissible gross vehicle weight: 4,500kg UPGRADED TO 4,800 KG (INC. AL-KO AIR PREMIUM X2 / SPECIAL ALUMINIUM WHEELS)
Electrically operated drop-down bed dimensions: 2,000/1,950×2,100mm
153l fridge with 29l freezer
Heating system: Alde warm water system
210l fresh water tank
155l waste water tank
Battery capacity: 150 Ah lithium
Sockets: 5x 230V / 3x 12V / 3x USB

Carthago Liner For Two I 53 Equipment Includes:

Base
- Engine: 2.2 l diesel Multijet 3 with Adblue (19 l), 180 HP / 132 kW, 4 cylinders, 380 Nm, Euro VIe, front-wheel drive
- 8-speed automatic torque converter as standard
- Fiat Ducato AL-KO low frame single axle
- Reinforced front axle spring with increased axle load up to 2.3 t
- Start / Stop system
- Side wind assistant, cruise control, ABS, ESP, ASR, electric immobiliser, Hillholder, Hill Descent Control, Traction Plus, trailer stability control, collision braking system
- Driver / passenger airbag
- Manual air-conditioning system UPGRADED TO DRIVER’S CAB AUTOMATIC AIR CONDITIONING
- Glove compartment
- Wheel trims with Carthago lettering
- Mud flaps on front and rear axle
- Fix & Go repair kit
- Carthago full LED headlights (dipped and high beam) including LED daytime driving lights
- Fog lights
- 90-litre fuel tank
- 16-inch steel wheels
- All-weather tyres (M+S)
Liner Premium-Class Body Construction
- 10-year water ingress guarantee
- Wood-free bodywork with GRP roof and floor covering
- Roof/wall connection via curved roof and frame member
- Roof system rails at side with rainwater deflection function
- Side and rear walls with aluminium on the interior and exterior
- RTM hard foam insulating core in roof, floor and side wall
- Floor to side wall connection using aluminium frame member bonded over its entire surface with additional cold stop
- Total wall and roof thickness, 38 mm
- Body with lightning strike protection / Faraday cage
- Exterior hatches made from original ‘Carthago Isoplus’ side wall material
- Internal/external flap seal, outer seal as water spray protection
- Exterior hatches and main cabin door with internal hinges
- Fuel tank flap flush-mounted in side wall
- Segmented side skirts made from aluminium profile (Fiat)

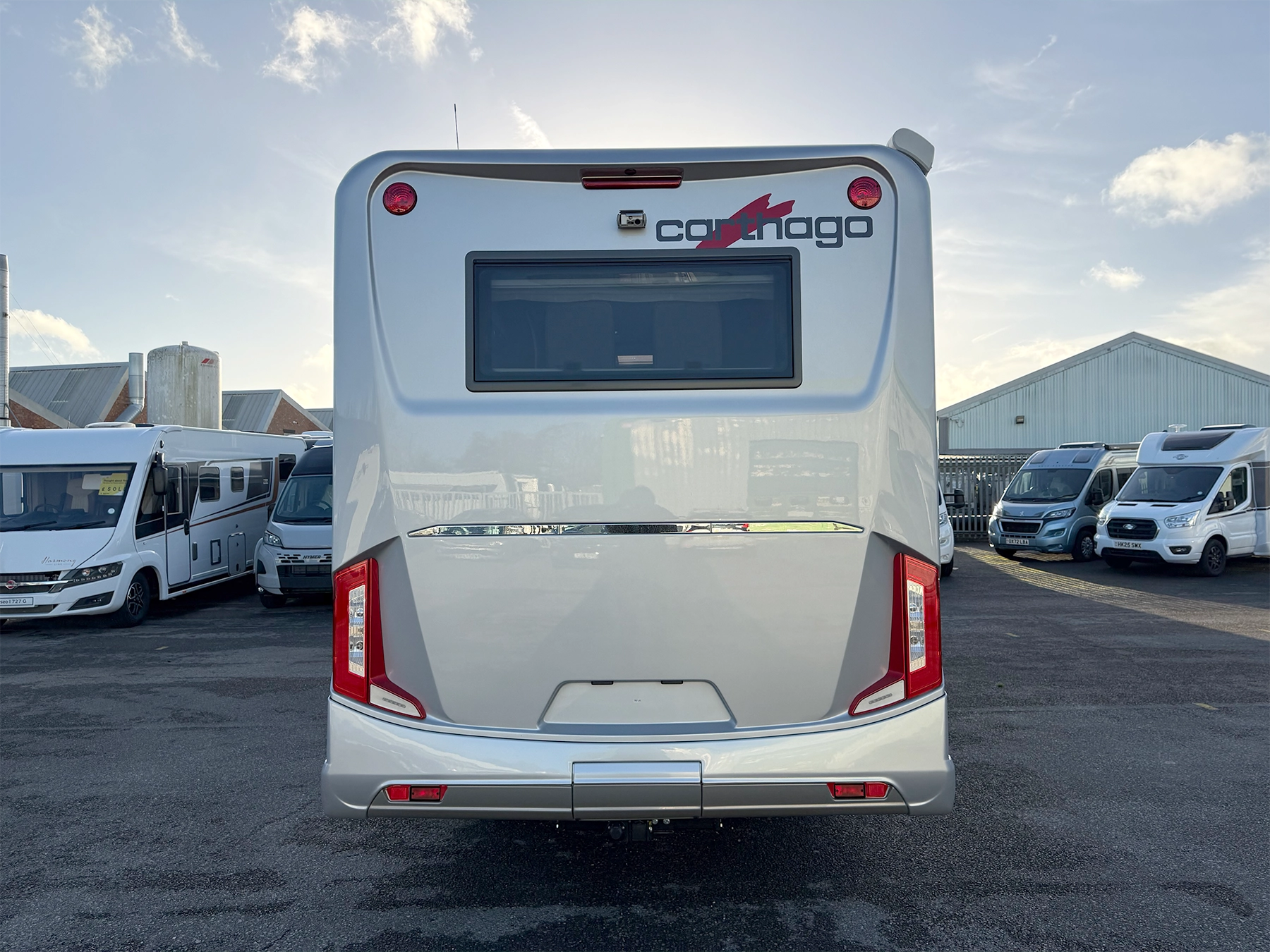

- GRP bus rear with double-shell insulation, separate rear bumper
- Carthago rear lights with dynamic LED indicators
- Seitz de Luxe main cabin window, double frame with insulated glazing and no thermal bridge and flat outer window surface, insect screen roller blind and pleated blackout blind
- LED exterior light above main cabin door with rain deflector
- Electrically extending entrance step for main cabin door with warning buzzer

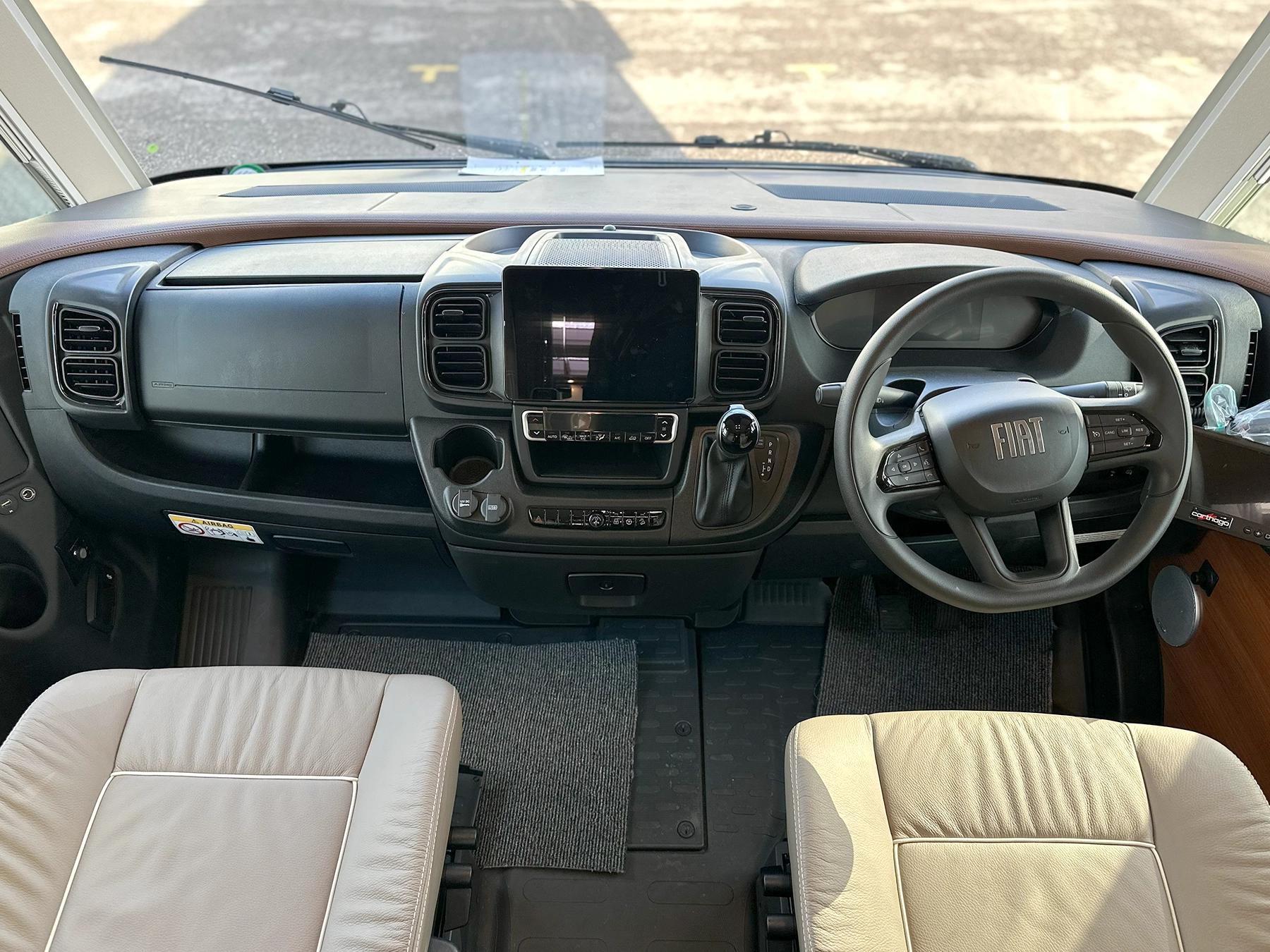

Driver’s Cab
- Dashboard sloping steeply towards front (view of road surface in Fiat 2.77 m)
- Extra-high panoramic windscreen with increased depth
- ‘Exclusive’ designer front mask above windscreen with black panel
- ‘Liner’ engine hood design – visual windscreen extension
- Pleated windscreen blind with insulating honeycomb structure
- Pleated blackout blinds behind side windows (operated from the side)
- Front mask in GRP, with double-shell insulation
- Driver’s cab door with security double locking, electric windows, rain gutter
- Soundproofing for engine compartment
- Aguti ‘Roadliner’ driver’s and passenger’s comfort seats with Carthago label, in same material as living area, padded armrests
- Dashboard with leather-covered moulded part, practical sideboard, as well as pre-wiring for integrated reversing camera monitor and bottle holder
- Leather-covered bottom panelling for drop-down bed including sun visors, with indirect lighting and LED spotlights
- Sideboard on passenger’s side with two heating convectors and storage compartment above
- Driver’s cab heating concept
  - Insulating double glazing in driver’s cab: side and door windows
  - Convector package with 2-speed fan (booster) beneath driver’s seat
  - Dashboard surface targeted heating for additional heating of the driver’s cab (surface heating effect): integrated heating convectors with circulation baffle plate (double convectors on driver’s and passenger’s sides)
  - Driver’s cab door entrance: targeted heating with additional convector
Double Floor Storage Compartment
- Usable height up to 50 cm
- Outside access via several large hatches
- Interior access via large living area floor hatches
- Central through-loading space (interior height 36 cm) with large double floor storage compartment (usable height 36 cm)
- Through-loading storage compartment with lighting and heating double floor hatch in dressing room area (36 cm usable depth) for convenient unloading of double floor storage compartment
Large Scooter Garage
- Pedelec scooter garage (including wheel lowering at passenger side), interior height 114 cm (= maximum handlebar height for Pedelec / scooter at passenger side), garage height outside of wheel recesses 93.5 cm
- Scooter garage load capacity up to 350 kg
- Large garage hatches on passenger’s and driver’s sides, with gas struts
- Garage floor with GRP on top and bottom, anti-slip coating
- With all-around frost-proof insulation and heating
- Lashing system via aluminium support beam, including eight lashing eyes
- Outdoor shower in scooter garage on passenger’s side (hot / cold)
Interior
- Siena two-tone world of style: Summer Chestnut furniture finish with overhead cabinet fronts in two-tone look with high-gloss ivory
- Overhead cabinet and kitchen fronts in ‘Yacht One’ high-gloss ivory finish

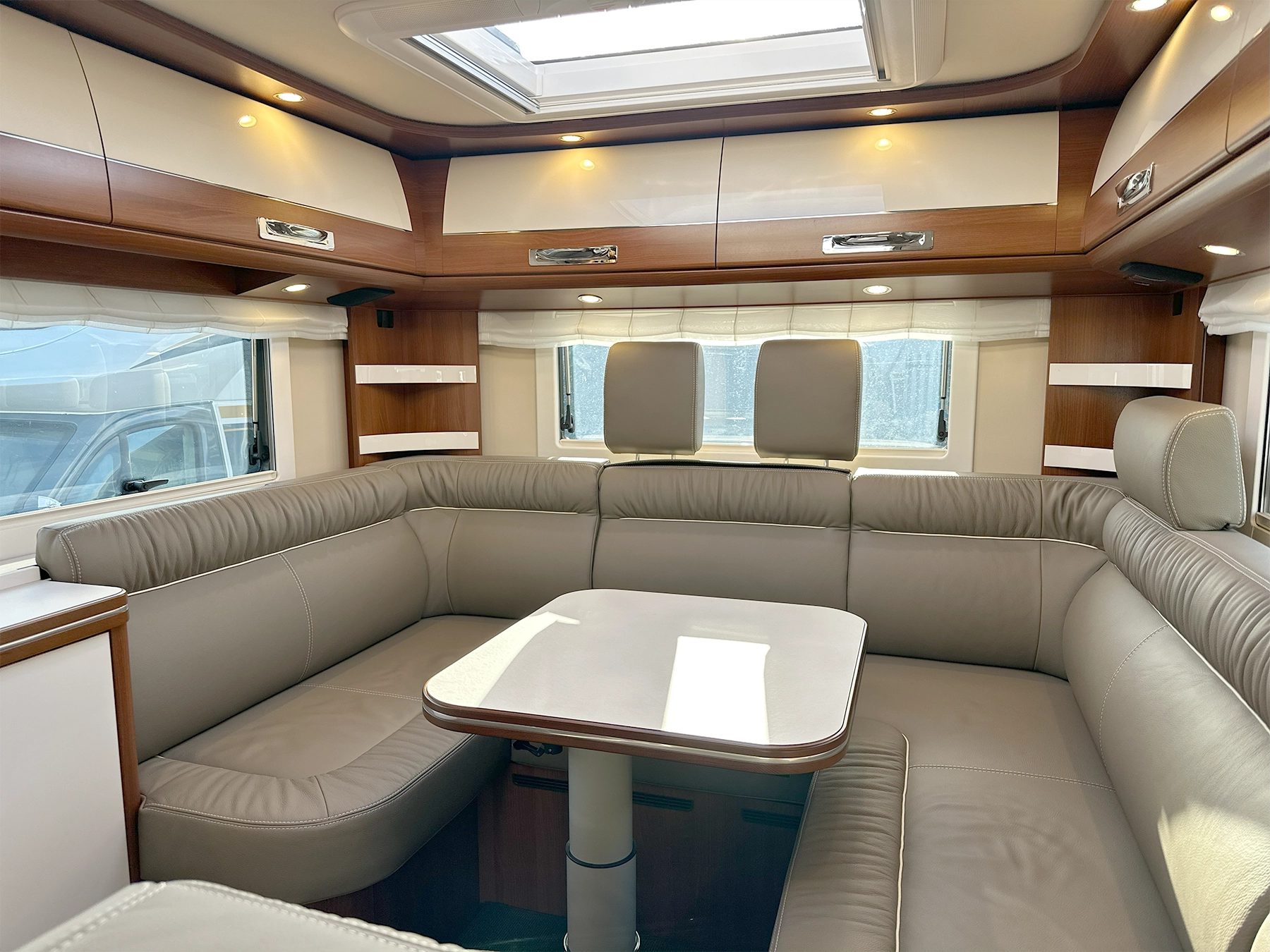

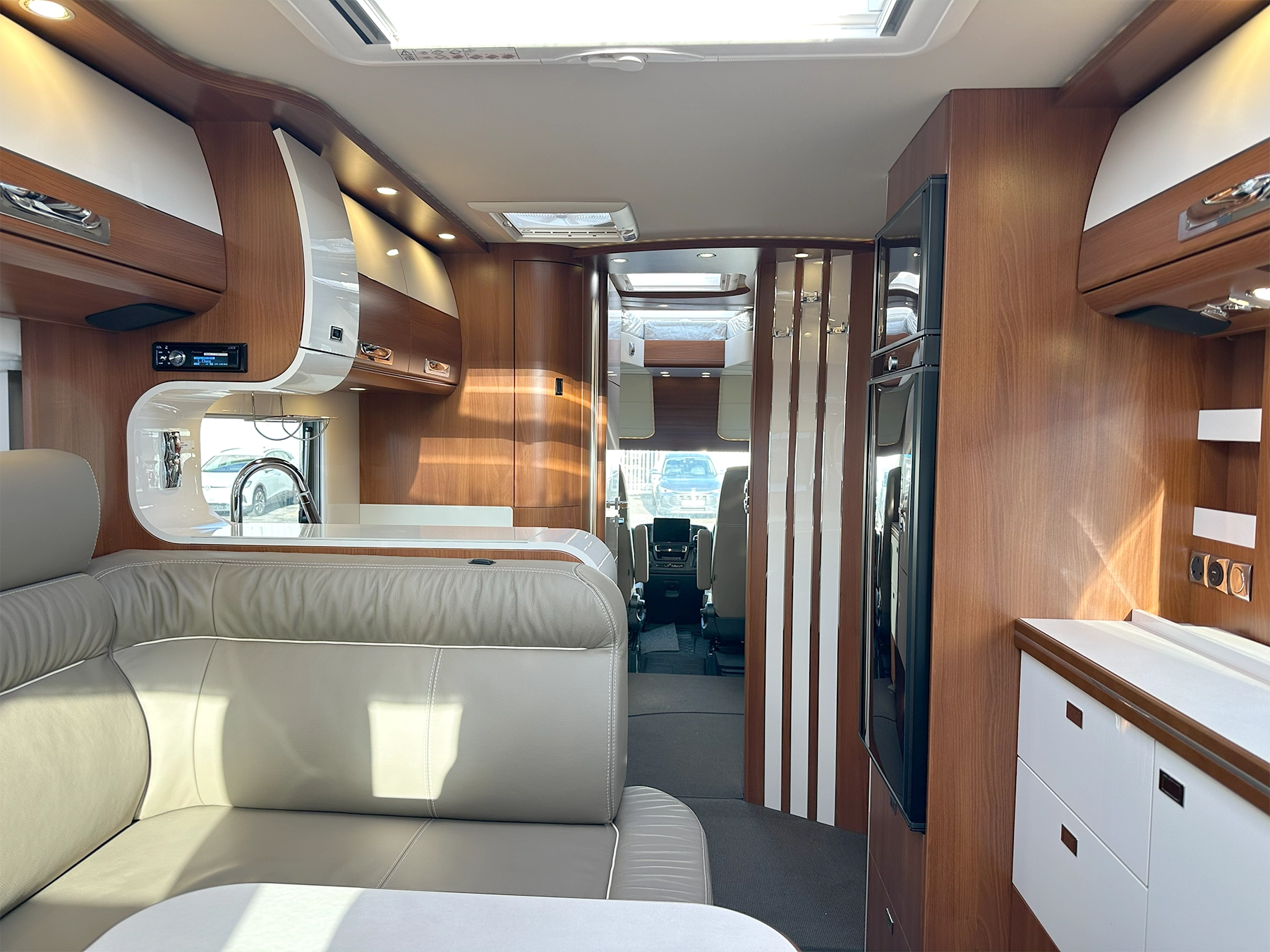

Living Area
- Inside of walls and roof with microfibre, climate-regulating wall lining

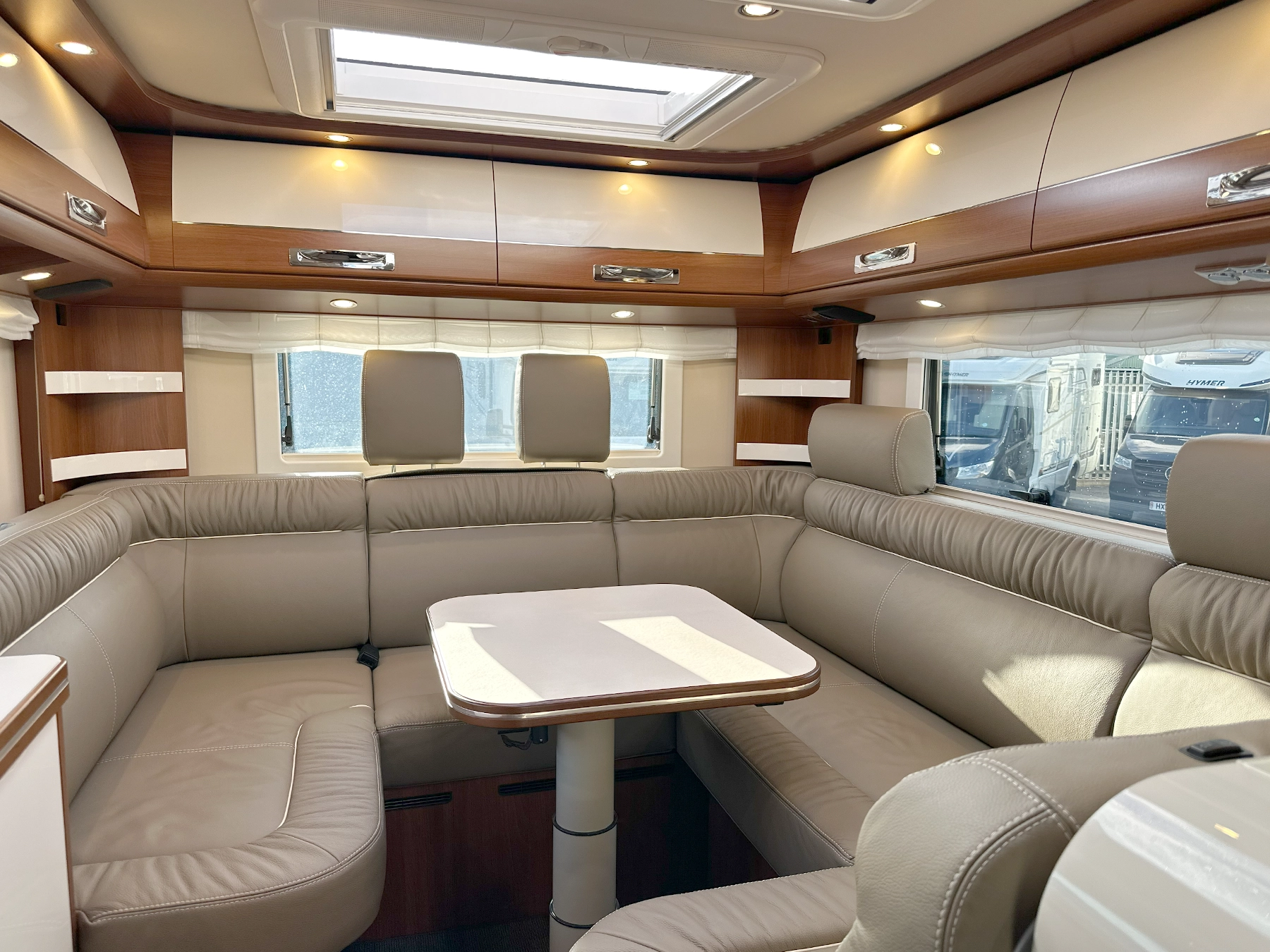

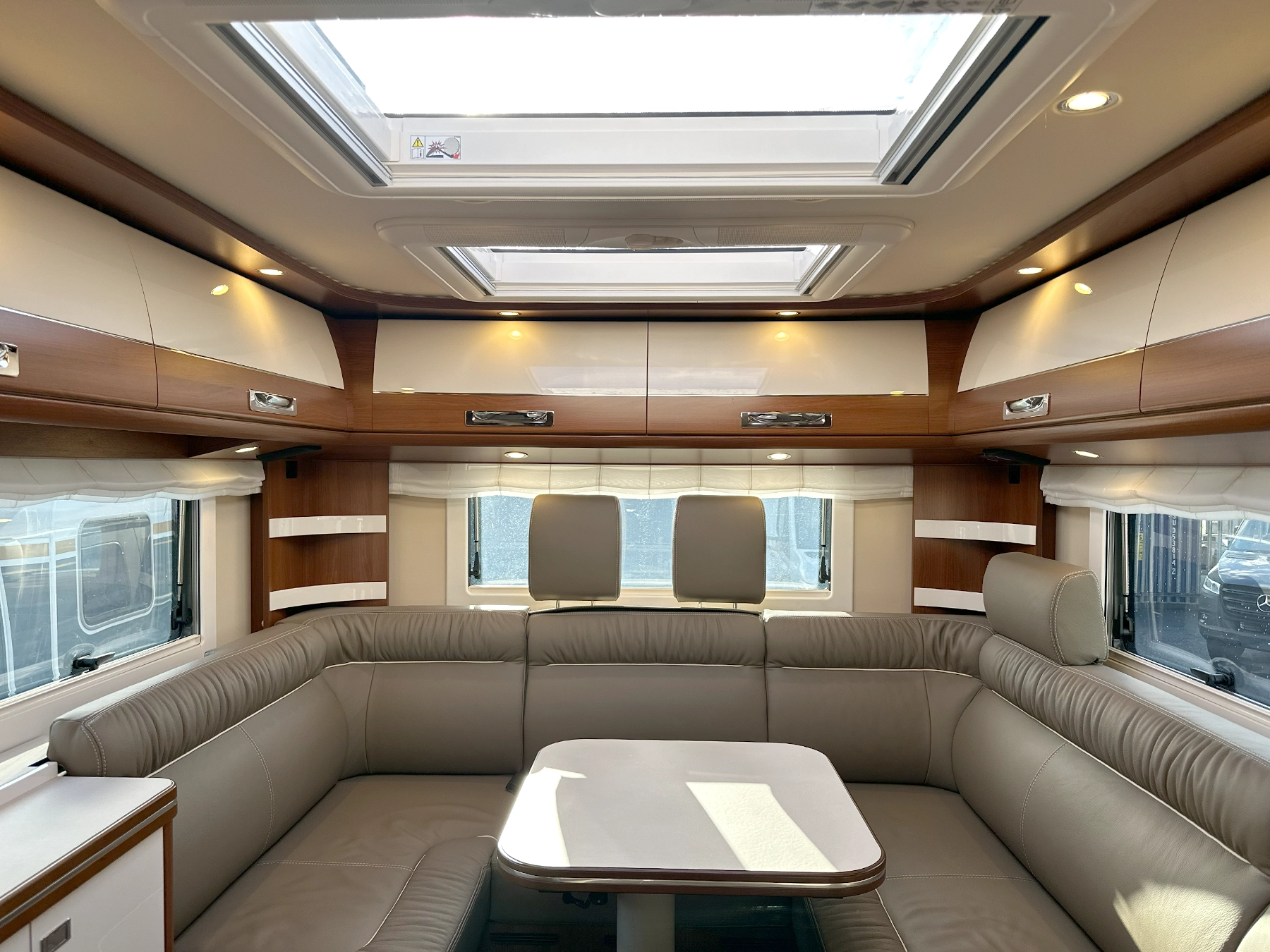

- Heki III panoramic skylight above round lounge seating area

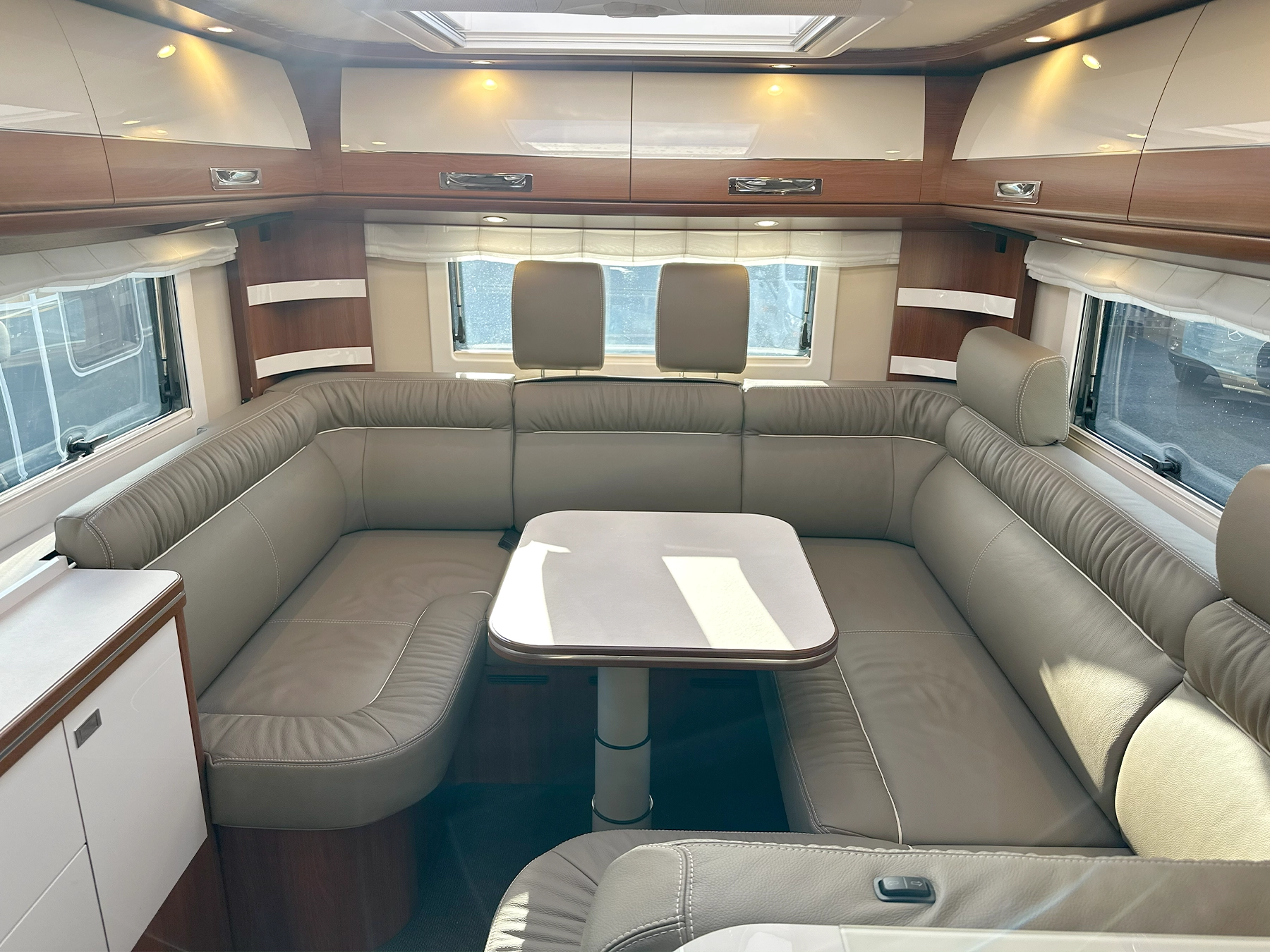

- Three large panoramic windows in round lounge seating area
- Luxury living area table, movable in two directions (via foot pedal)
- Seat padding with multilayer premium foam core and back support function
- ‘Durafix’ double connecting technology: furniture parts screwed together and mortised
- Hatches with soft closing mechanism
- Roman blind system, vertically adjustable and attachable to living area window
- Exclusive living area sideboard with two drawers and large cabinet door

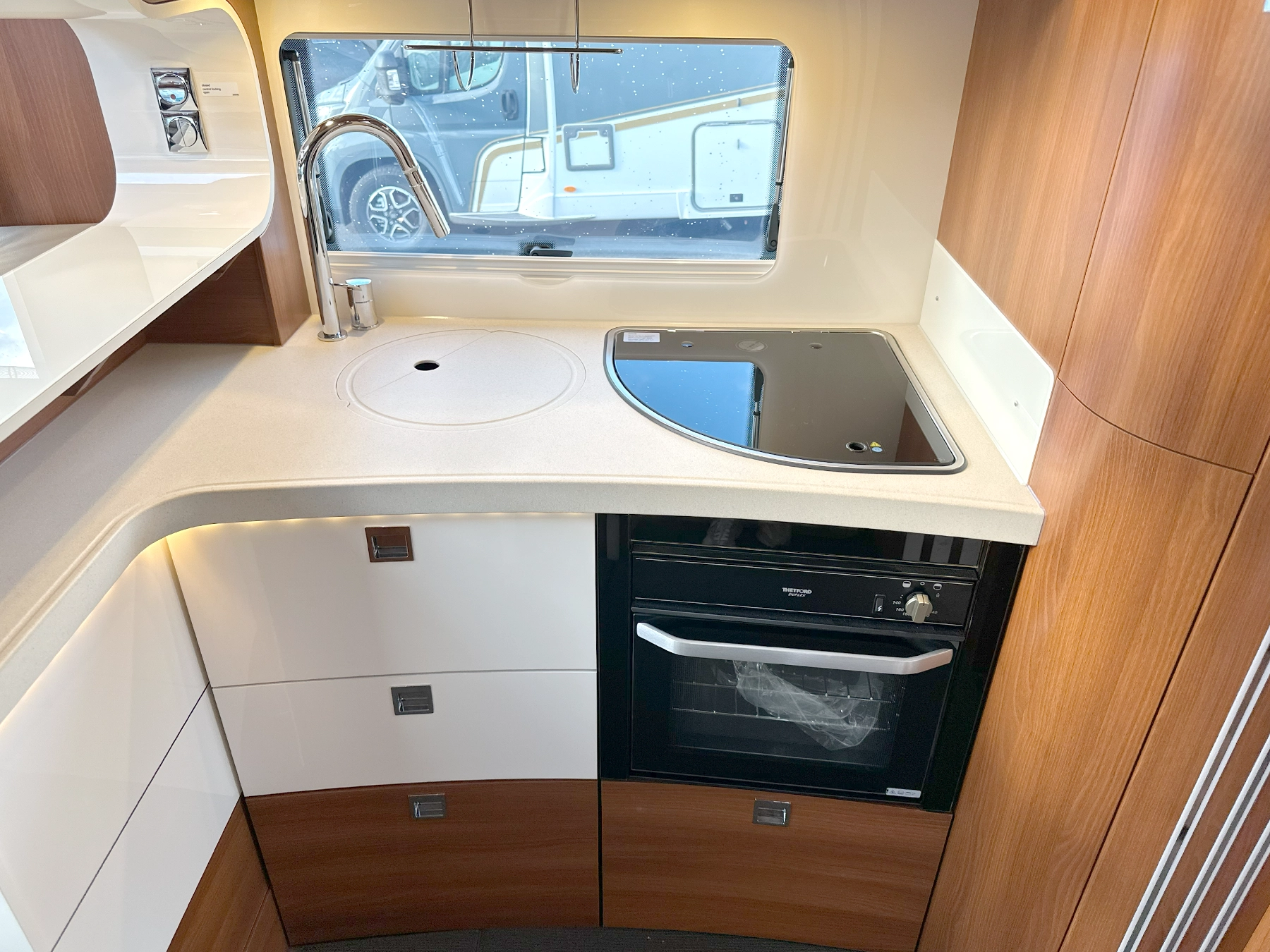

Kitchen
- Raised kitchen countertop with vertical waveform as visual room divider with a large storage cabinet and sliding door running in the opposite direction
- Kitchen worktop surface in ‘Savannah’ finish with Corian drip edge
- Worktop lit from underneath with LED light strip
- ‘Easy glide’ kitchen drawers with roller slides and soft-close mechanism
- Two separate waste bins integrated in kitchen countertop
- Electric central locking in the kitchen area including kitchen countertop, kitchen drawers and kitchen overhead storage cabinets
- Separate cutlery drawer with organiser, bottle holder

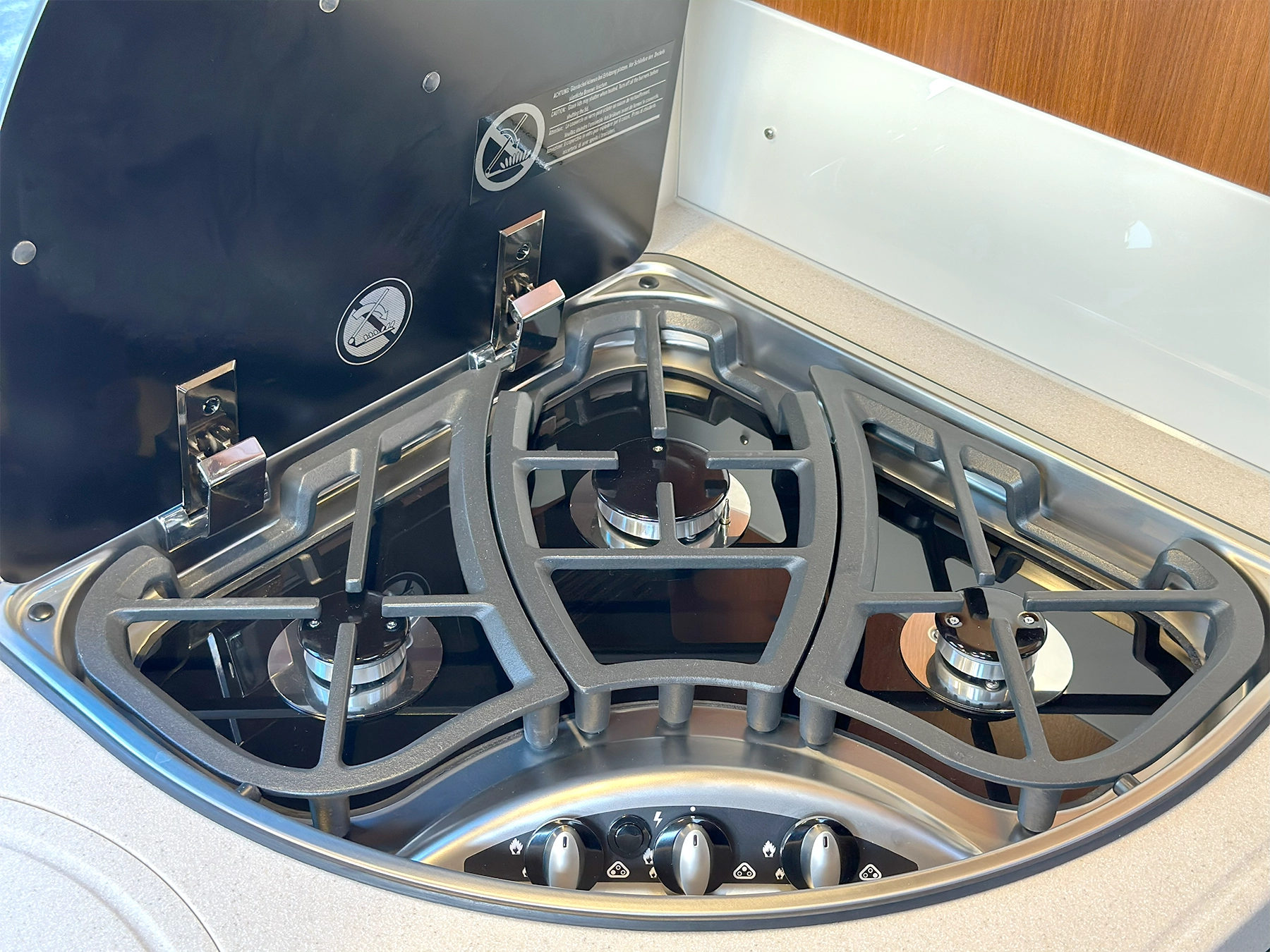

- 3-ring hob with glass cover, robust cast iron pan support and easy-clean glass base

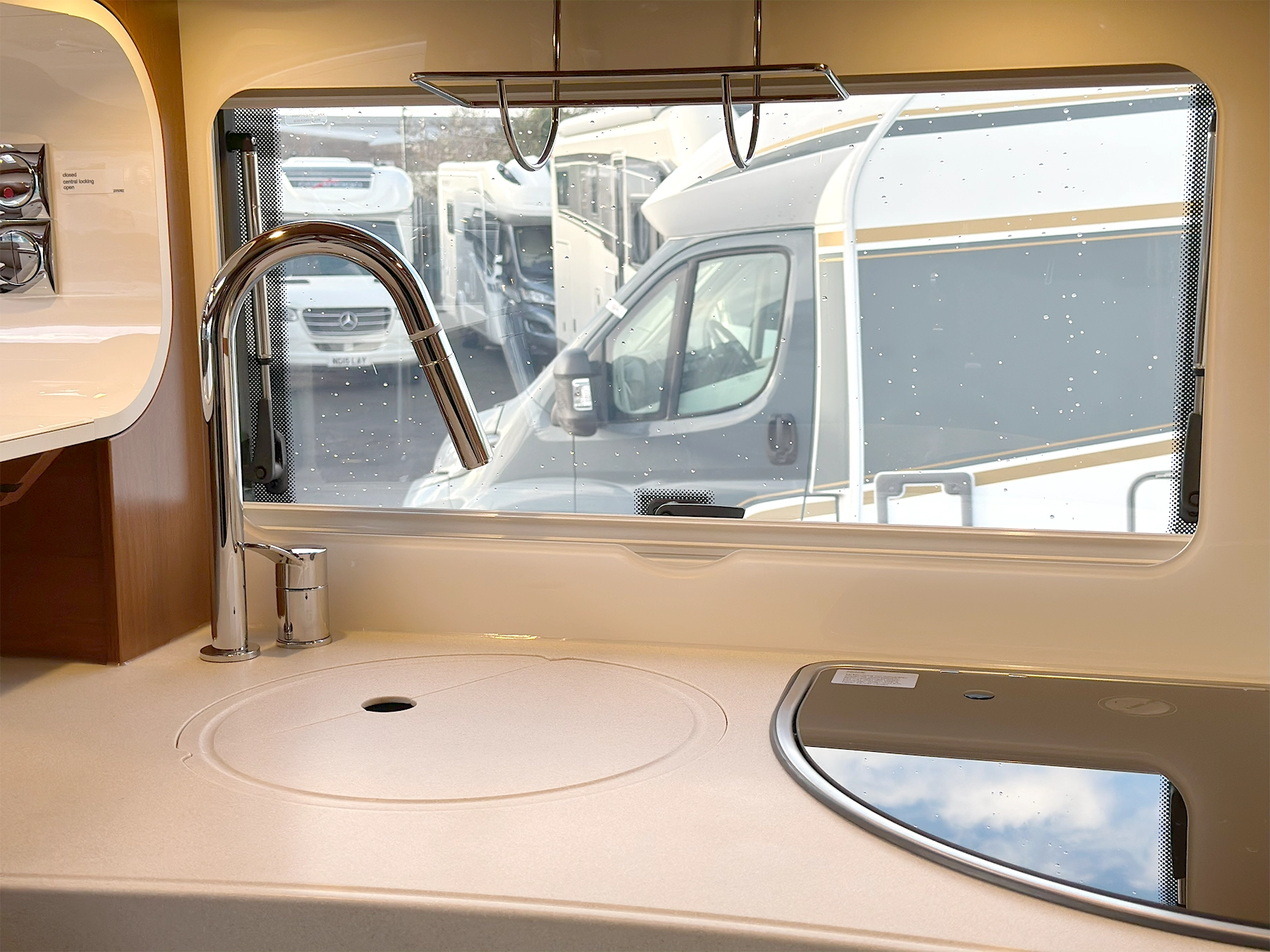

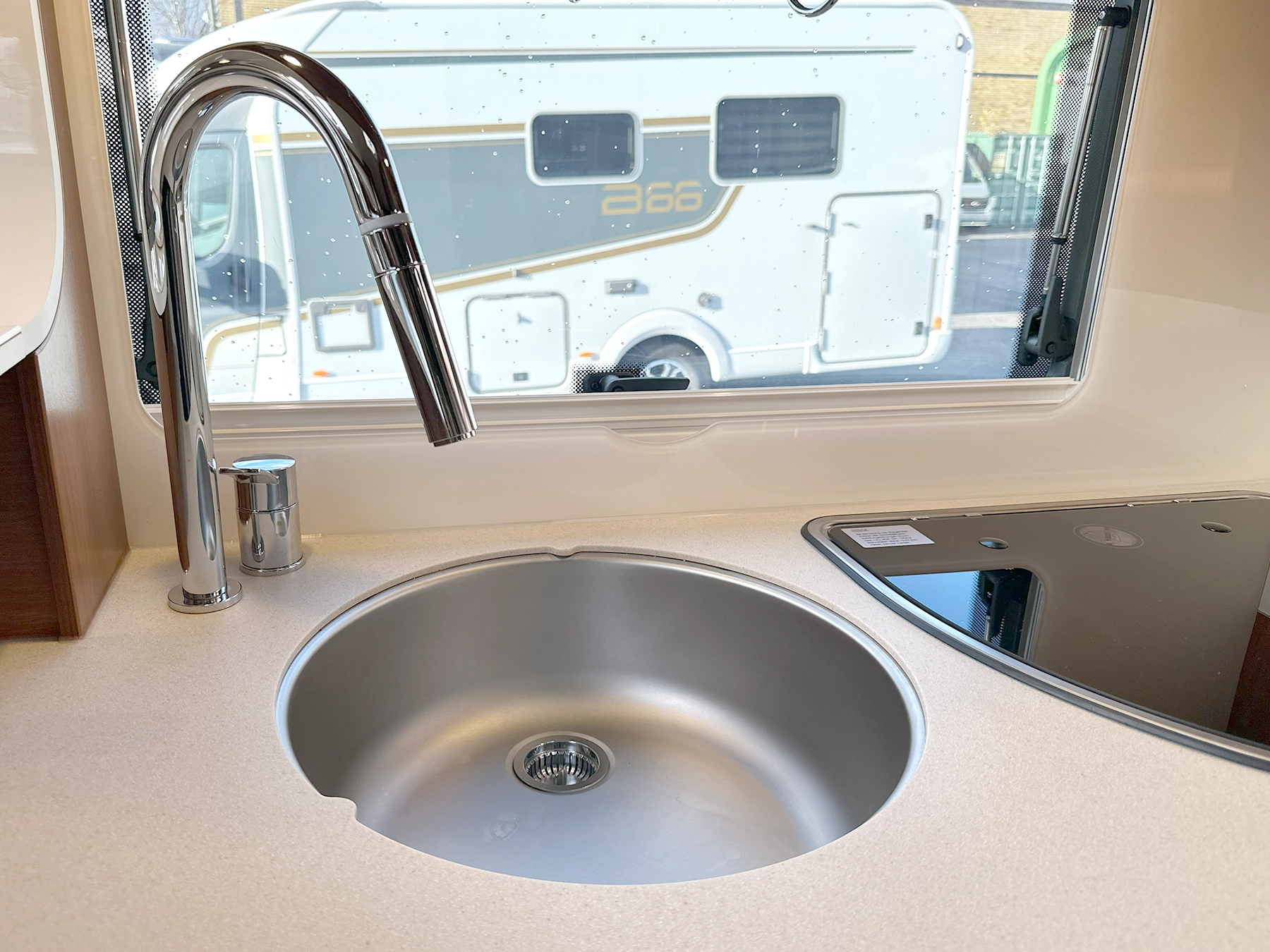

- Round stainless steel sink embedded in work surface with multifunctional sink cover including wall holder for increasing size of work surface
- Designer water tap in metal with pull-out spray head
- Kitchen rear wall in cream decorative glass

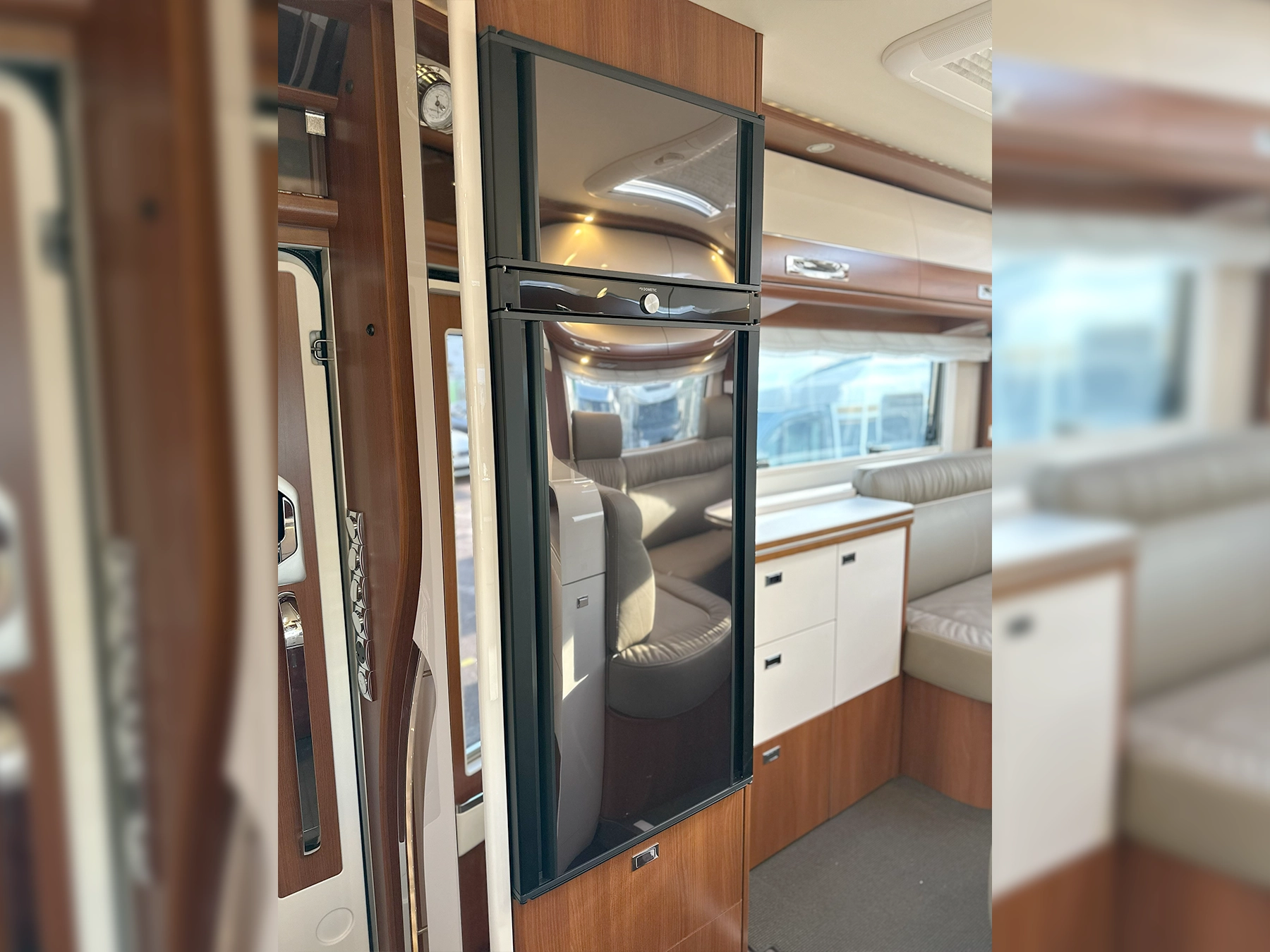

- Large fridge with door opening on both sides, separate freezer compartment, automatic energy source selection 12 V / 230 V / gas operation

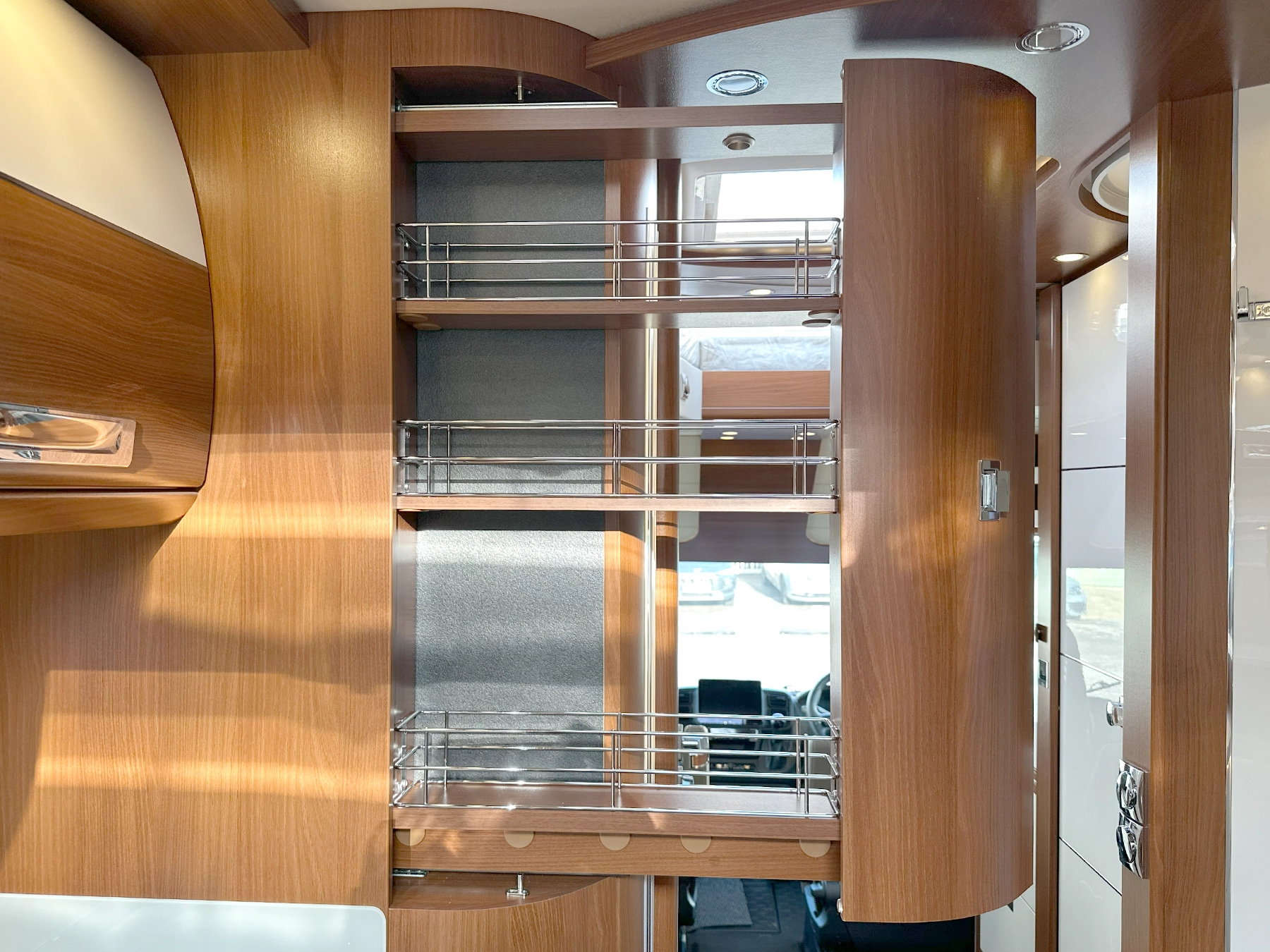

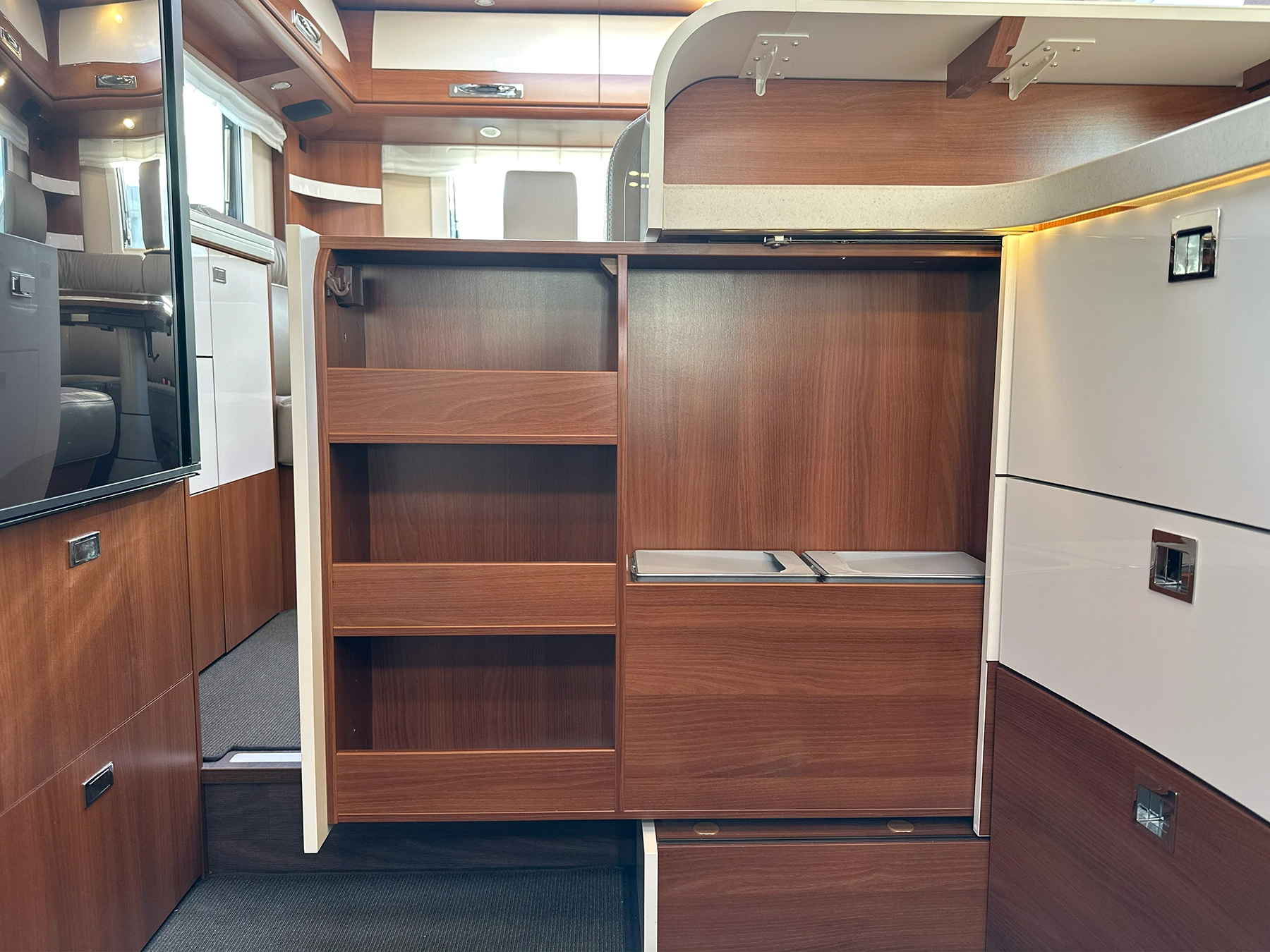

- Slide-out storage cabinet
- Electric roof light fan
Bathroom and Dressing Room
- Dressing room & room partitioning
  - Dressing room incl. Mini-Heki skylight with sliding door made from solid wood in front of the driver’s cab – luxury bathroom door as room partition from living/kitchen area
  - Linen cupboard with three drawers
  - Floor-to-ceiling wardrobe with two clothes rails and shelf integrated in the dressing room

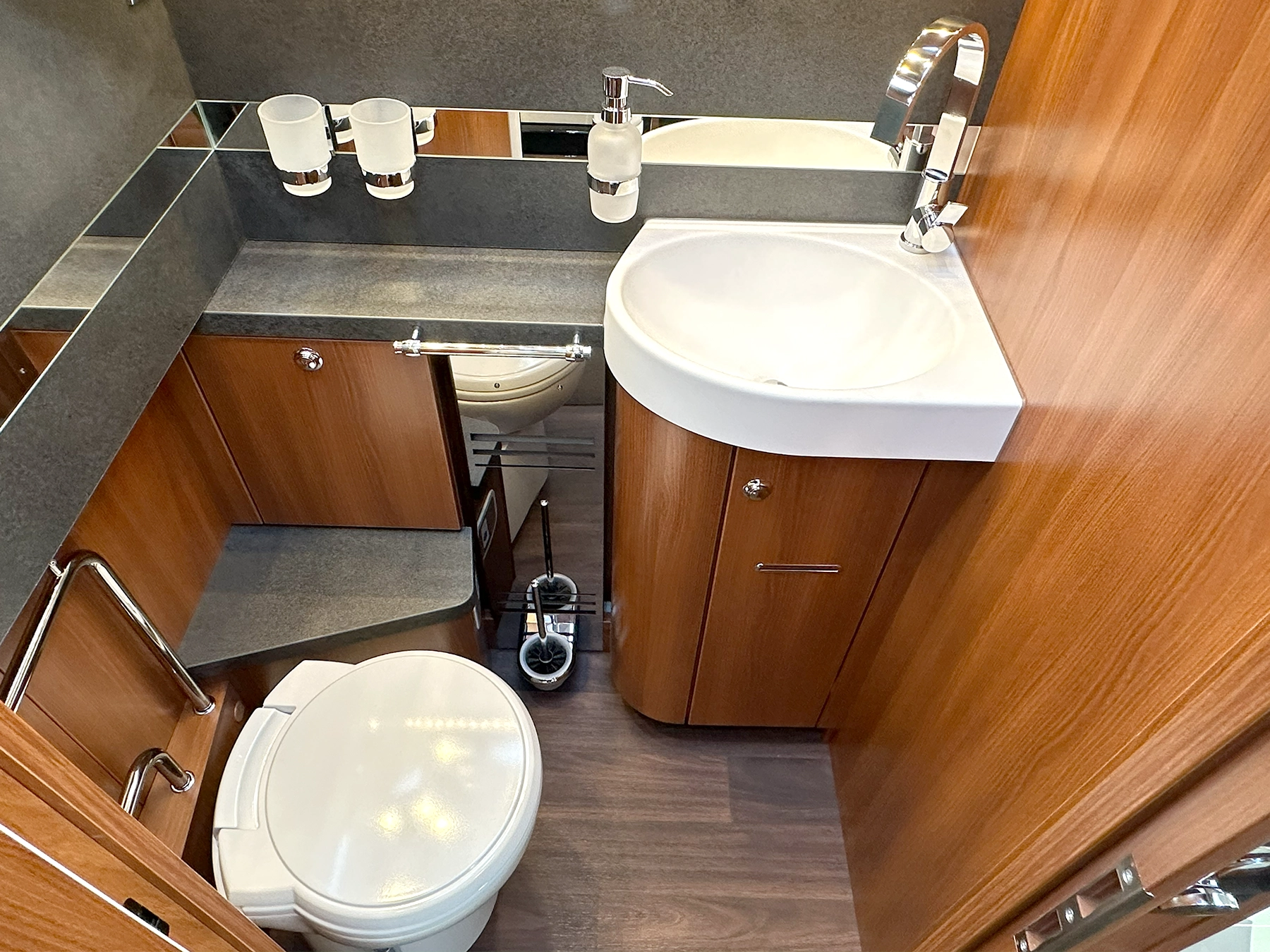

- Luxury bathroom with separate shower room
  - Waterproof shower insert in same design as living area floor

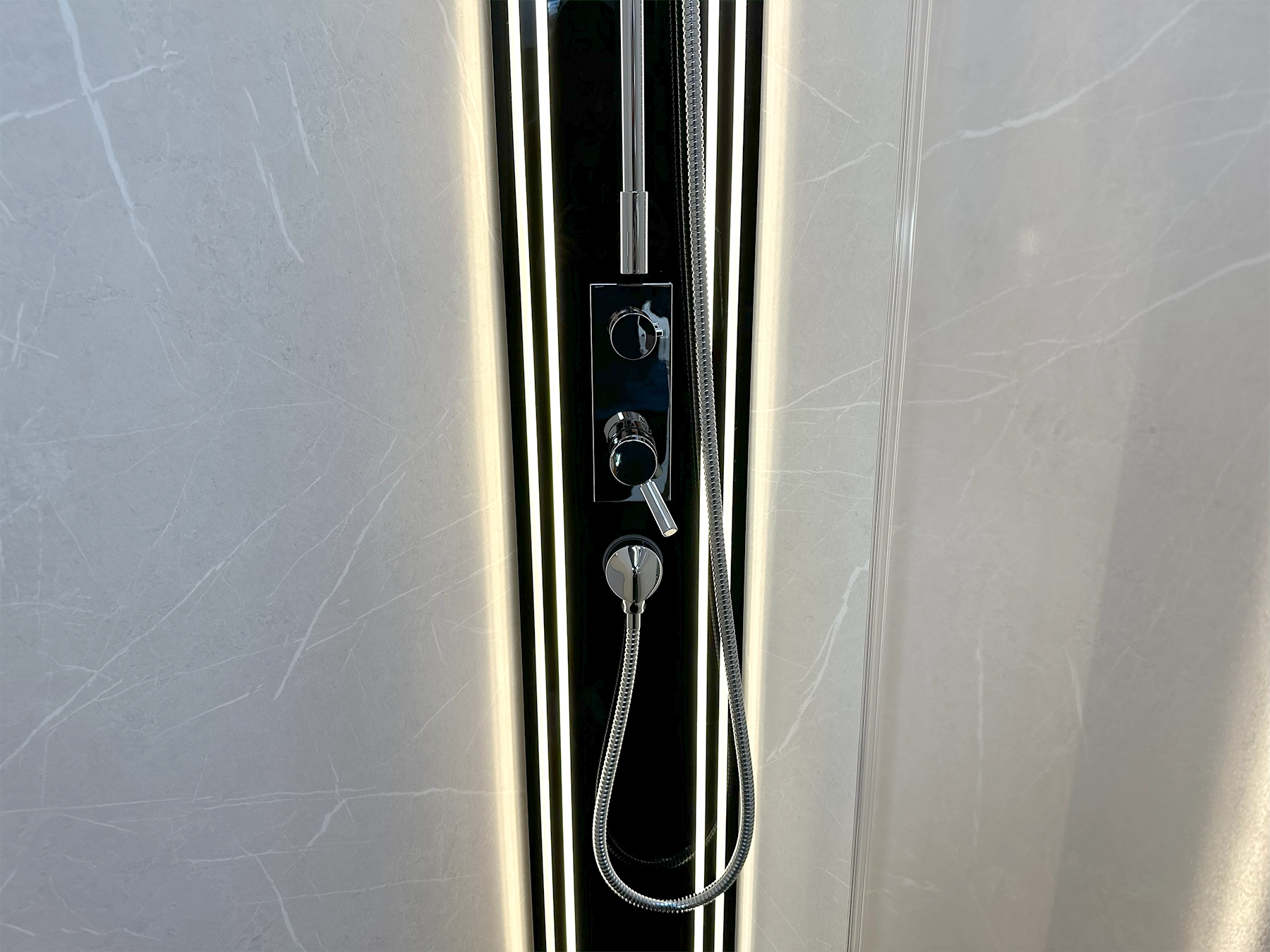

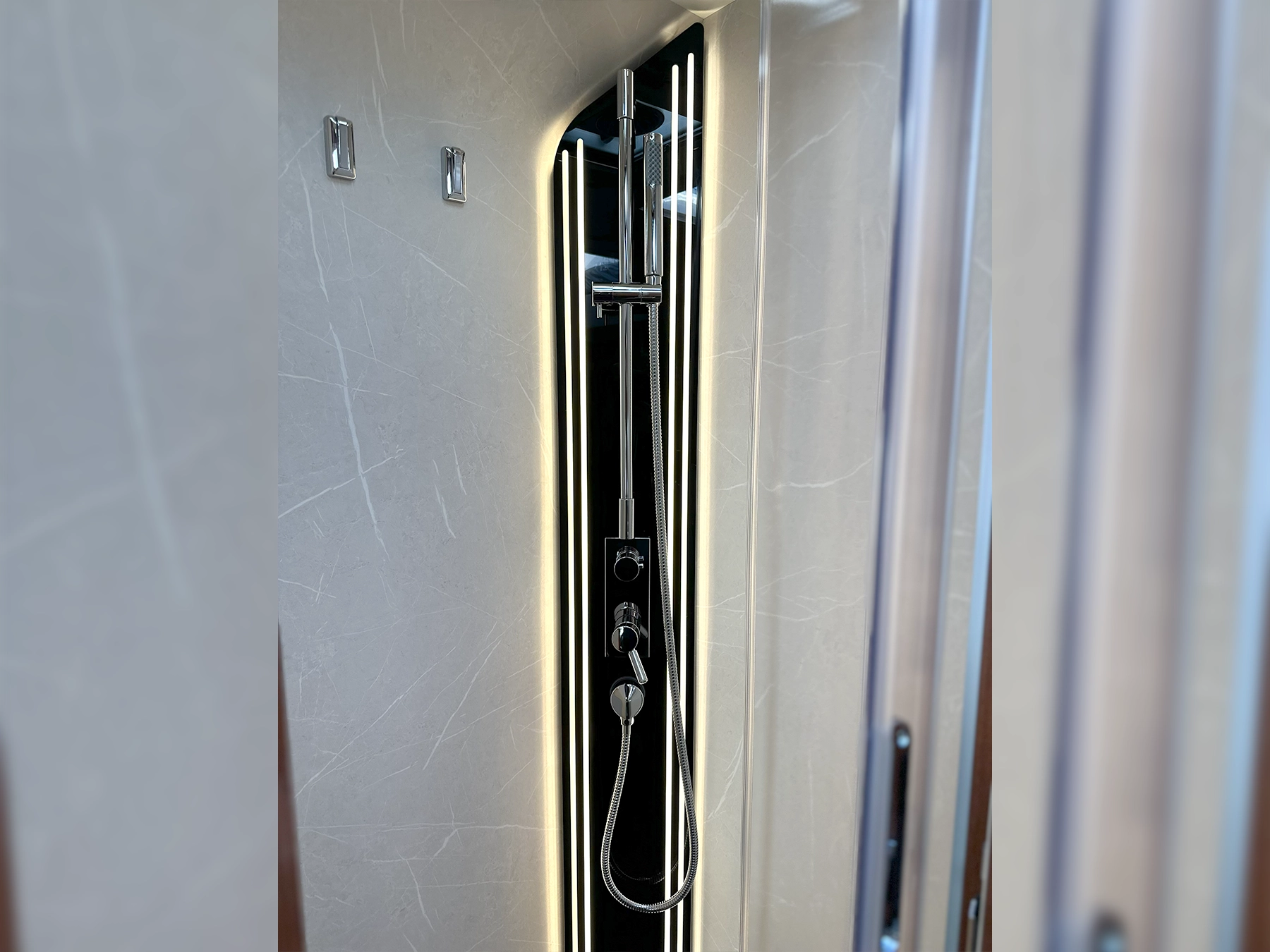

  - Rain shower with roof light, standing height 1.98 m
  - Shower tray and shower corner pillar in dark granite look, shower walls in marble design incl. clothes hooks

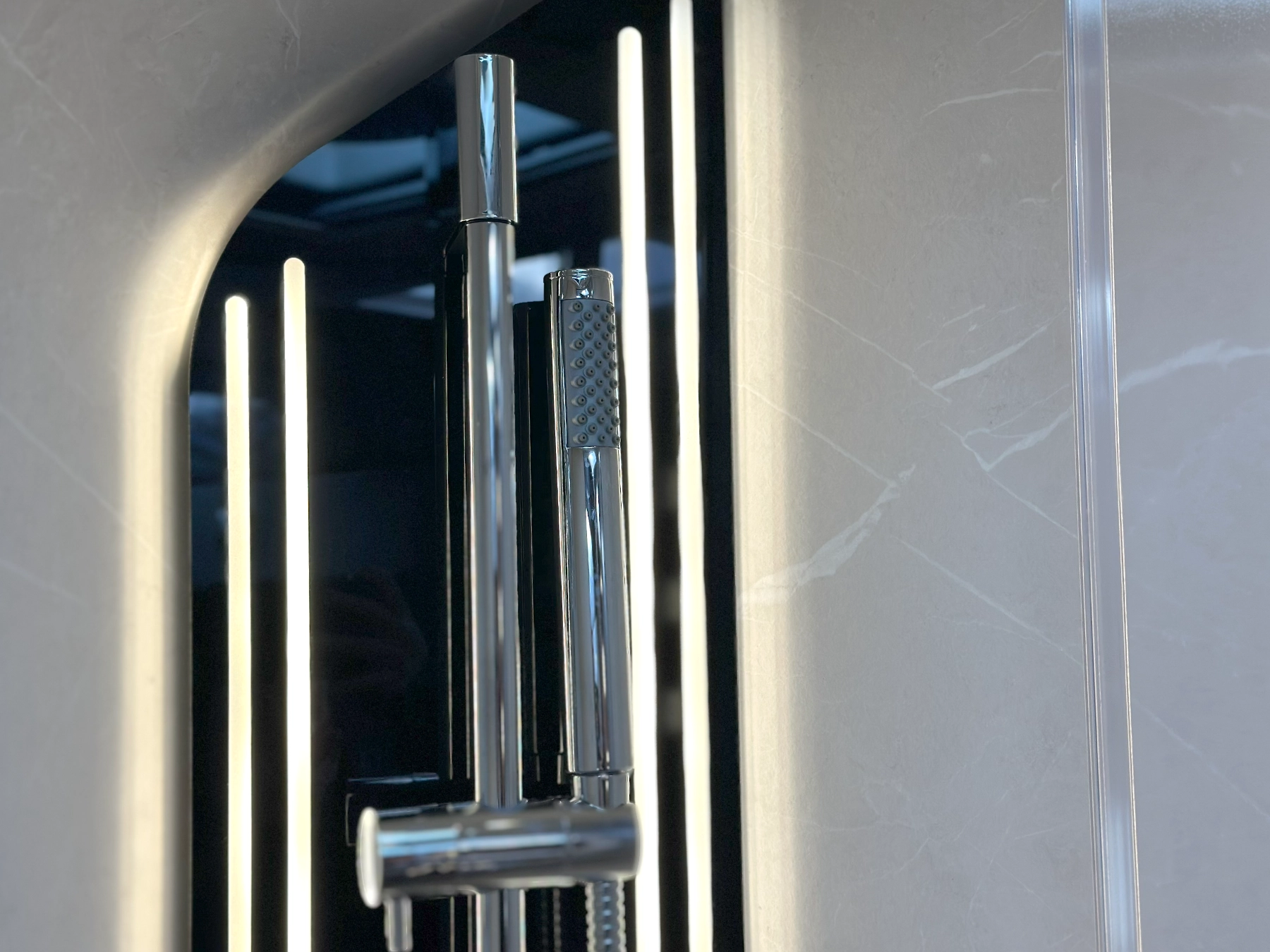

  - Shower head height-adjustable on chrome rail

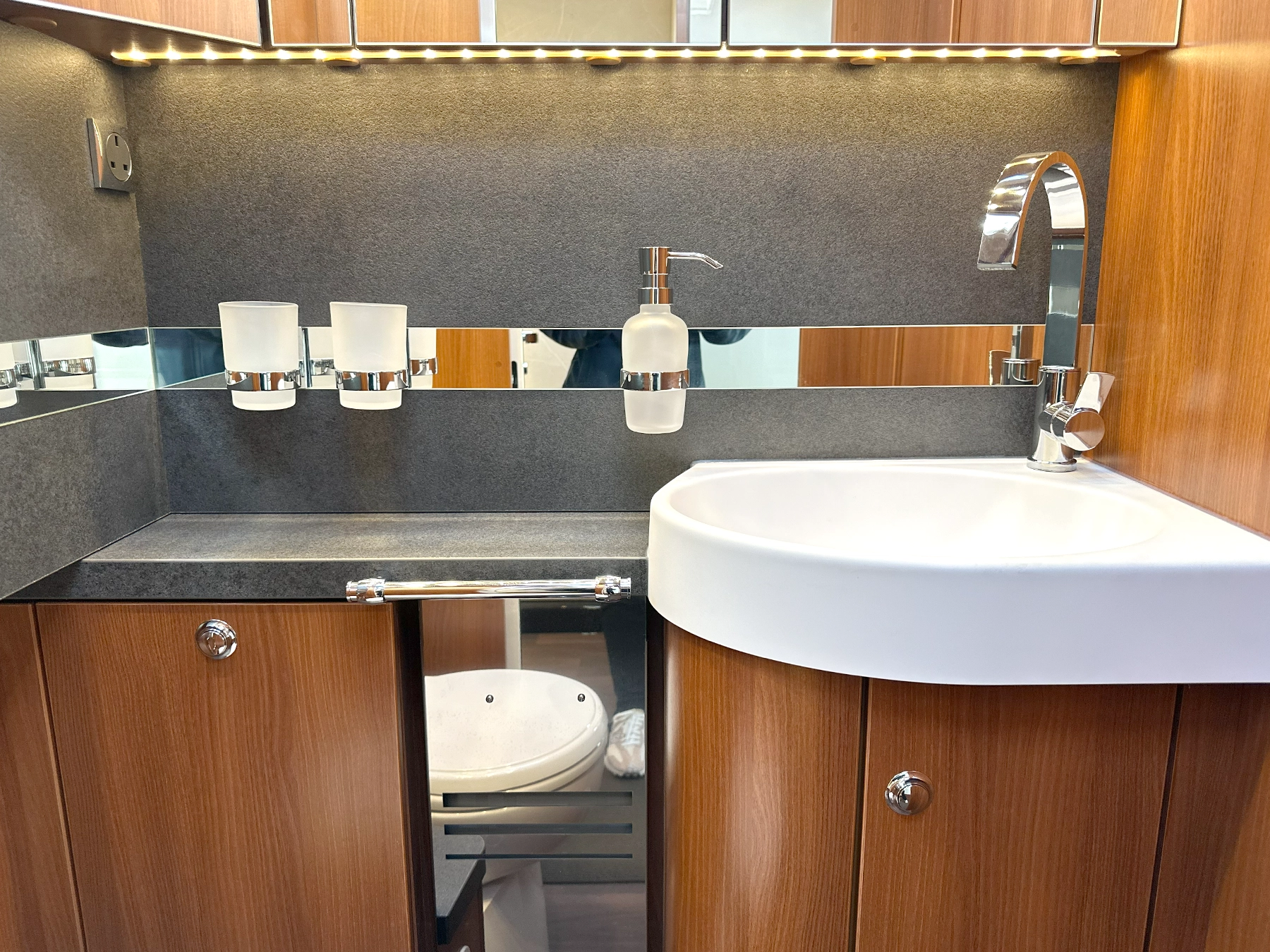

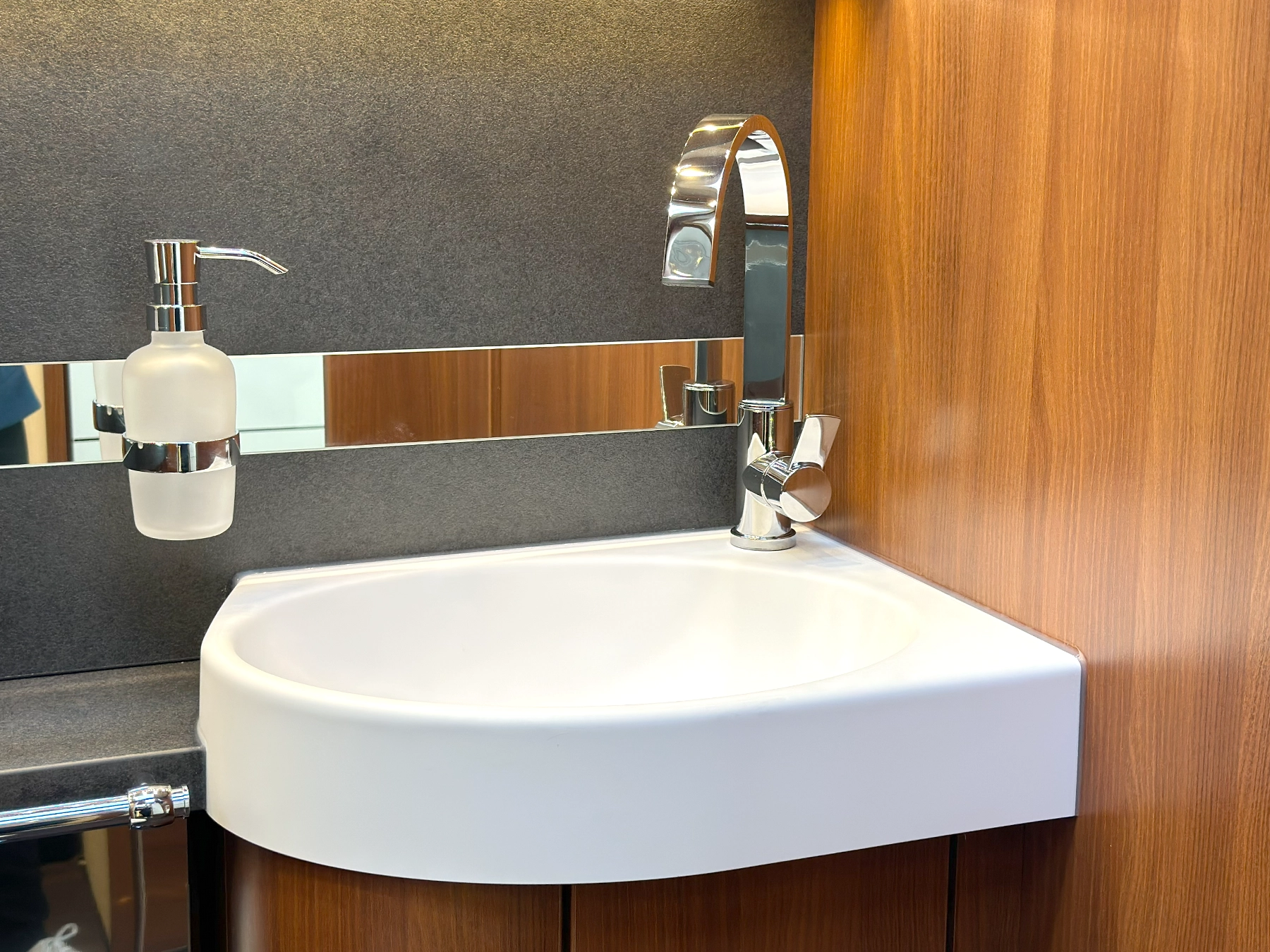

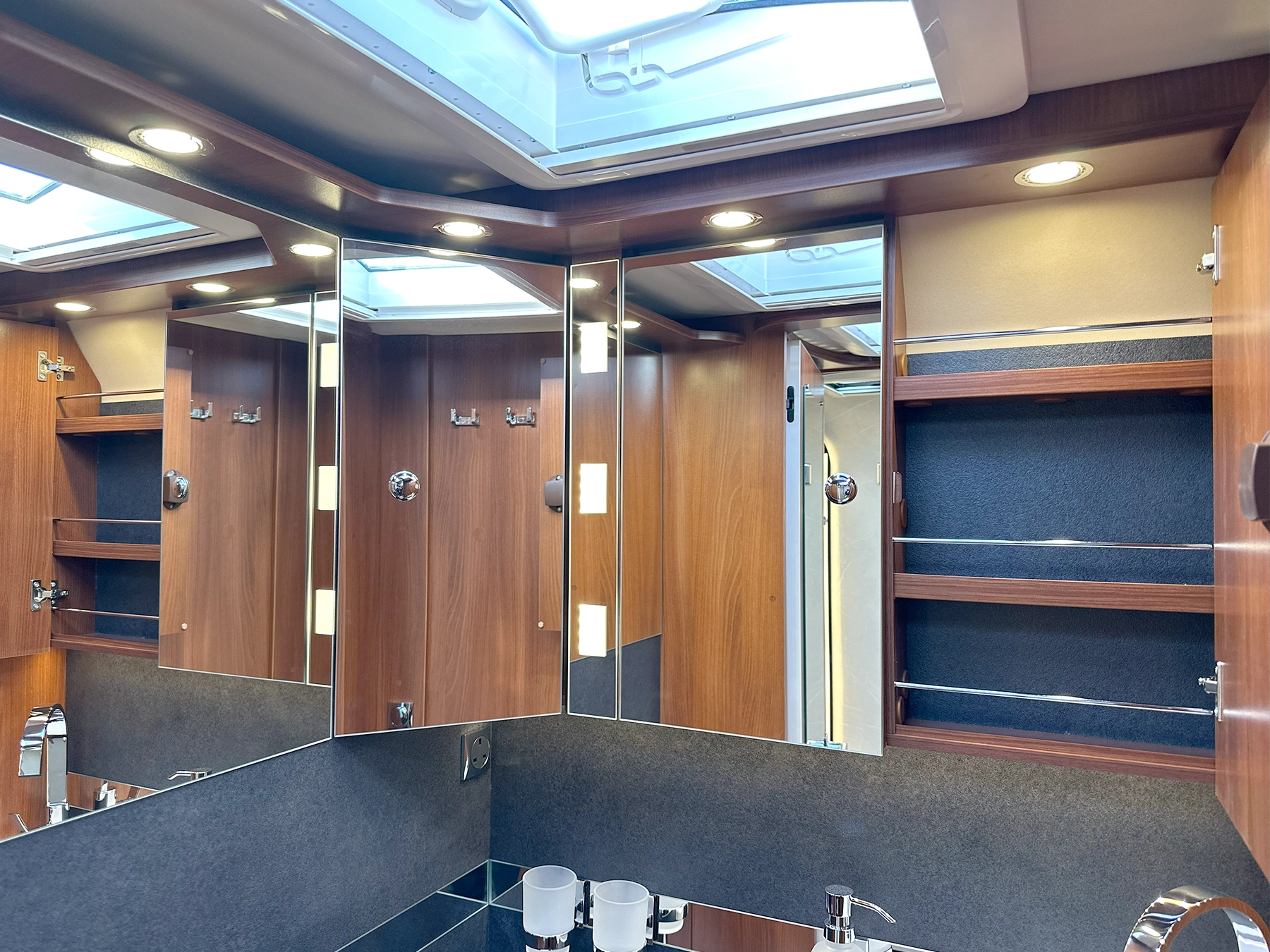

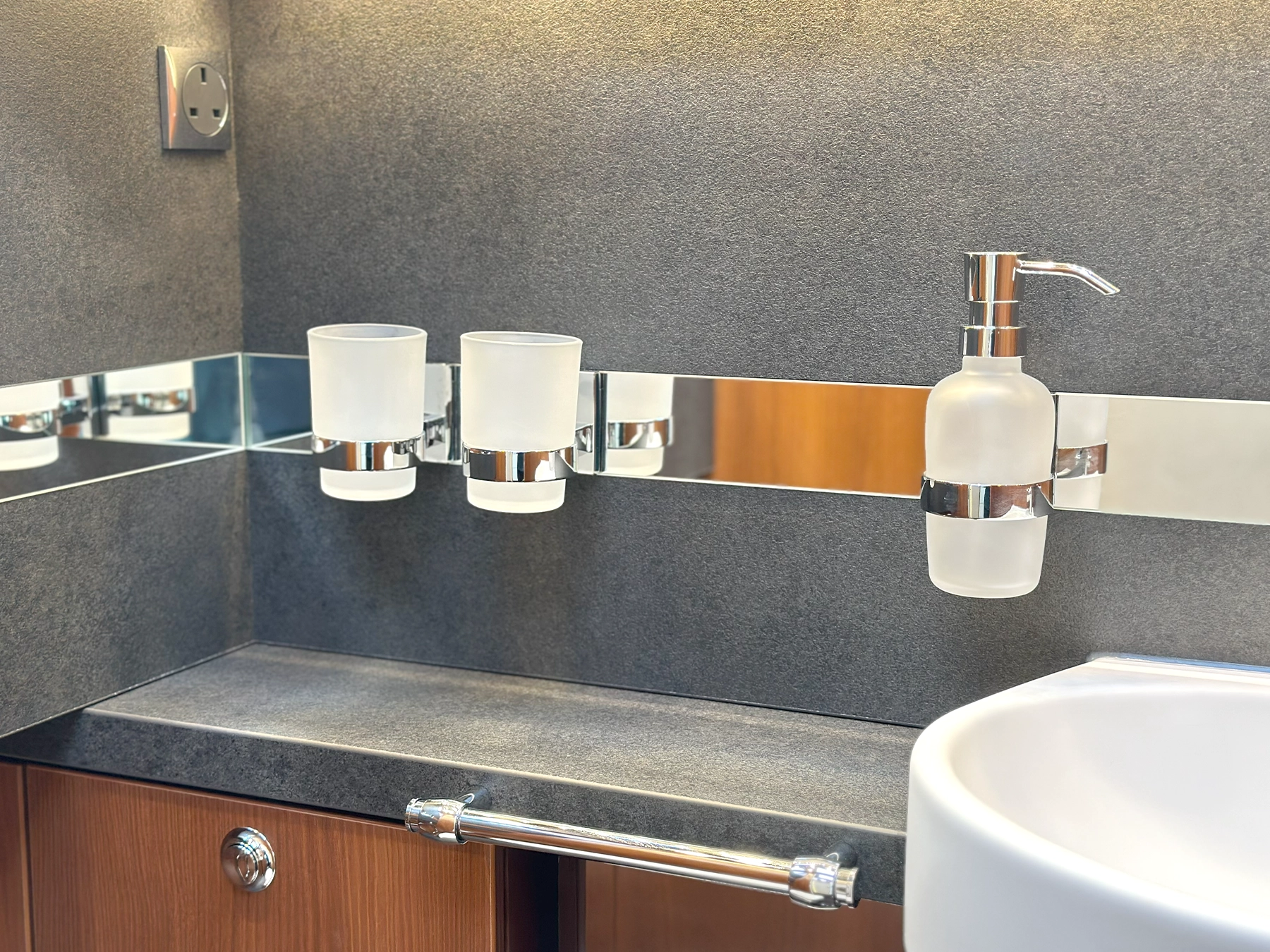

  - Wash stand base unit with toilet roll holder, mirrored storage cabinet
Sleeping

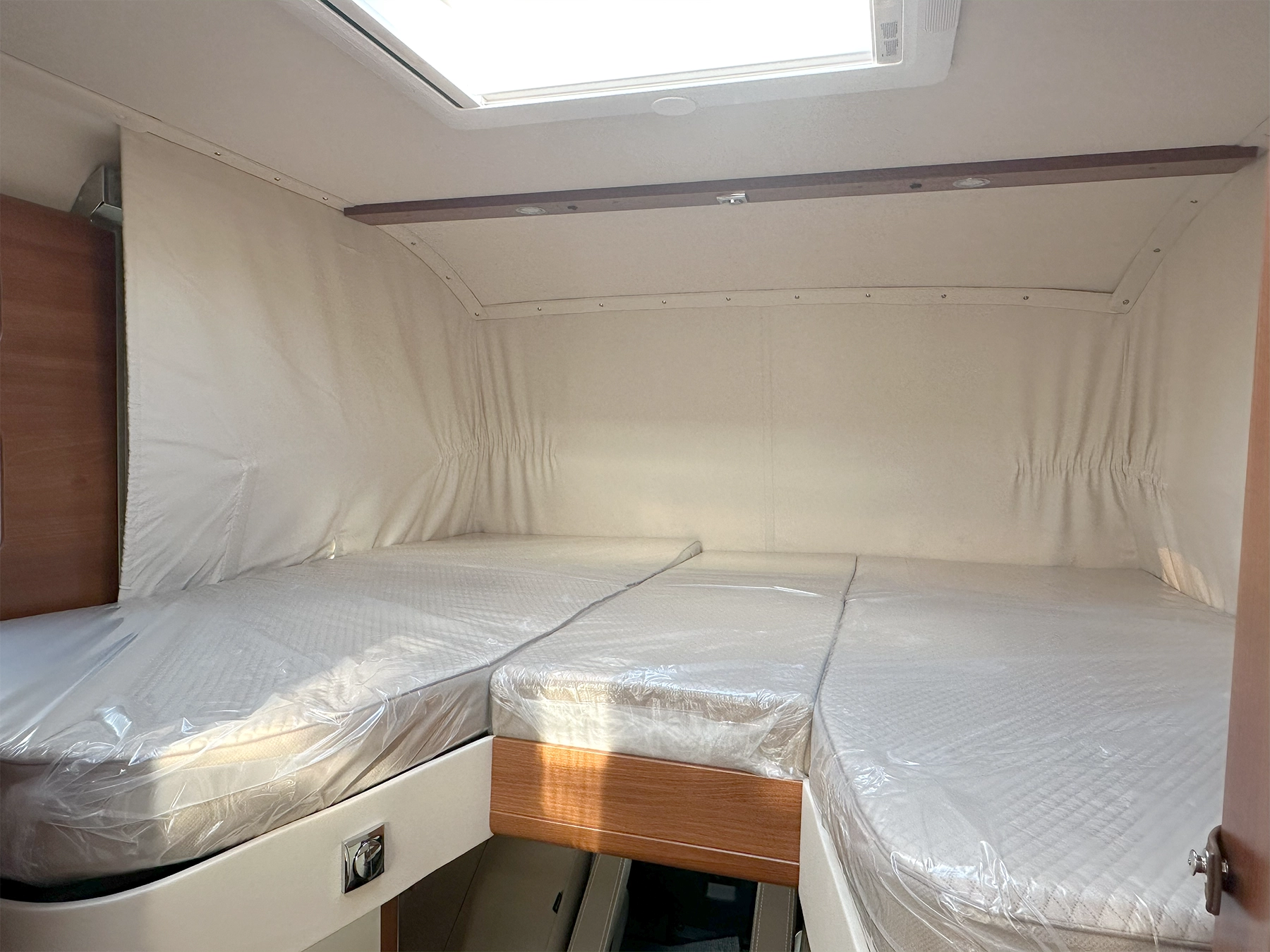

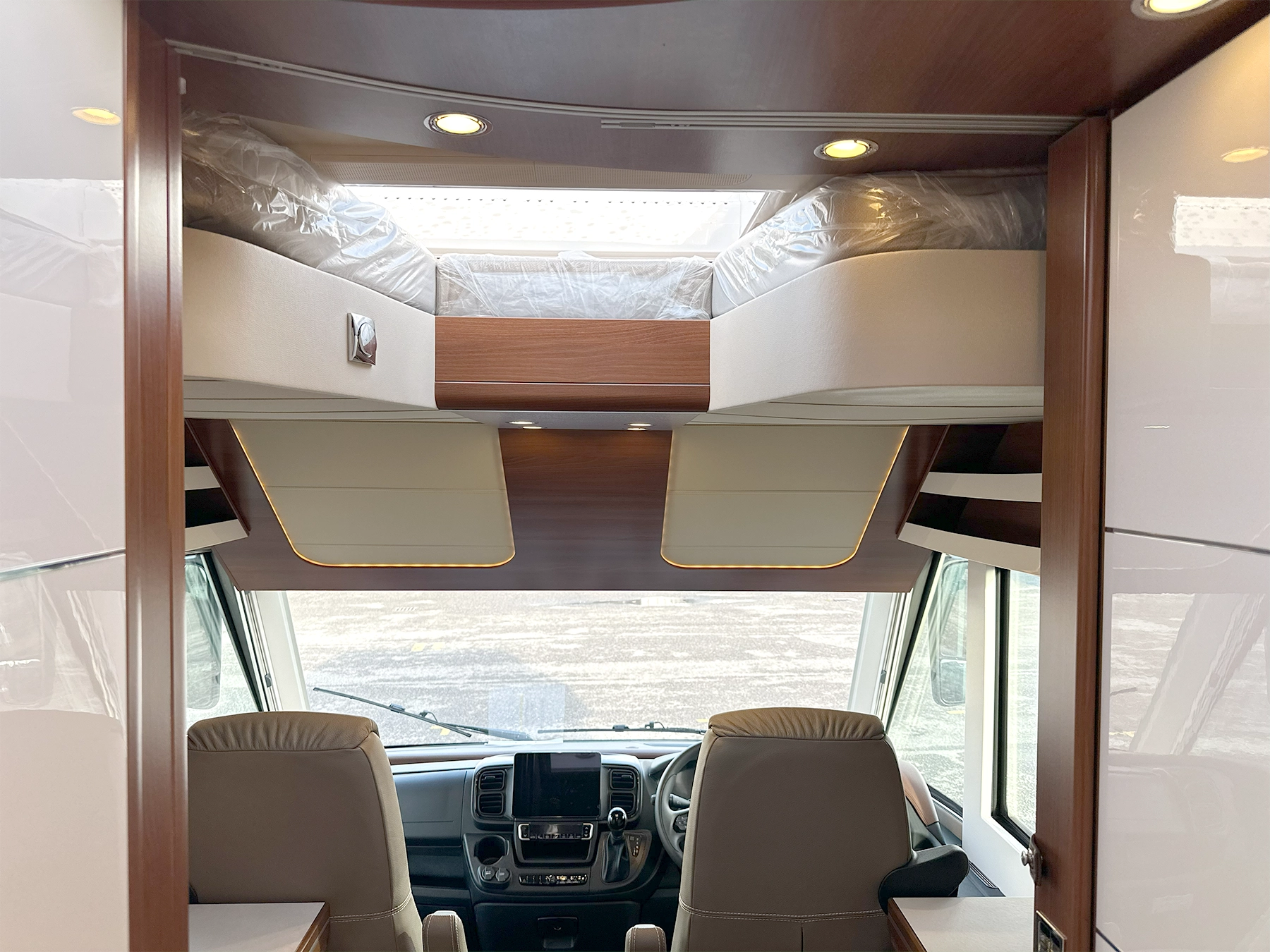

- Electrically operated drop-down single bed above driver’s cab area
  - Carawinx medically recommended point elastic sleeping system, heated and ventilated with 7-zone quality cold foam mattress
  - Extra-low positioning of bed with wobble-free support: access via pull-out steps at side with extra-high headroom
  - Open bookshelf beneath drop-down bed including LED lighting
  - Continuous sleeping area with sleeping lengths of up to 200 cm, width 210 cm
  - Sliding door beneath drop-down bed for insulation against cold from driver’s cab
  - Side windows on driver and passenger side in driver’s cab
  - Mini-Heki skylight
On-Board Technology
- Water
  - Fresh water and waste water tank in heated double floor, cleaning opening via living area floor hatches or scooter garage (depending on model)
  - Ball-type drain valve positioned in the double floor, protected from frost (central water drain)
  - Low-maintenance pressurised water pump system
  - Waste water hose set with bayonet connection
- Gas
  - External gas bottle compartment in low position
  - Holds 2 x 11 kg gas bottles
  - Gas isolation taps in kitchen area
- Electrical system
  - Easily accessible electrical centre in scooter garage, including charger / fuses / fuse protection, 36 A automatic charger (2×18 A), electric control, automatic switch-off when voltage too low, including starter battery charging function
  - Heated battery centre, 150 Ah Lithium battery, in double floor, access via double floor storage compartment on passenger’s side, with main power switch
  - Multifunctional panel behind technical panel above main cabin door
  - 230 V socket in seating area, entrance area, kitchen, bathroom, scooter garage
  - 12 V socket in driver’s cab (Fiat: 2 x), scooter garage
  - USB socket in driver’s cab (Fiat: 2 x), sleeping area
- Innovative lighting concept
  - Lighting system with numerous LED spotlights in driver’s cab, kitchen, living area and dressing room with stepless dimming
  - LED spotlights in living area above round lounge seating area
  - Ceiling canopy with additional LED spotlights and indirect LED lighting
  - LED mood light with background lighting in the entrance area
  - LED mood light with backlighting in round bathroom wall
  - Night lighting in floor with LED spotlights, can be switched on from entrance and seating area
- TV

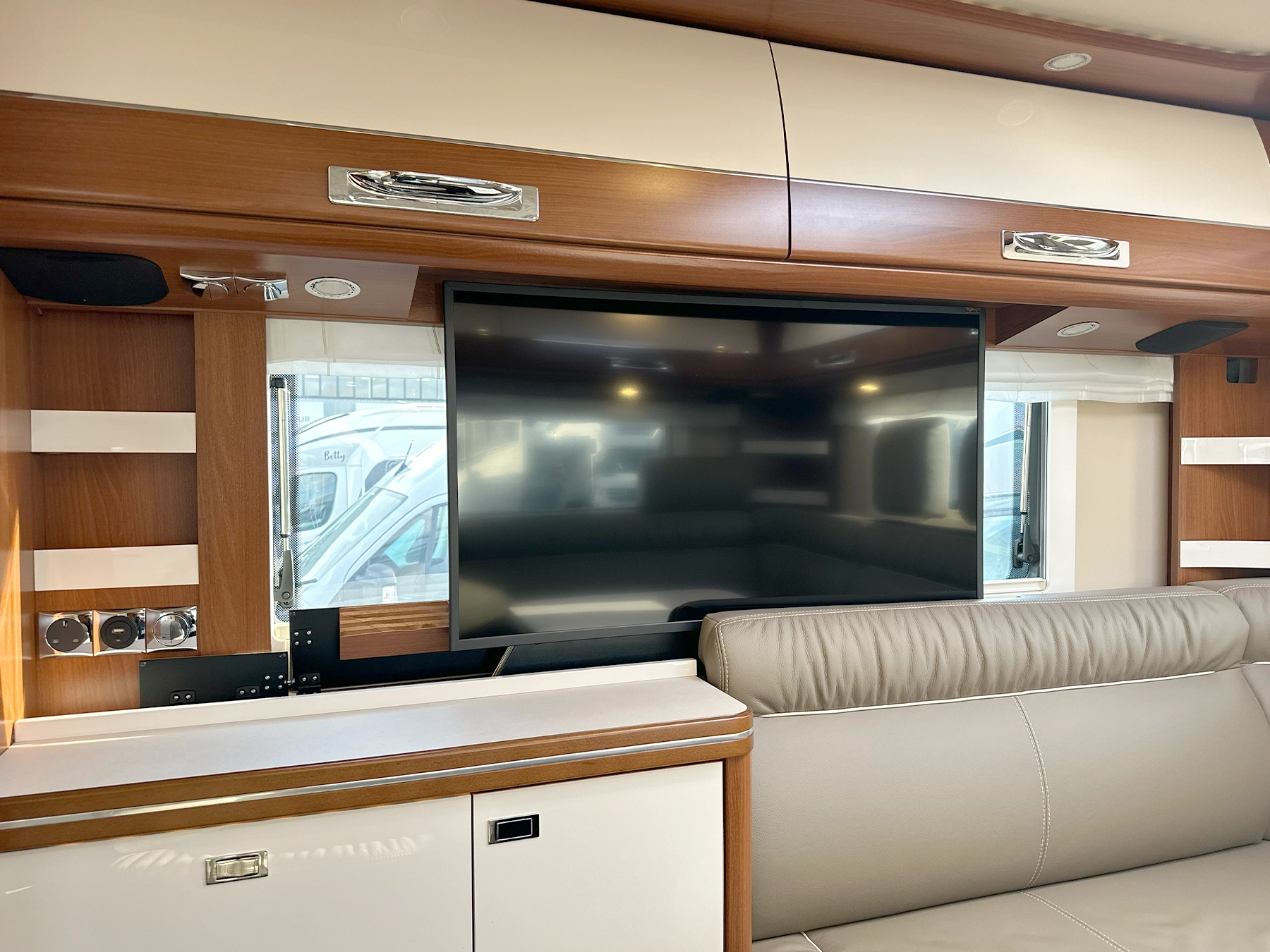

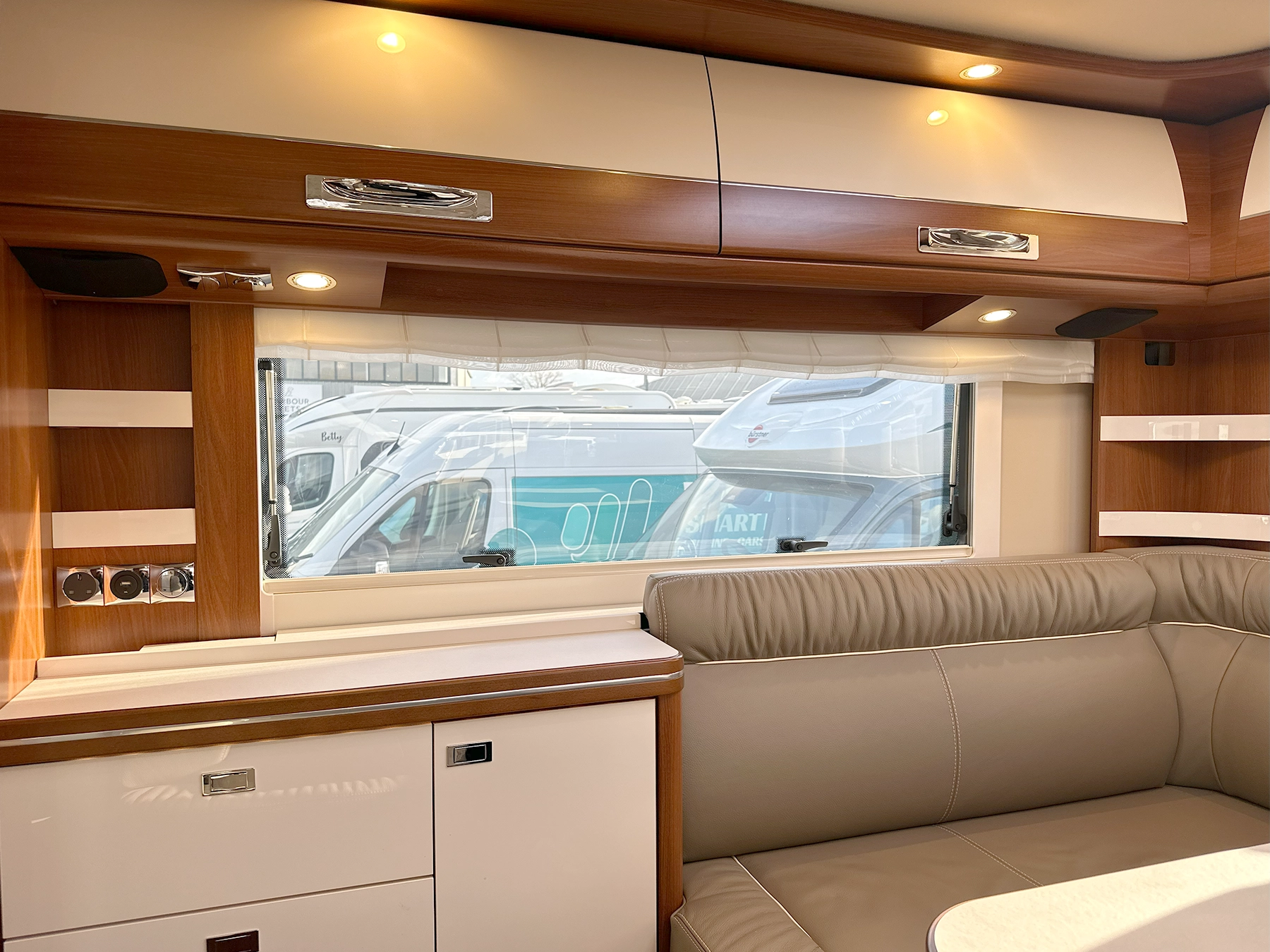

  - Connection wiring for 40″ Smart LED TV in round lounge seating area
Alde Warm Water Heating Technology
- Alde hot water heater, operates from 230 V electricity or gas, including 230 V heating cartridge, hot water boiler, bleed valves, numerous convector heaters in driver’s cab, dashboard, living area, double floor and scooter garage
- Underfloor heating effect due to heated climate storage double floor
- Additive hot water underfloor heating: additional heating coils in double floor area of round lounge seating area
- Dashboard with targeted heating for additional heating of the driver’s cab: insulated sandwich area beneath dashboard with warm water heating coils for surface heating booster: convector package with 2-speed fan underneath driver’s seat, additional convector heater at doorway entrance

Extra Items or Upgrades Fitted to this Carthago Liner For Two I 53 Motorhome Include:

Super Package Fiat consisting of:
- Chassis Options:
  - Charge booster
  - ESP with traction control and hill descent control
  - Driver’s cab comfort seats with tilt adjustment (front), Fiat incl. height adjustment (rear)
  - Wind-down rear steadies to prevent swaying when stationary
- Main Cabin Options:
  - ‘Carthago best view’ bus mirror system with entrance lighting, electrically adjustable and heatable
  - ‘Safetyluxe’ XL main cabin door (width 63 cm) with safety double locking and ‘coming home’
  - Central locking for driver’s cab doors and main cabin door, exterior hatches and scooter garage hatches
  - Scooter garage upgrade with needle felt and securing system
  - SOG toilet ventilation via roof flue
  - Alde heat exchanger (uses engine heat)
  - Truma DuoControl CS
  - Carthago 3-piece ship’s clock set
  - USB socket in sideboard of rear lounge round seating area
  - Pre-wiring for solar system
  - Pre-wiring for satellite system
  - Pre-wiring for reversing camera (single lens)

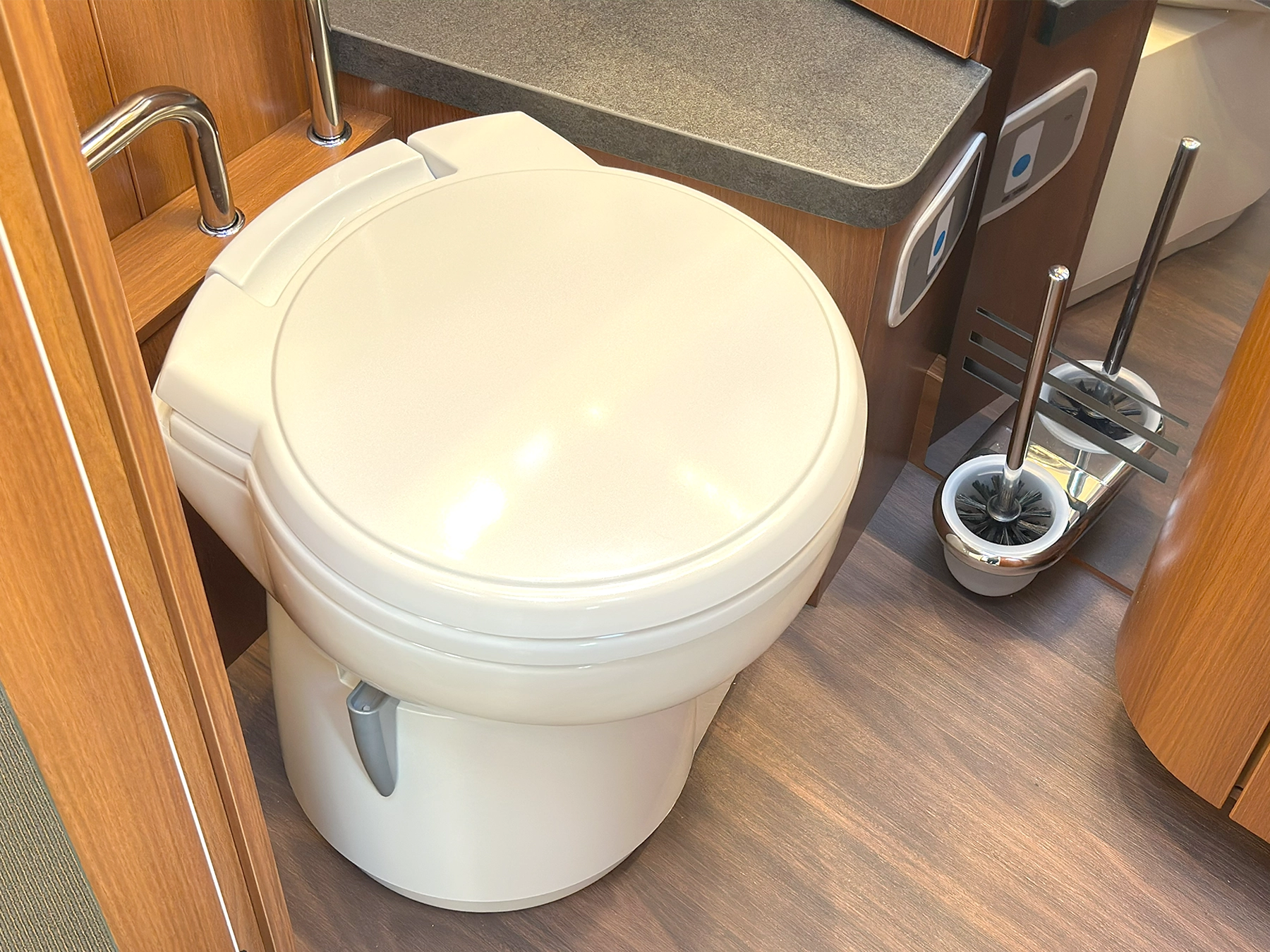

  - Thetford C260 toilet with ceramic insert

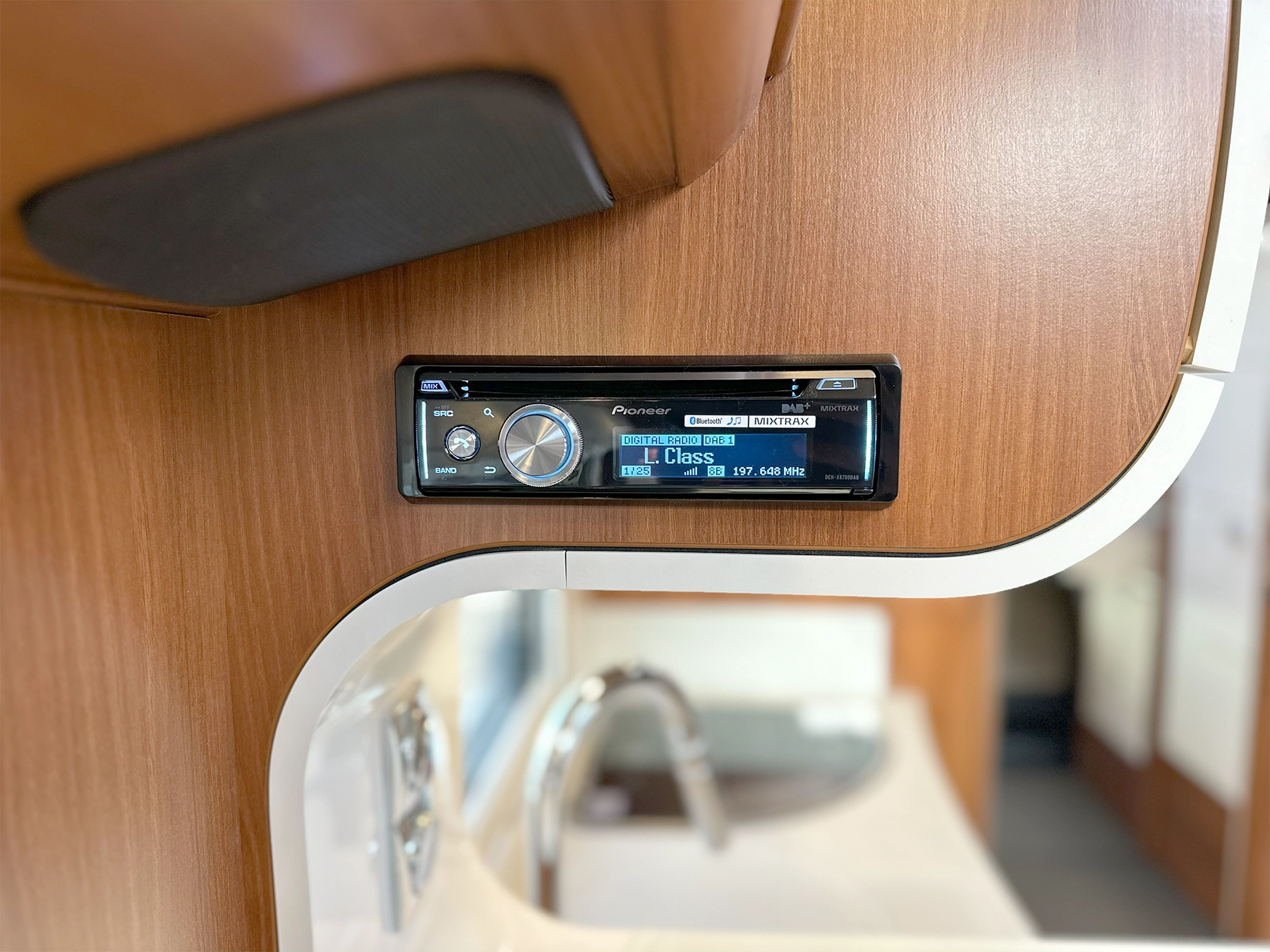

  - Pioneer 6.8″ radio / moniceiver incl. DAB+, pre-wiring for radio, roof antenna, speakers (6x) UPGRADED TO FIAT 10.1” MULTIMEDIA SYSTEM INC. SAT NAV, MOTORHOME ROUTE GUIDANCE AND DAB+
  - Reversing camera system with single lens and 7″ colour monitor at side of dashboard UPGRADED TO REVERSING CAMERA WITH DOUBLE LENS AND SHUTTER INSTEAD OF SINGLE LENS
Chassis Plus Package for Fiat consisting of:

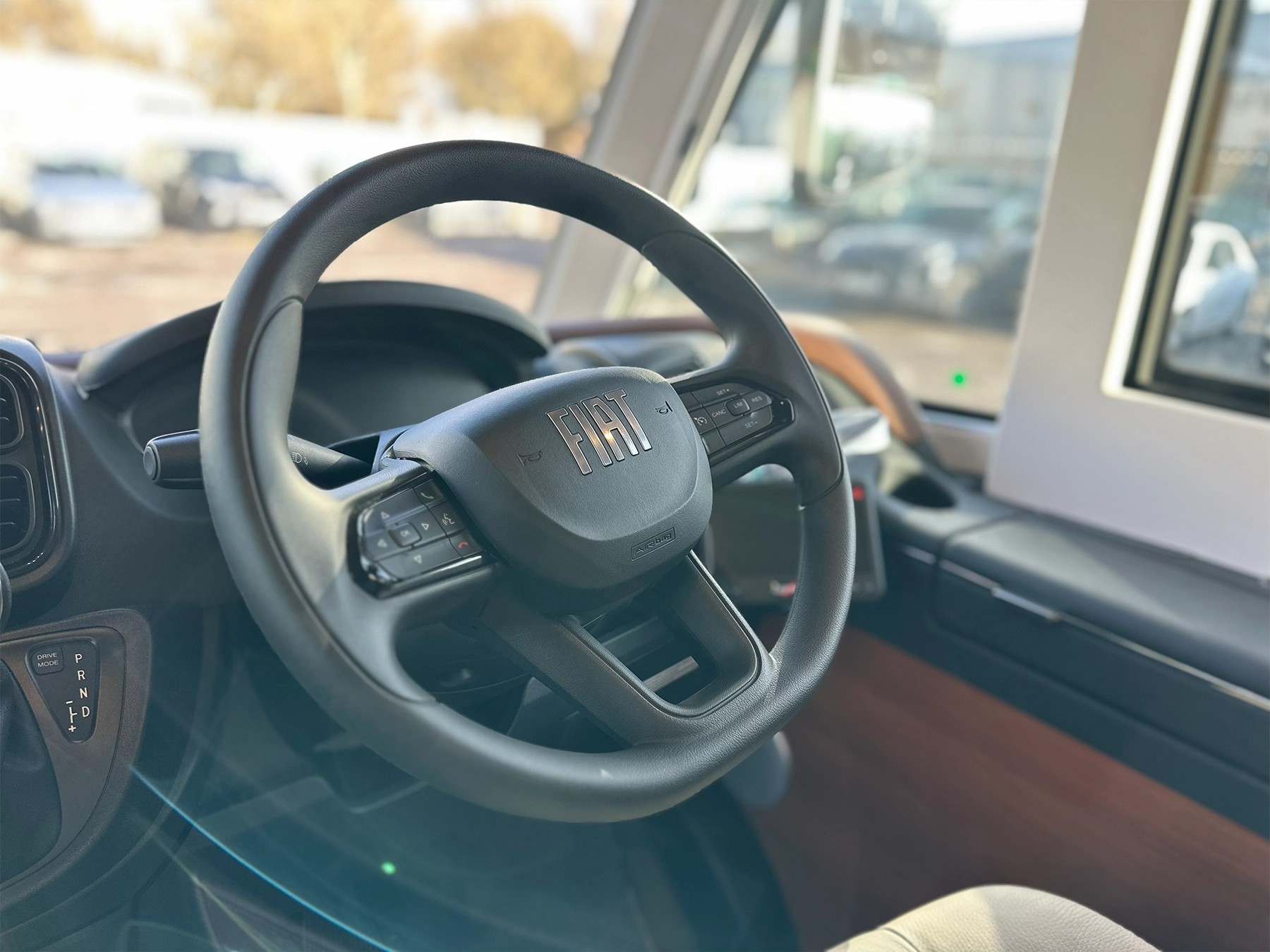

- Multi-functional steering wheel (radio remote control via control buttons)
- Driver’s cab automatic air conditioning
- Inductive mobile phone charging tray
- Digital instrument cluster with colour display in dashboard
Sleeping Area / Driver’s Cab TV Package consisting of:

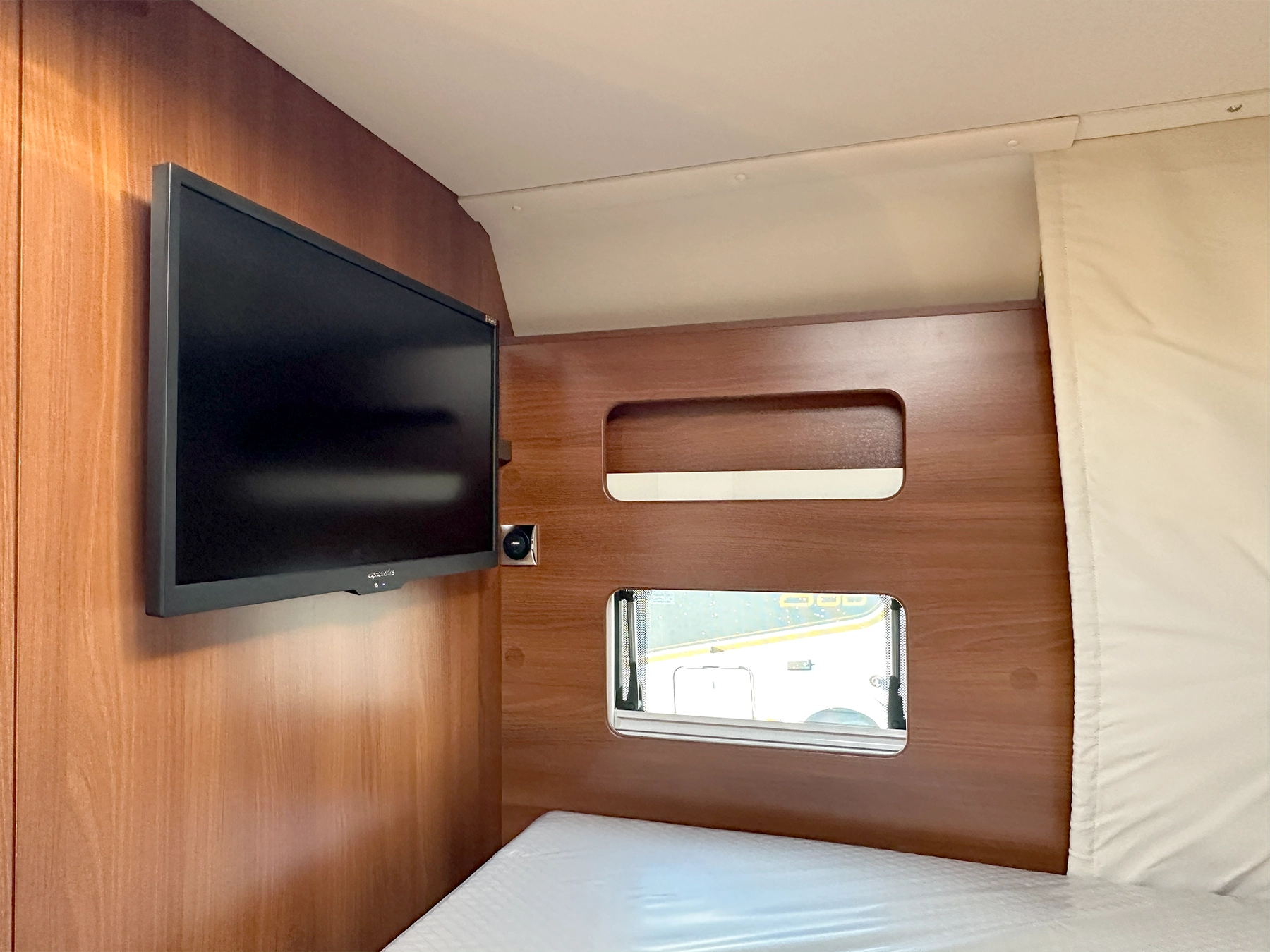

- Fixed TV bracket in sleeping area / driver’s cab
- 24″ Smart LED TV incl. speaker
Luxury Main Cabin Door Package consisting of:
- Electric self-closing mechanism for quiet closing
- Additional LED lighting in door window for ‘coming & leaving home’ function
- Keyless access system via RFID-Chip (2x)
- Electric door opening support from interior and exterior
Chassis
- 180 HP / 132 kW engine, Euro VIe, f40 heavy, 8-speed automatic torque converter
- AL-KO ‘ACS’ high-performance front axle spring strut
- Weight increase from 4,500 kg to 4,800 kg (incl. AL-KO Air Premium X2 / special aluminium wheels)
- Removable tow bar
Main Cabin Exterior
- ‘Silverline’ exterior colour concept (driver’s cab and habitation in silver)
- Roof awning aluminium cassette, grey canvas, length: 5.5 m
- LED light strip on roof awning
- Midi-Heki skylight instead of Mini-Heki above drop-down single bed
- Second Heki III above round lounge seating area in rear
Electrical System
- Solar system: 1 x 135 Watt
- Additional socket: 230 V overhead storage cabinets round rear lounge seating area
- Additional socket: 12 V overhead storage cabinets round rear lounge seating area
Gas | Water | Miscellaneous
- Gas filter for Truma DuoControl CS
- Exterior gas connection behind double floor exterior storage compartment on passenger’s side
- Aluminium chequered floor for scooter garage
Kitchen | Appliances

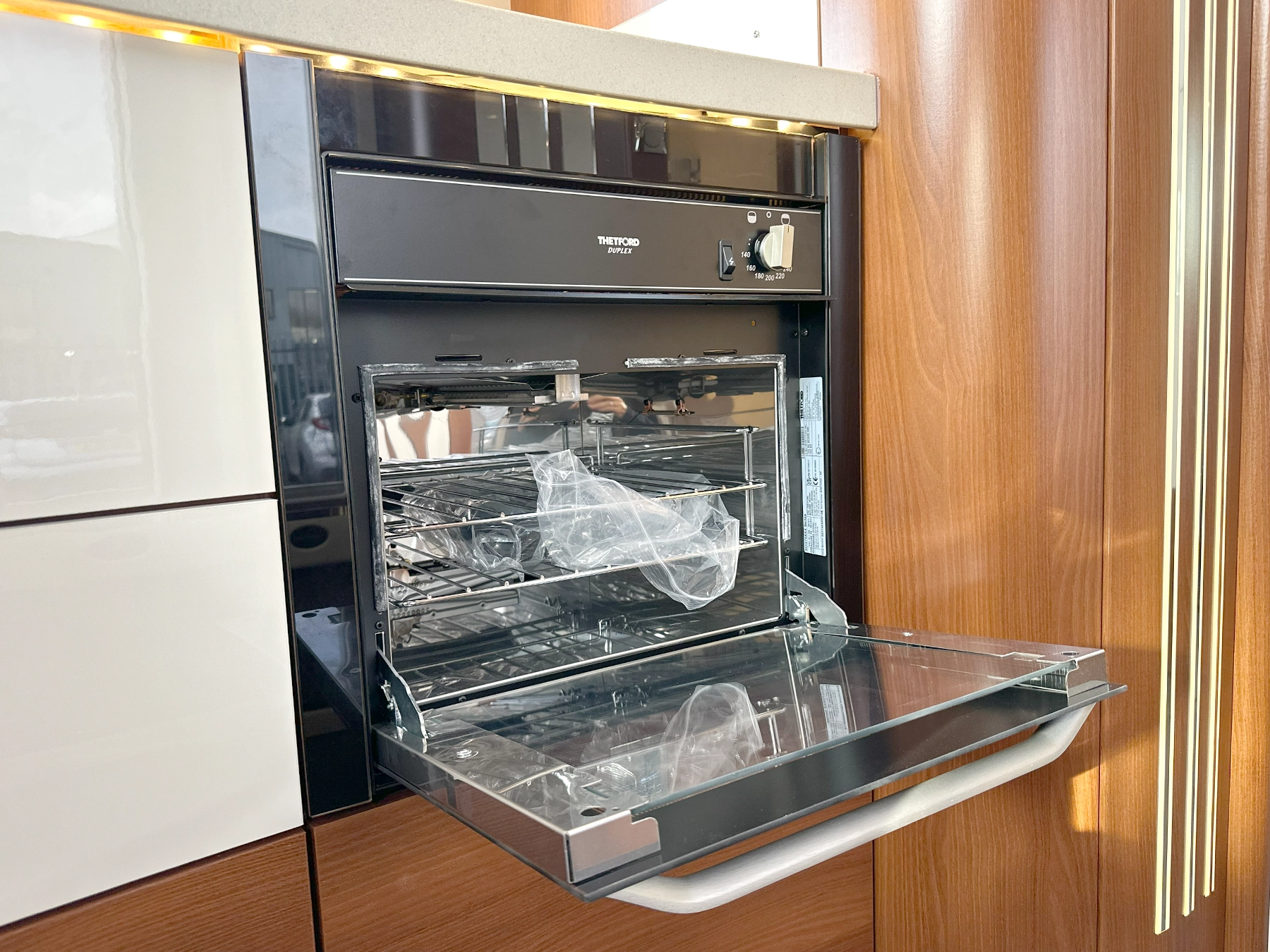

- Gas oven with grill function in kitchen base unit

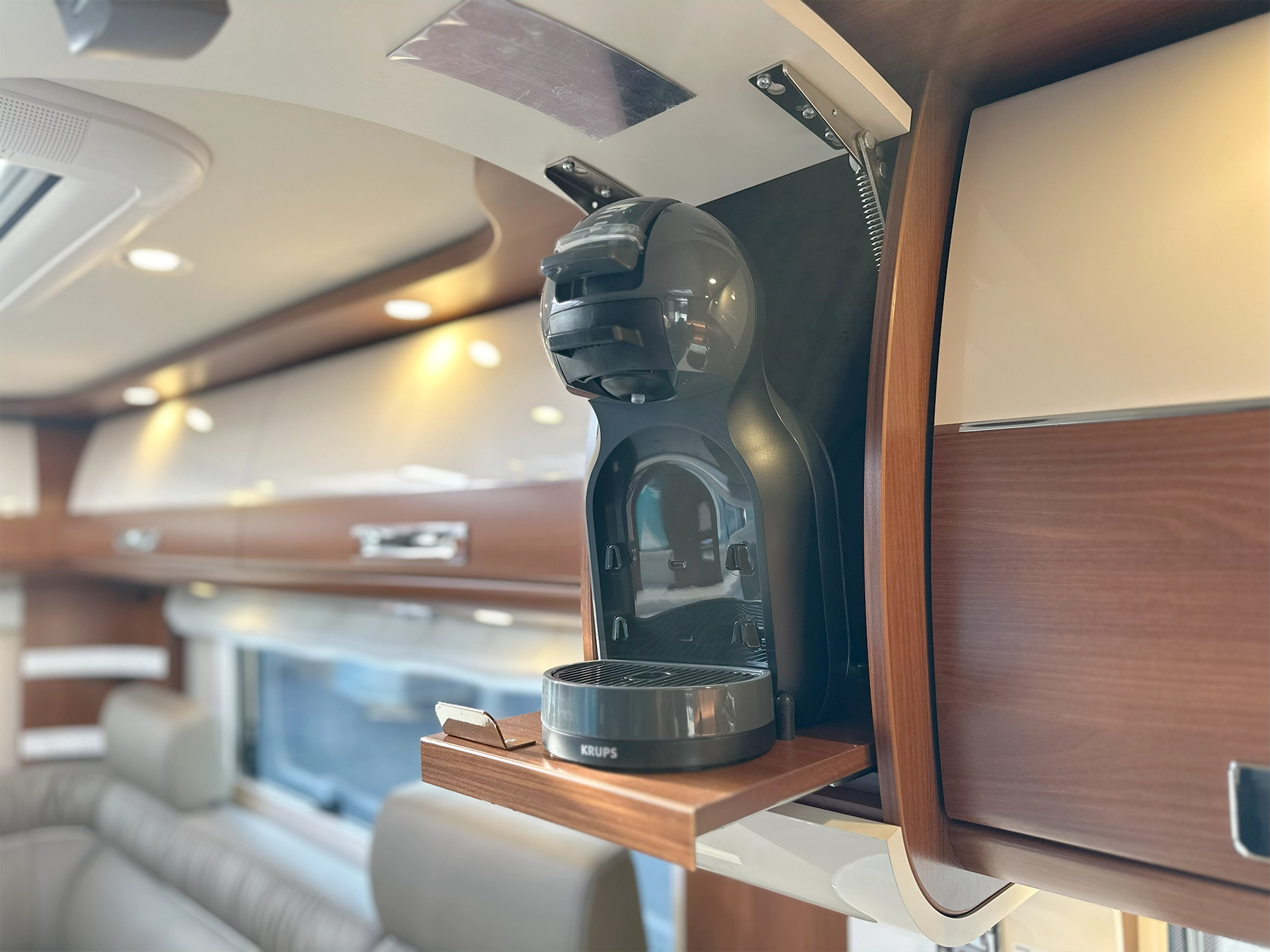

- Capsule coffee machine with connecting kit incl. pull-out system
- Kitchen worktop in high-quality Corian
Heating | Air Conditioning
- Heated towel rail in chrome in bathroom
Multimedia
- 40″ Smart LED TV incl. electric pull-out system
- Radio incl. pre-wiring in round lounge seating area, DAB+ with CD
Satellite Systems
- Teleco Flatsat Easy Skew Smart 90 / Twin LNB for second TV
Interior
- Relax head restraints (2 x) for TV viewing seats in round lounge seating area
- Round lounge seating area can be converted into a sleeping berth
- 3rd & 4th seat at rear wall in direction of travel incl. headrests
- Carpet for living area
- Large mirror on inside of luxury bathroom door
- Electrically extendible television lounger
Living Area Materials
- Macchiato leather
- World of sleeping & décor set: decorative cushions, bed throw, fitted sheet set

*Please Note: This vehicle listing also contains library images; vehicle appearance may differ.*

Additional Information

Brand:

Carthago

Condition:

New

Model:

Liner For Two

Chassis:

Fiat Ducato

Bathroom Type:

Premium Bathroom

Bed Layout:

Dropdown Cab Bed, Seating Converts to Bed

Berth:

3 Berth

Body Type:

A-Class

Engine Size:

2.2 Litre

Fuel Type:

Diesel

Garage Type:

Scooter Garage

Gearbox:

Automatic 8-Speed

GVW:

4800kgs

Heating Type:

Alde Wet Central Heating

Height:

3.08m

Length:

7.83m

Width:

2.27m

Kitchen Type:

Central Kitchen

LHD / RHD:

Right Hand Drive

Licence:

C1 Licence

Year:

2026

Paint Colour:

Silver

Seatbelts:

4 Belts

Toilet Type:

Thetford C 260 with Ceramic Insert

This information is provided as a general guide for prospective buyers and should not be considered part of any contract. All descriptions, measurements, references to condition, and other details are shared in good faith and are believed to be accurate. However, potential buyers should verify each detail independently, whether through inspection or other means, rather than relying solely on the information provided here.

Finance Calculator

We are authorised and regulated by the Financial Conduct Authority for credit brokerage. FCA No. 689883

We can introduce you to a limited number of lenders that offer finance products, but we do not offer any advice or recommendations. We do not charge you a fee for our services, but we receive commission from the lenders we introduce you to. The commission we receive is either a fixed fee or a percentage of the amount you borrow but the existence of commission does not affect the amount you will pay under the agreement. The commission we receive varies depending on how you are introduced to us, which lender we place you with, and which finance product you choose. The commission we receive will not affect the amount of interest you pay under your credit agreement, when compared to customers in circumstances similar to you. We will always introduce you to the lender that provides products for your needs, at the interest rate suitable for your credit profile. Once your finance is approved, you will be informed of any commission payable to us by the lender and this will be presented before you sign your finance agreement.

New Motorhomes(120)

Used Motorhomes(27)

New Campervans(81)

Used Campervans(8)

On Special Offer

SOLD – Carthago Liner For Two I 53

Enquire Now or call us on 02392 674820

Save £30,000!
