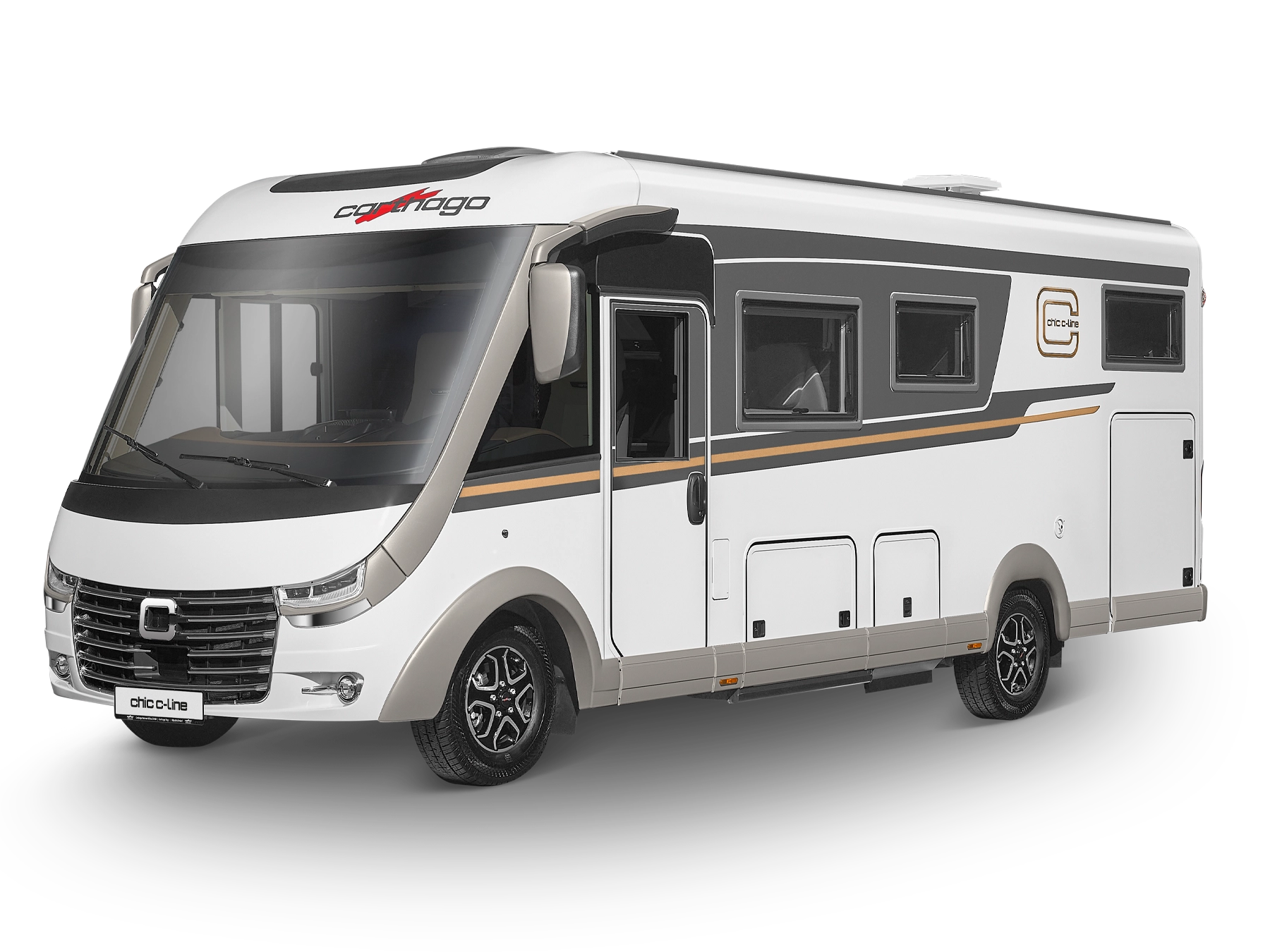

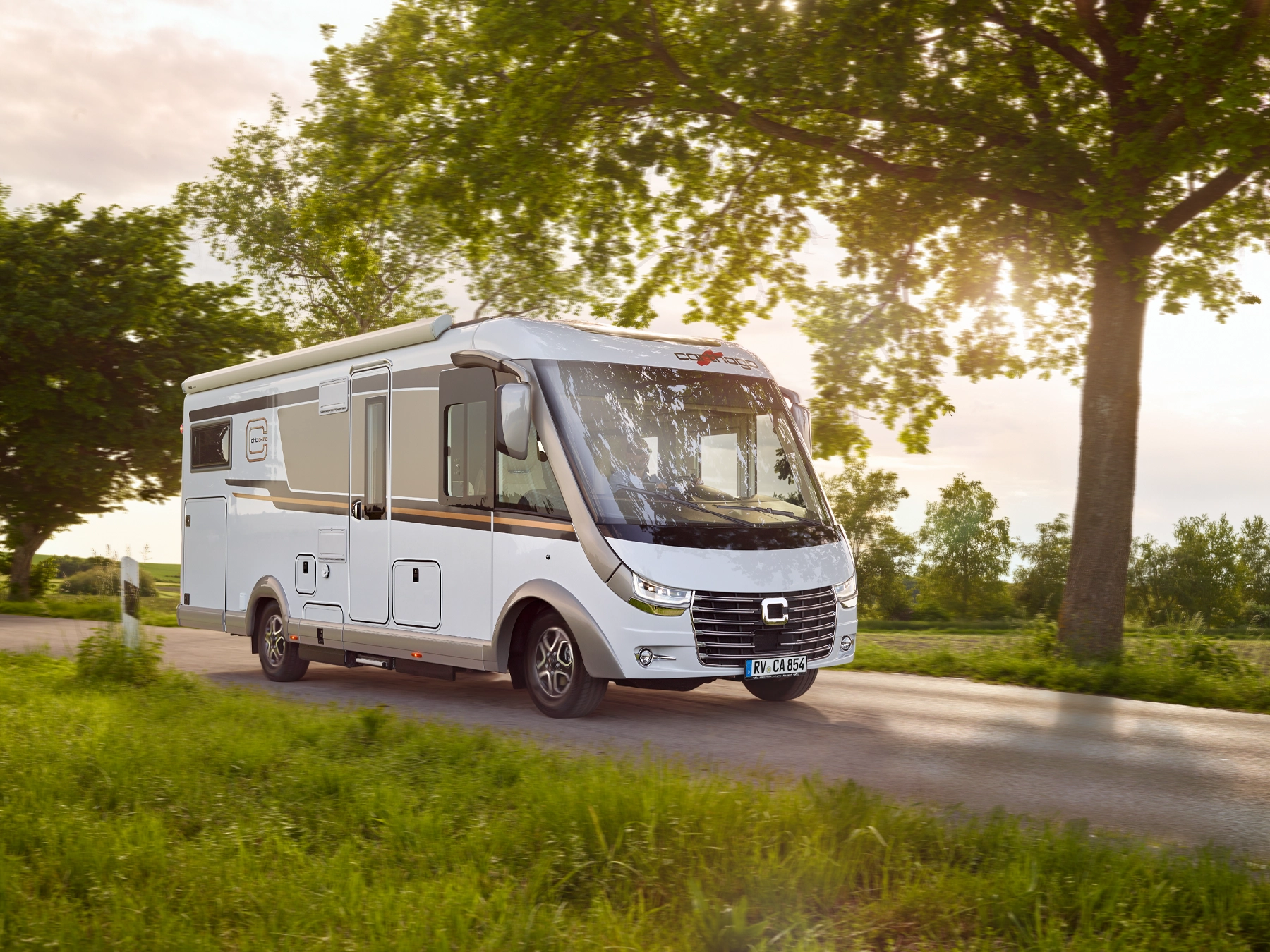

Carthago Chic C-Line I 5.0 QB L Motorhome
The Carthago Chic C-line I 5.0 QB L combines luxury and practicality in a sleek integrated design. This 2026 model is built for comfort and style on the road.
Motorhome Technical Data:
- Mercedes-Benz Sprinter
- 9G Tronic automatic gearbox
- AL-KO low frame 415 CDI
- Diesel 2.0l (150 HP / 110 kW)
- Wheelbase: 4,443mm
- 1,980mm headroom in living area
- 1,120mm garage interior height
- Technically permissible gross vehicle weight: 4,200kg
- Rear bed dimensions: 1,950×1,450mm
- Drop down bed dimensions: 1,950×1,600mm
- 153l fridge with 29l freezer
- Heating system: Truma Combi 6 UPGRADED TO TRUMA COMBI 6E (ADDITIONAL ELECTRIC HEATING ELEMENT 2x 900 WATT / 230V)
- 170l fresh water tank
- 140l waste water tank
- Battery capacity: 2×80 Ah
- Sockets: 5x 230V / 1x 12V / 1x USB
Carthago Chic C-Line I 5.0 QB L Equipment Includes:
- Chassis
- Carthago special AL-KO low frame
- All-weather tyres (M+S)
- 16-inch steel wheels

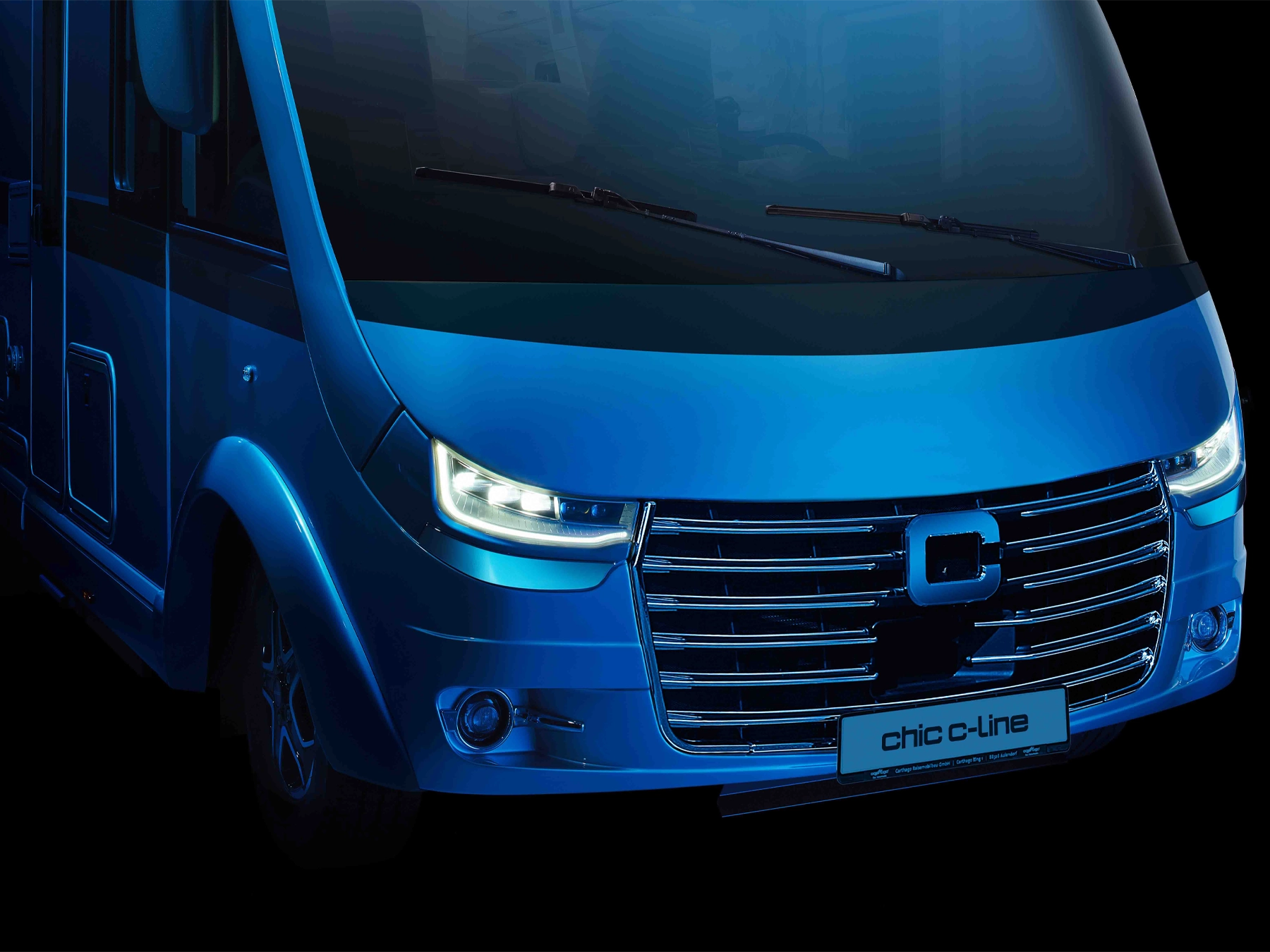

- Carthago full LED headlights (dipped and main beam) including LED daytime running lights
- Fog lights
- Mud flaps on front and rear axle
- Fix & Go breakdown kit
- Engine: 2.0 l diesel with Adblue (22 l), 150 HP / 110 kW, 4 cylinders, 330 Nm, Euro VI E, front-wheel drive
- 9G-Tronic automatic transmission incl. hillholder
- Start / Stop system
- Keyless Start incl. Start/Stop button
- Driver / passenger airbag
- Side wind assistant (single axle model), Hillholder, ABS, ASR, EBV, ESP
- Driver and passenger cup holders, glove compartment on passenger side (LHD)
- Hinged lid for storage compartment
- Automatic driving light control
- Mercedes-Benz emergency call system, breakdown management
- Fleece battery 12 V / 92 Ah
- Wide-gauge front axle
- 92-litre fuel tank (Mercedes-Benz)
- Active Brake Assist and Driver Drowsiness Detection
- Original Mercedes-Benz wheel trims
- Pre-wiring (cable set) for habitation door central locking system
- Electric hot air auxiliary heating in cab
- Liner Premium-Class Body Construction
- 10-year water ingress warranty
- Wood-free body construction with GRP roof and floor covering
- Roof/wall connection via curved roof and frame member
- Roof rail system at side with rainwater drainage
- Side and rear walls with aluminium on the interior and exterior
- RTM hard foam insulating core in roof, floor and side wall
- Floor to side wall connection using aluminium frame member bonded over its entire surface with additional cold stop
- Total wall and roof thickness, 38 mm
- Body with lightning strike protection / Faraday cage
- Exterior hatches made from original “Carthago Isoplus” side wall material
- Internal/external hatch seal, outer seal as water spray protection
- Exterior hatches and habitation door with internal hinges
- Fuel tank flap flush-mounted in side wall
- Segmented side skirts made from aluminium profile

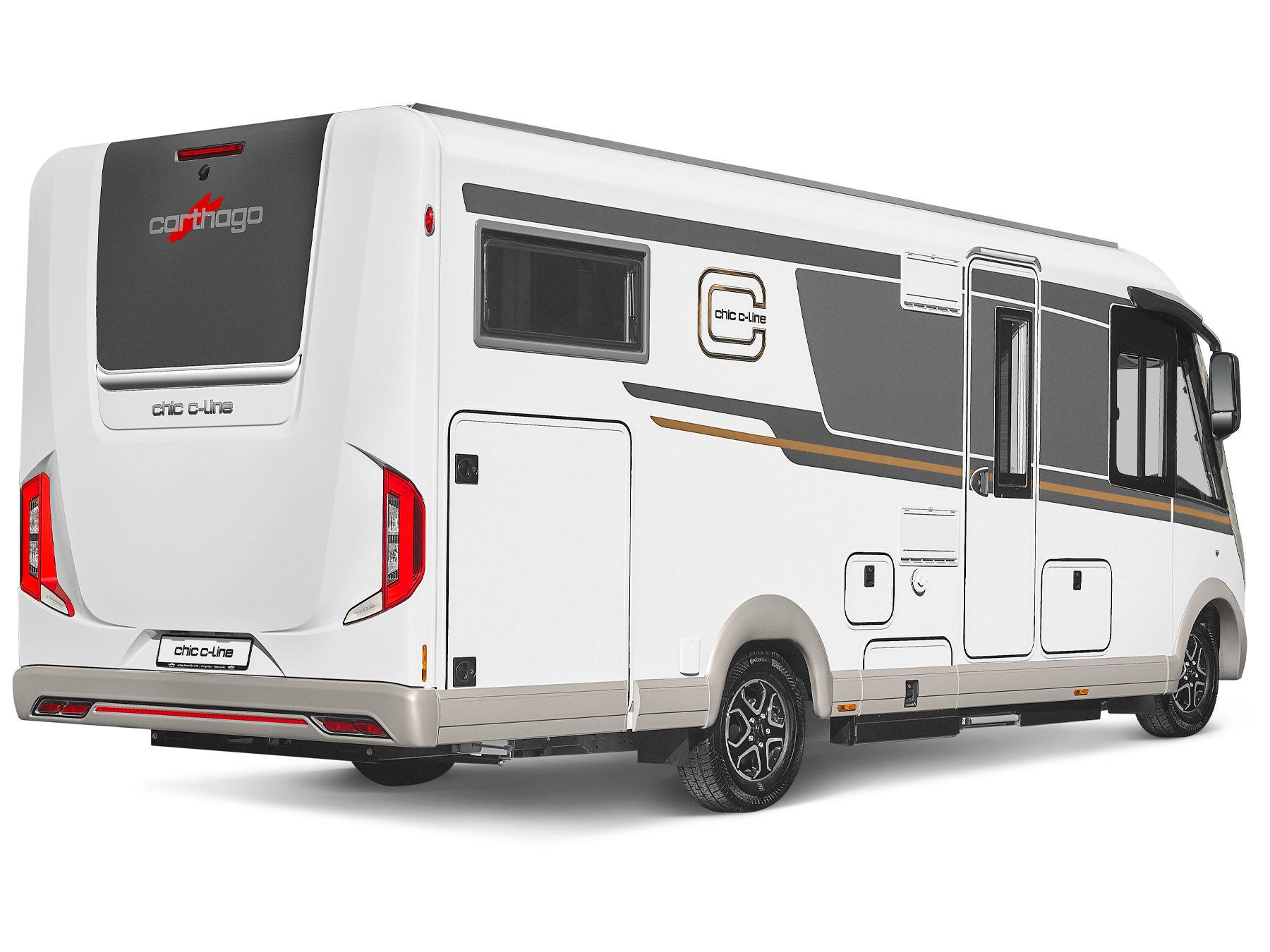

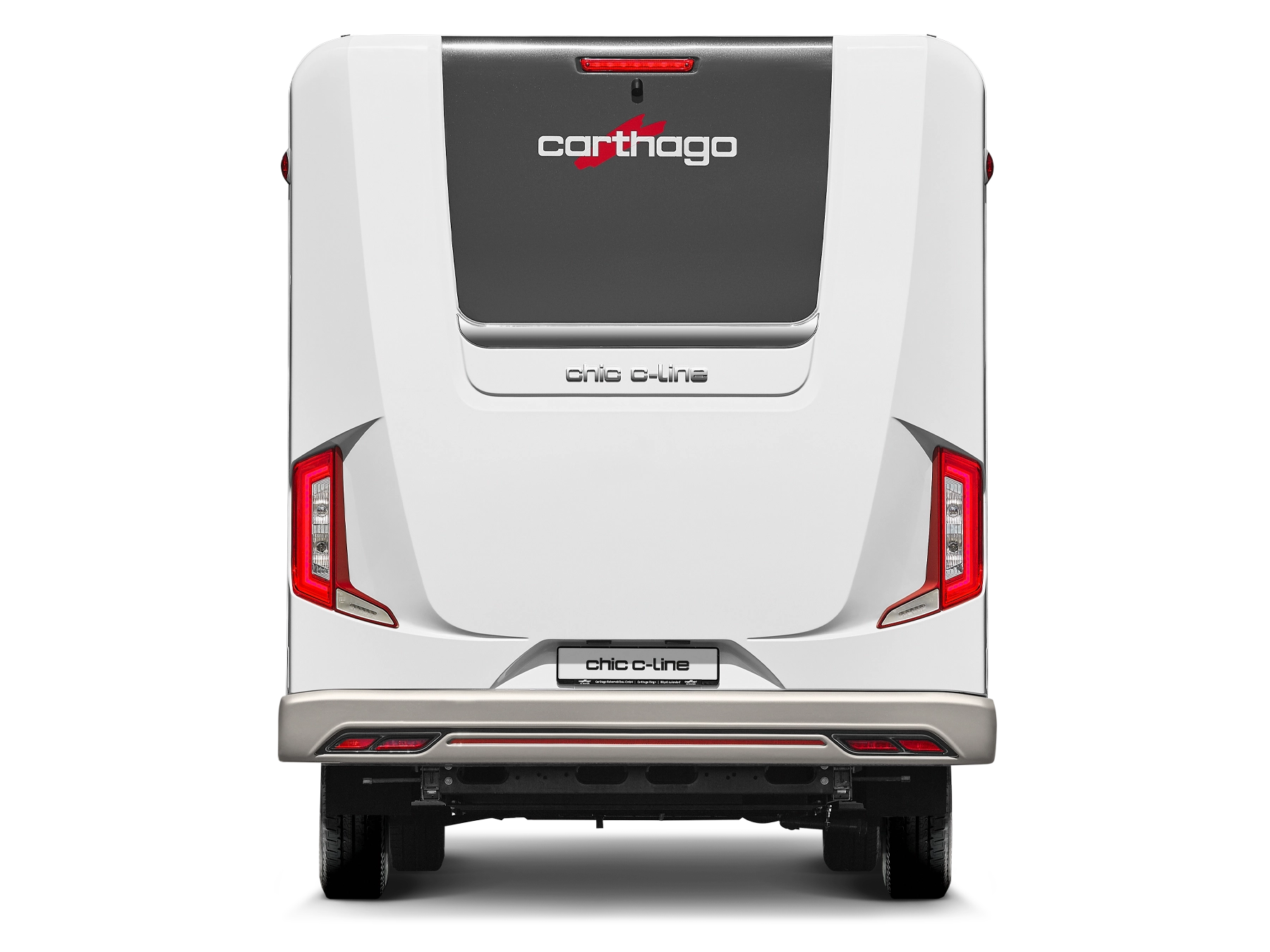

- GRP bus rear with double-shell insulation, separate rear bumper
- Carthago rear lights with dynamic LED indicators
- Seitz S4 habitation window, double frame with insulated glazing and no thermal bridge, insect screen blind and pleated blackout blind
- LED exterior light above habitation door with rain deflector
- Electrically extending entrance step for habitation door with warning buzzer
- Driver’s Cab
- Dashboard sloping steeply towards front (Mercedes-Benz 3.77 m)
- Pleated windscreen blind with honeycomb-structure insulation
- Pleated blackout blinds behind side windows (operated from the side)
- XL models: Insulated double glazing in cab: side and door windows

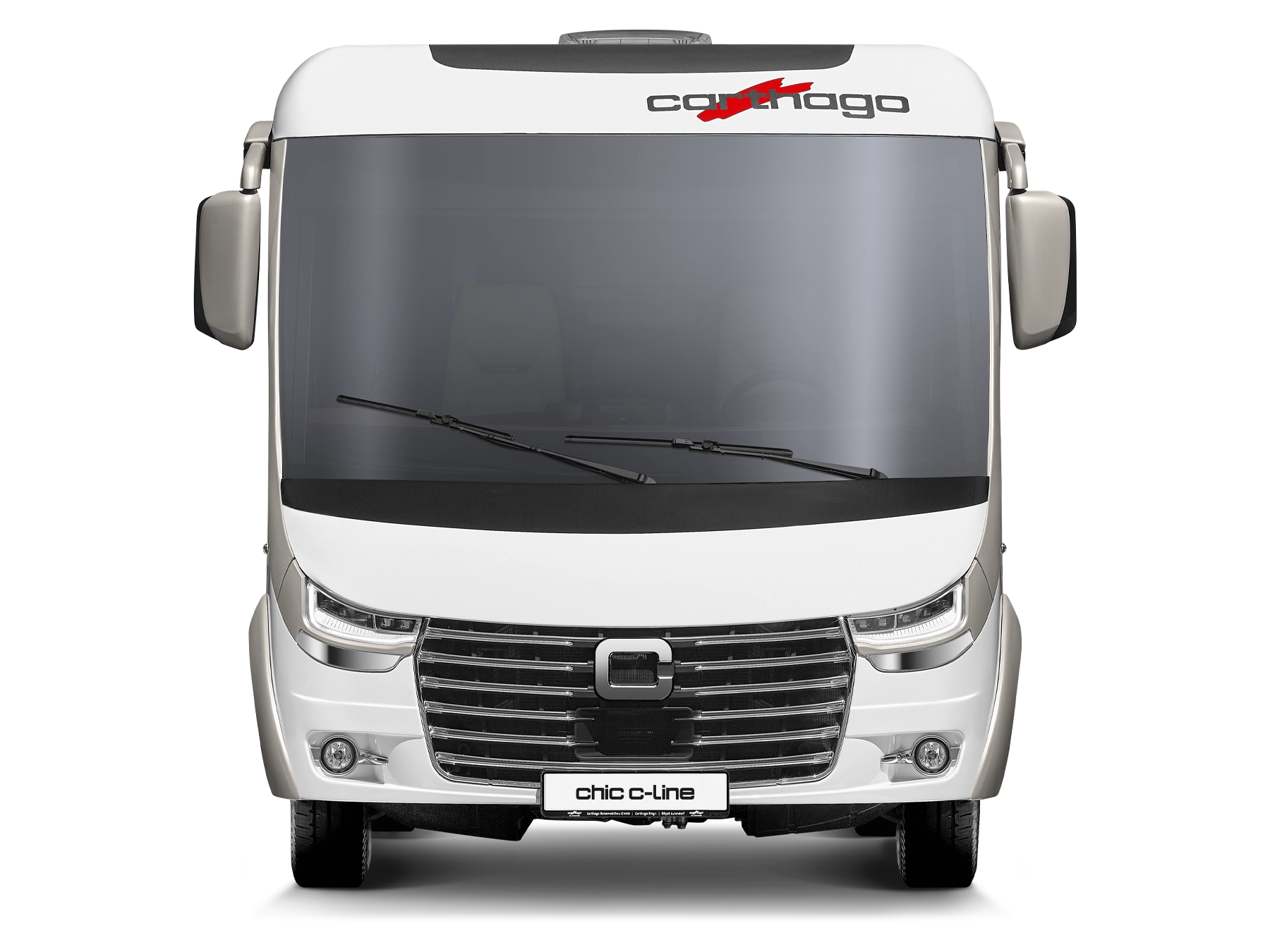

- Front mask in GRP, with double-shell insulation

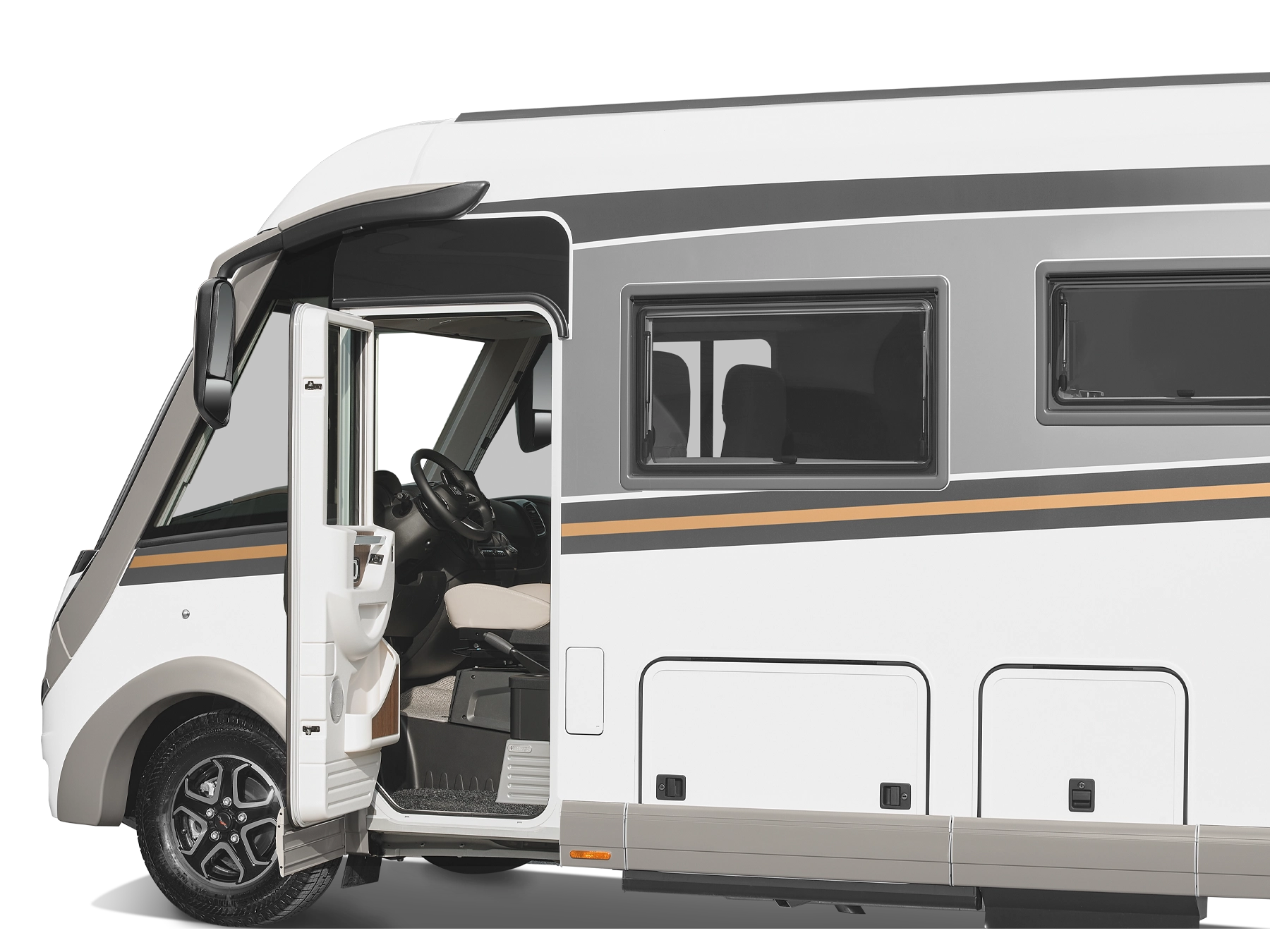

- Cab door with security double locking system, electric windows, rain gutter
- Soundproofing for engine compartment

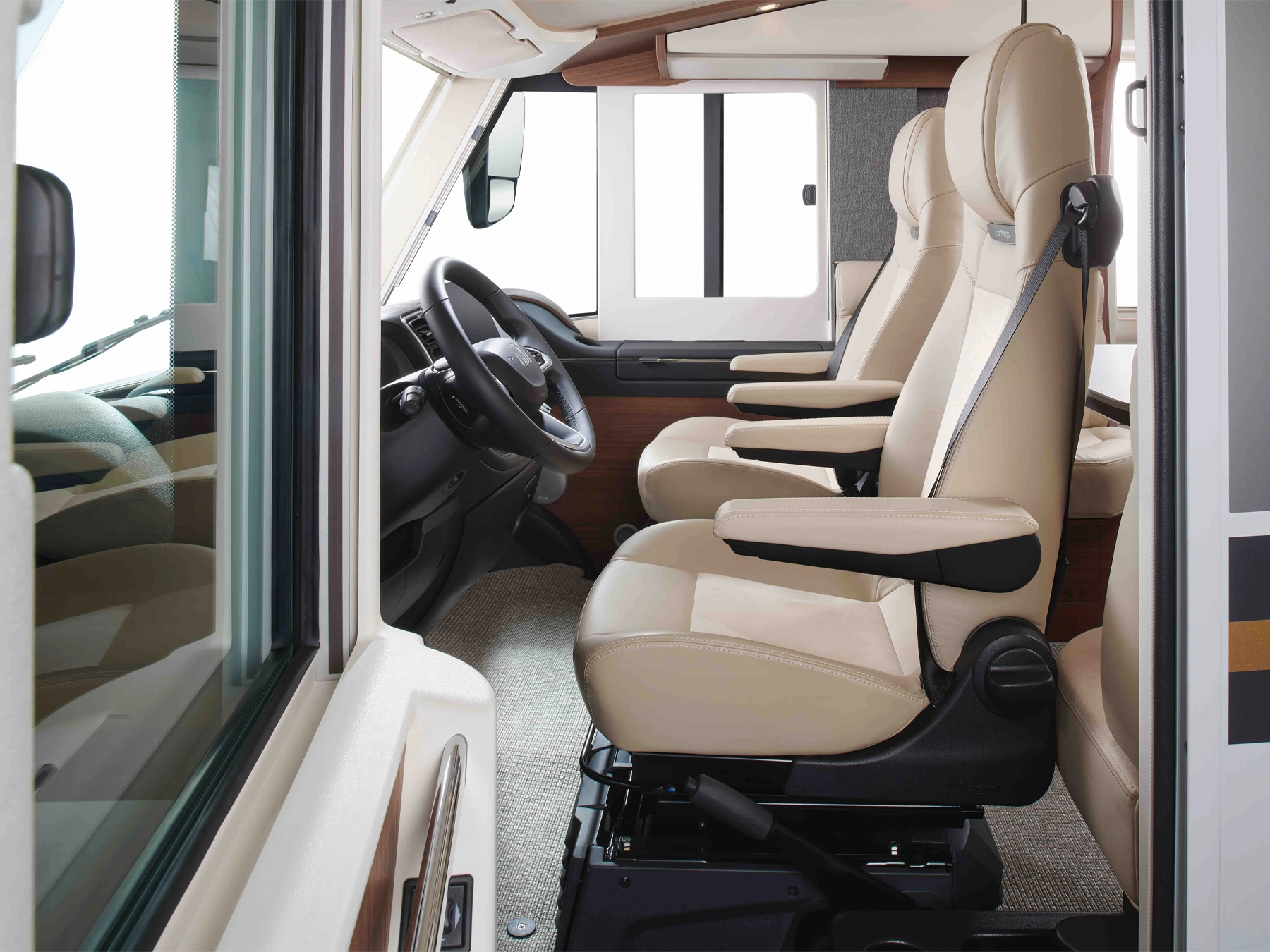

- Aguti “Roadliner” driver and passenger comfort seats with Carthago label, in same material as living area, rotatable, with integrated seat belts and padded armrests
- Dashboard with leather-covered moulded part, practical sideboard, as well as pre-wiring for integrated reversing camera monitor and bottle holder
- Leather-covered bottom panelling for drop-down bed including sun visors, LED spotlights and storage compartments at the side

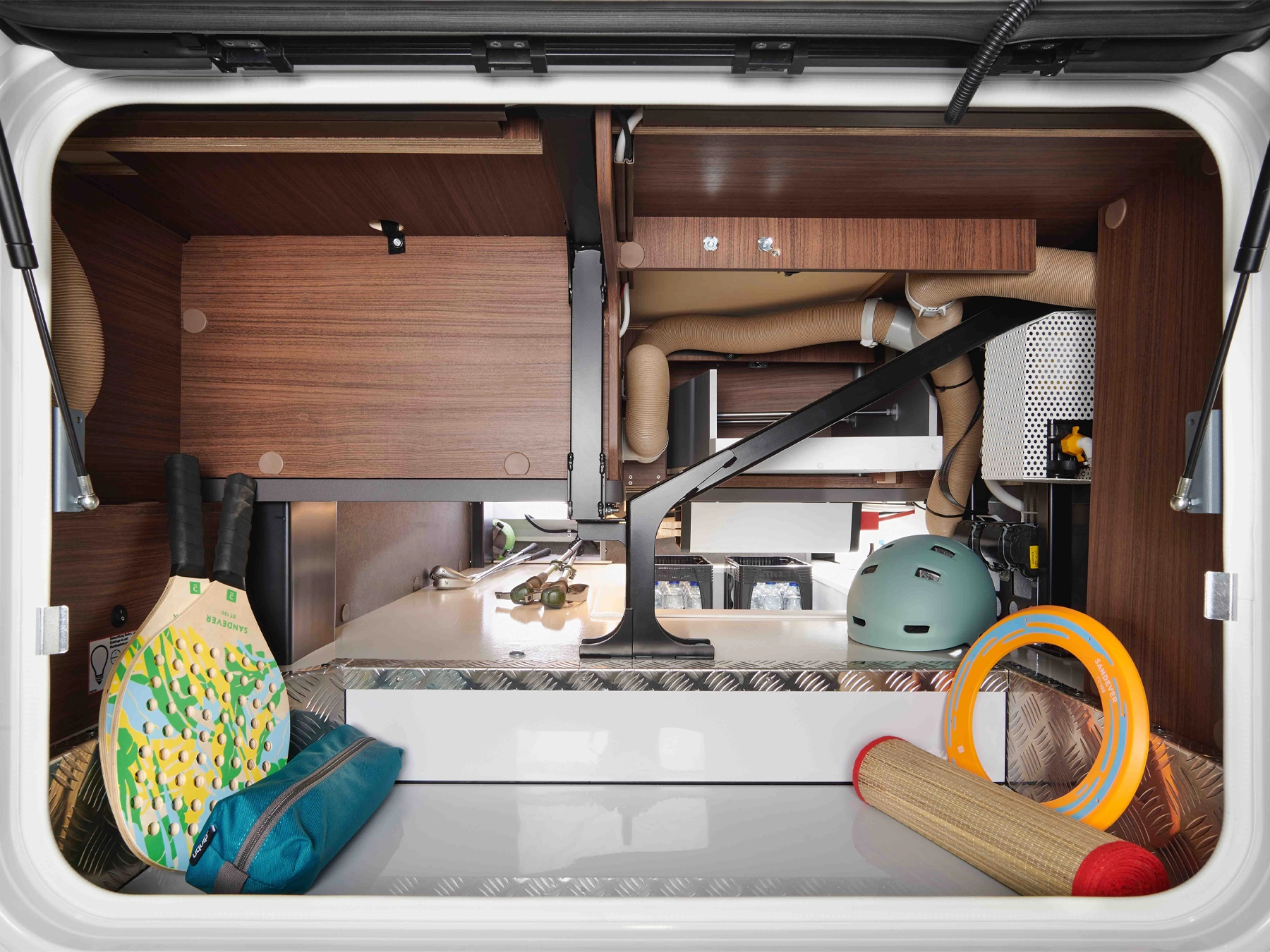

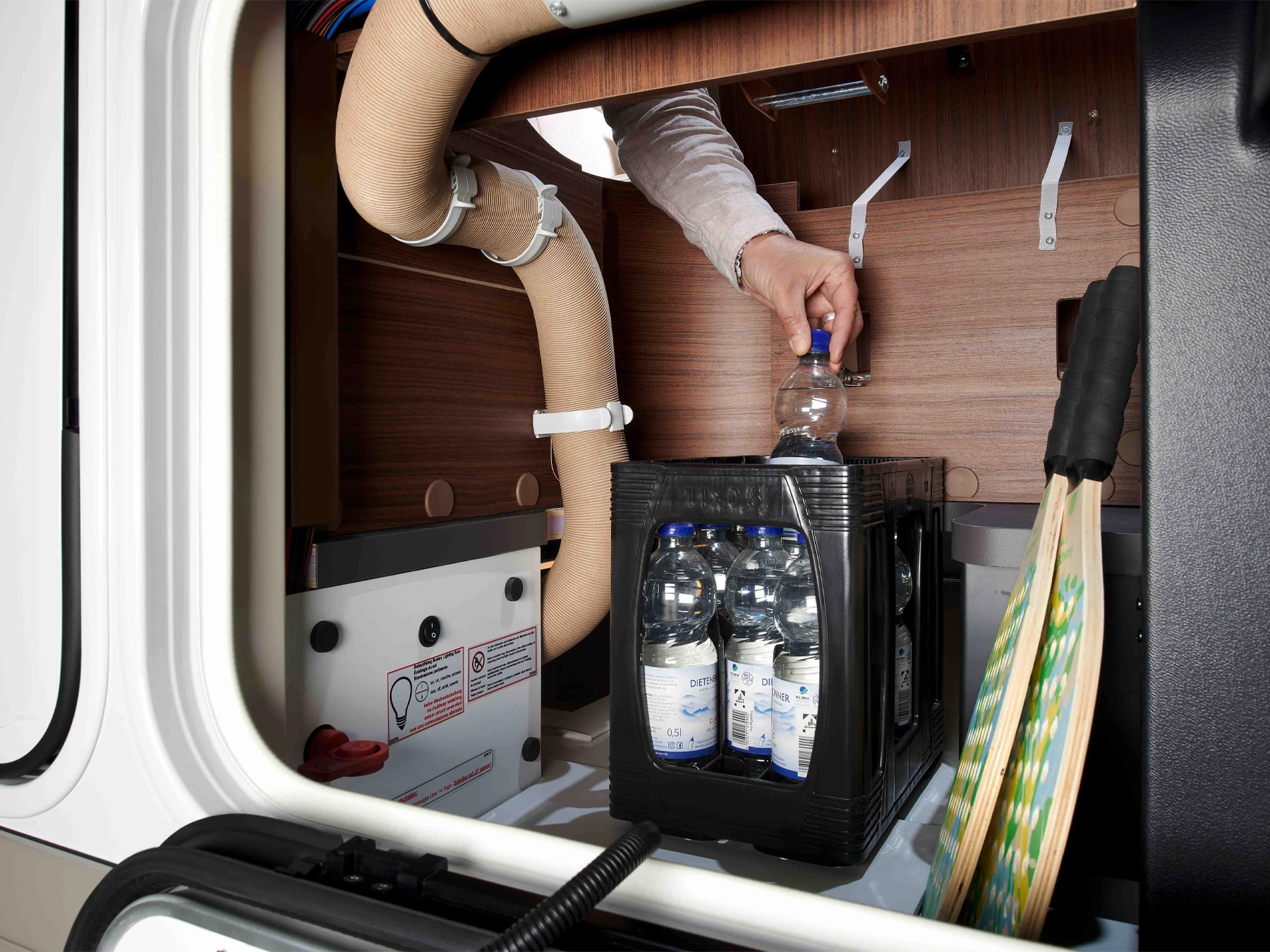

- Double Floor Storage Compartment
- Usable height up to 70 cm
- Through-loading storage compartment with lighting and heating
- Outside access via several large hatches
- Interior access via the L-shaped lounge seating area with patented fitting, swing-up side seat bench and via the large living area floor hatches in the entrance and kitchen area
- Central through-loading space (interior height 22 cm) with low double floor storage compartment (usable height 46 cm)

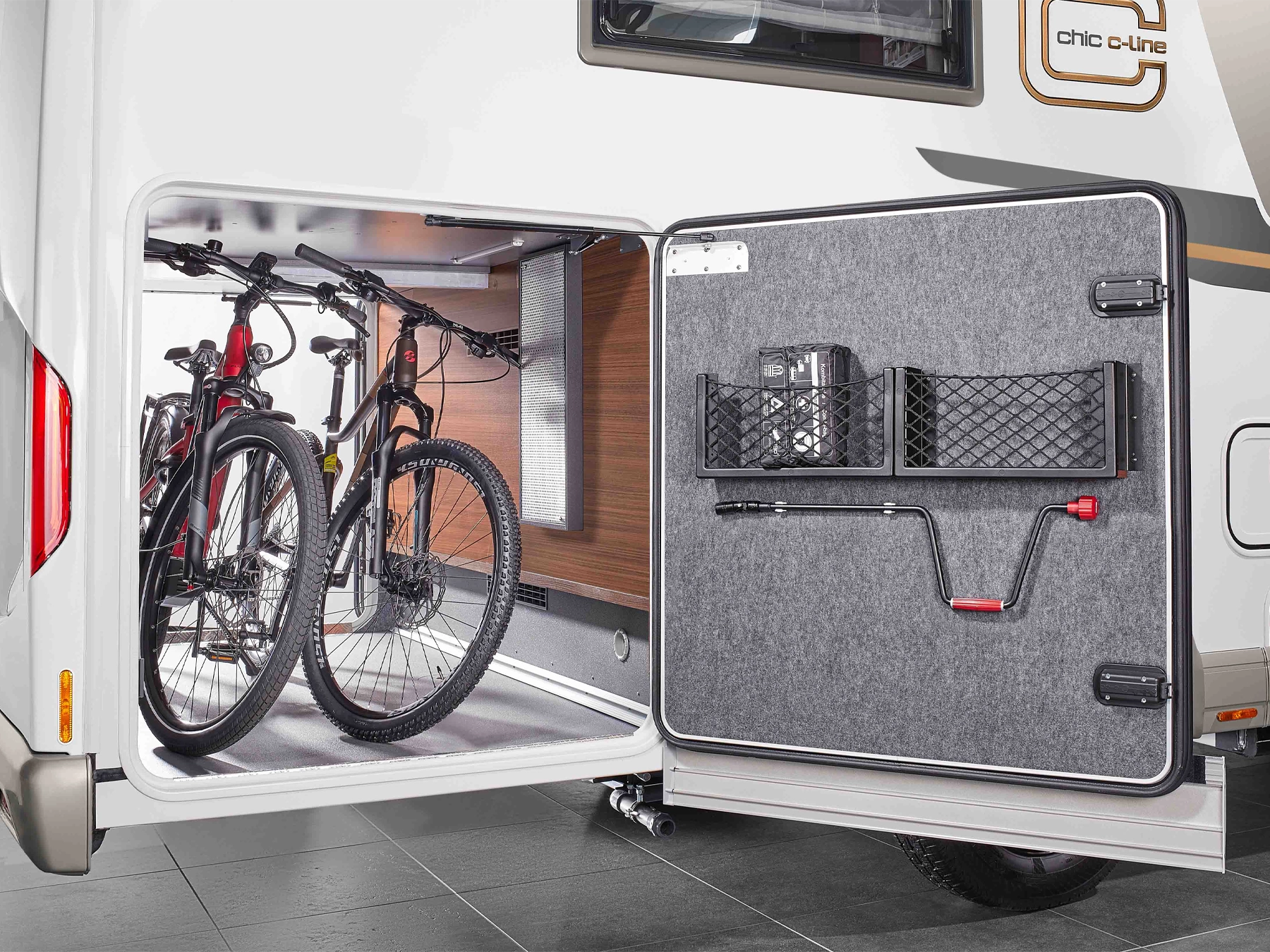

- Large Scooter Garage
- Scooter garage load capacity up to 350 kg
- Large garage doors on passenger’s and driver’s side (LHD)
- Garage floor with GRP on top and bottom, anti-slip coating
- With all-around frost-proof insulation and heating
- Lashing system via aluminium support beam, including eight lashing eyes
- Interior Design
- “Amalfi” style range: Exclusive walnut furniture finish with handleless overhead cabinet fronts in a bicolour appearance with Jurassic white matt, accents in slate grey and worktops in a grey, natural stone look
- Living Area
- Inside of walls and roof with microfibre, climate-regulating wall covering

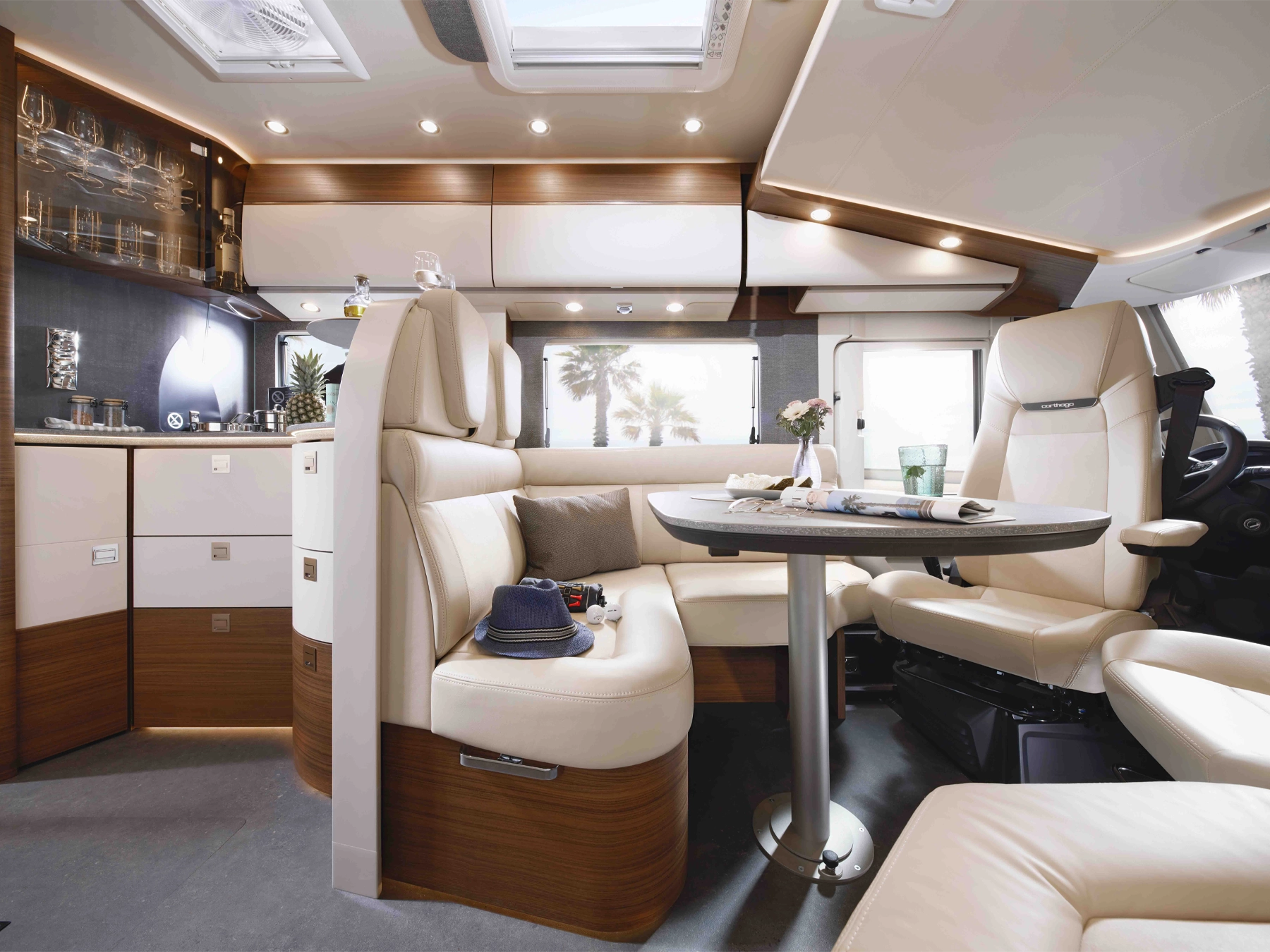

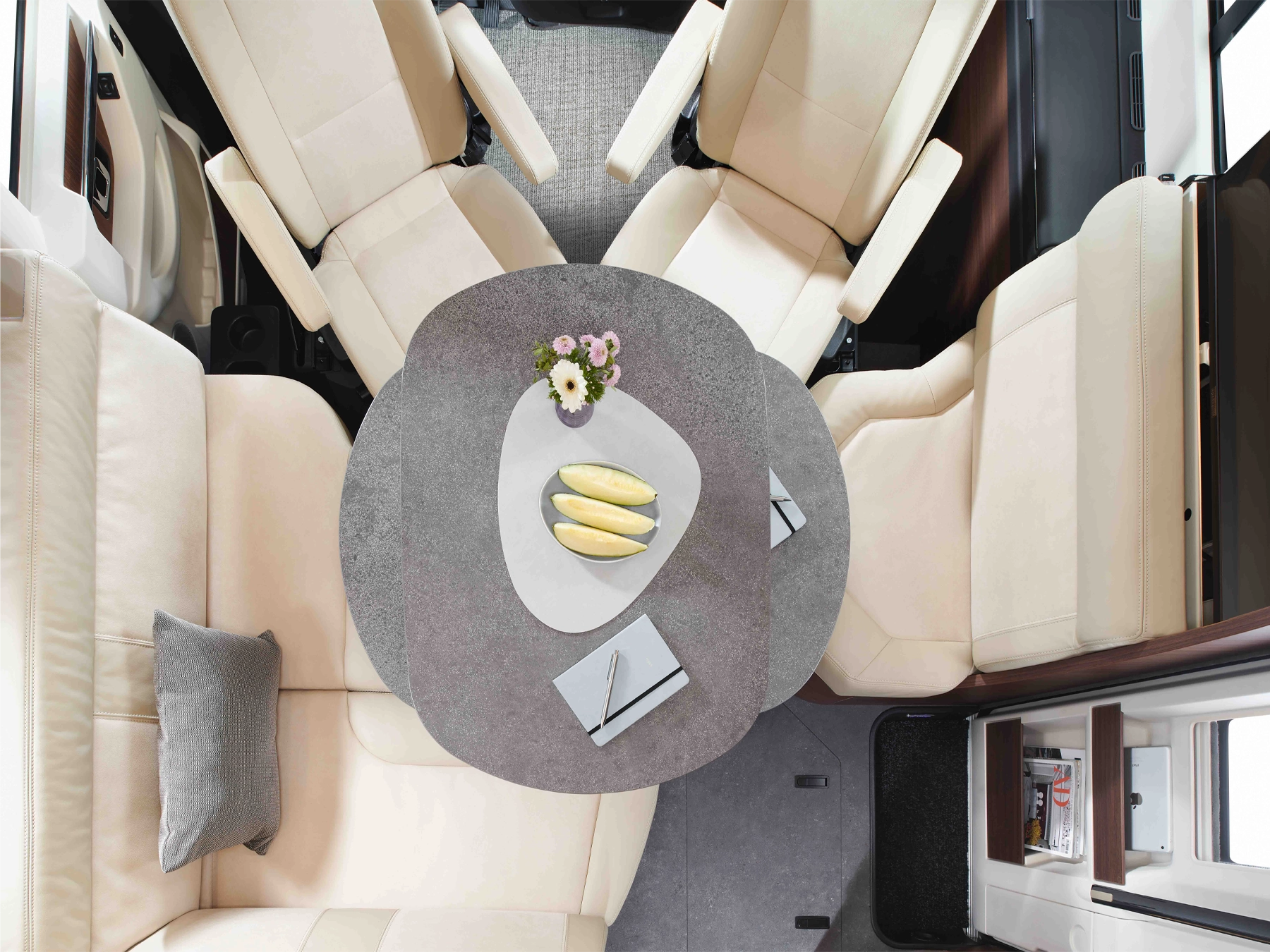

- L-shaped lounge seating area with side bench seat
- XL models: XL lounge seating area with long side sofa on passenger side (LHD)

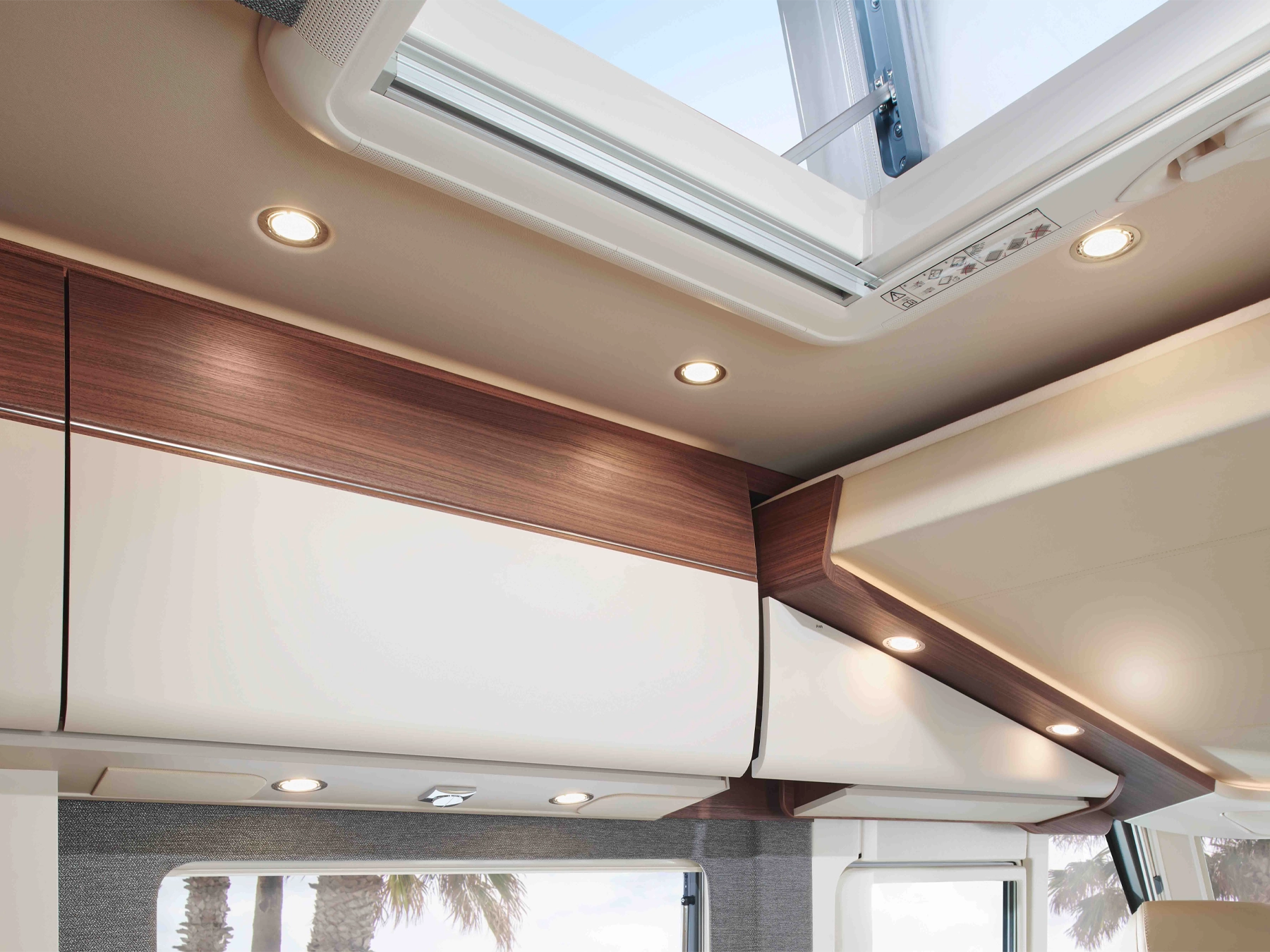

- Heki III panoramic skylight above lounge seating area with LED spotlights

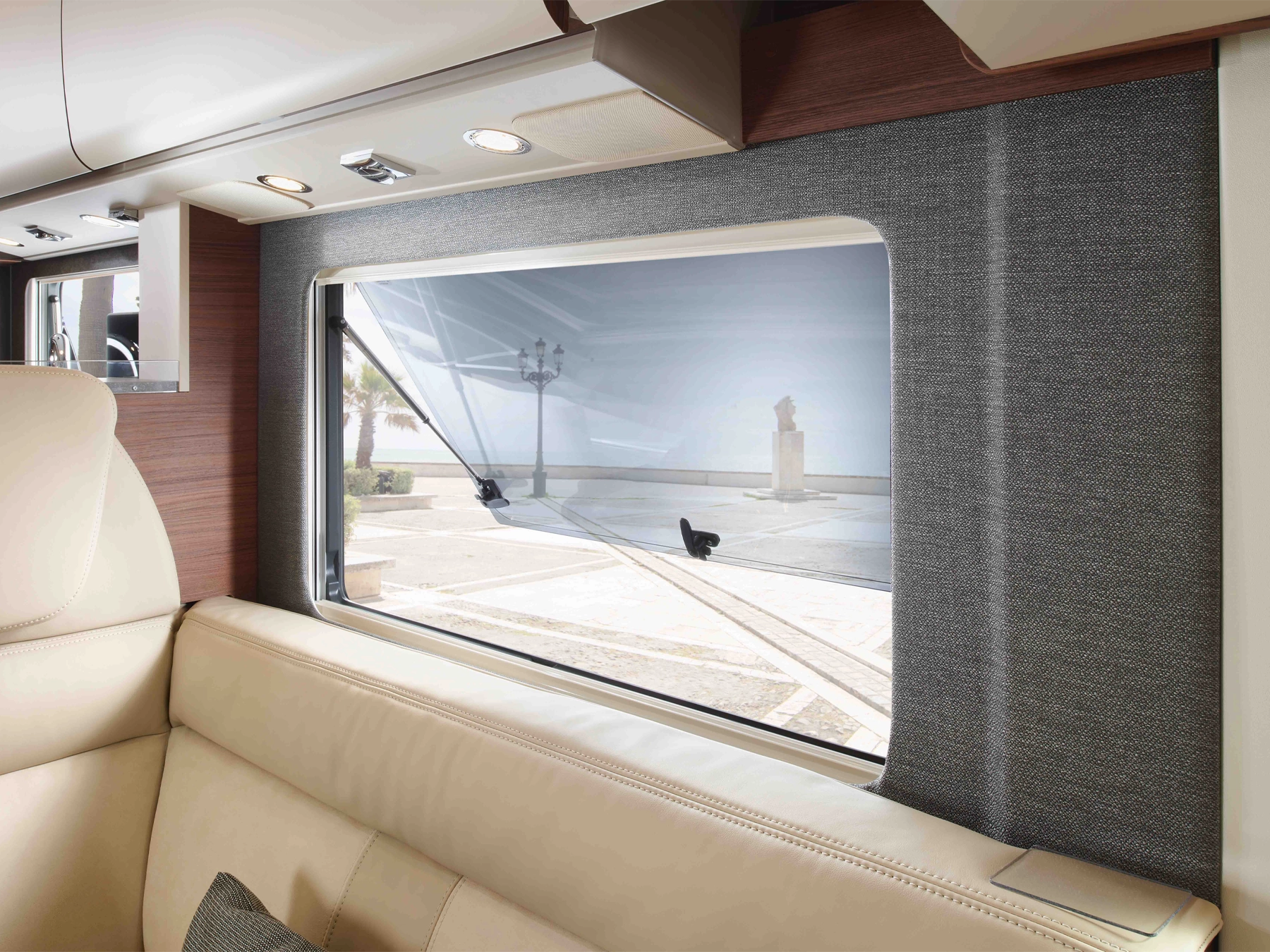

- Living area window above side bench seat on passenger side (LHD) (XL models)
- Textile wall covering behind side seat in anthracite with elegant decorative seams

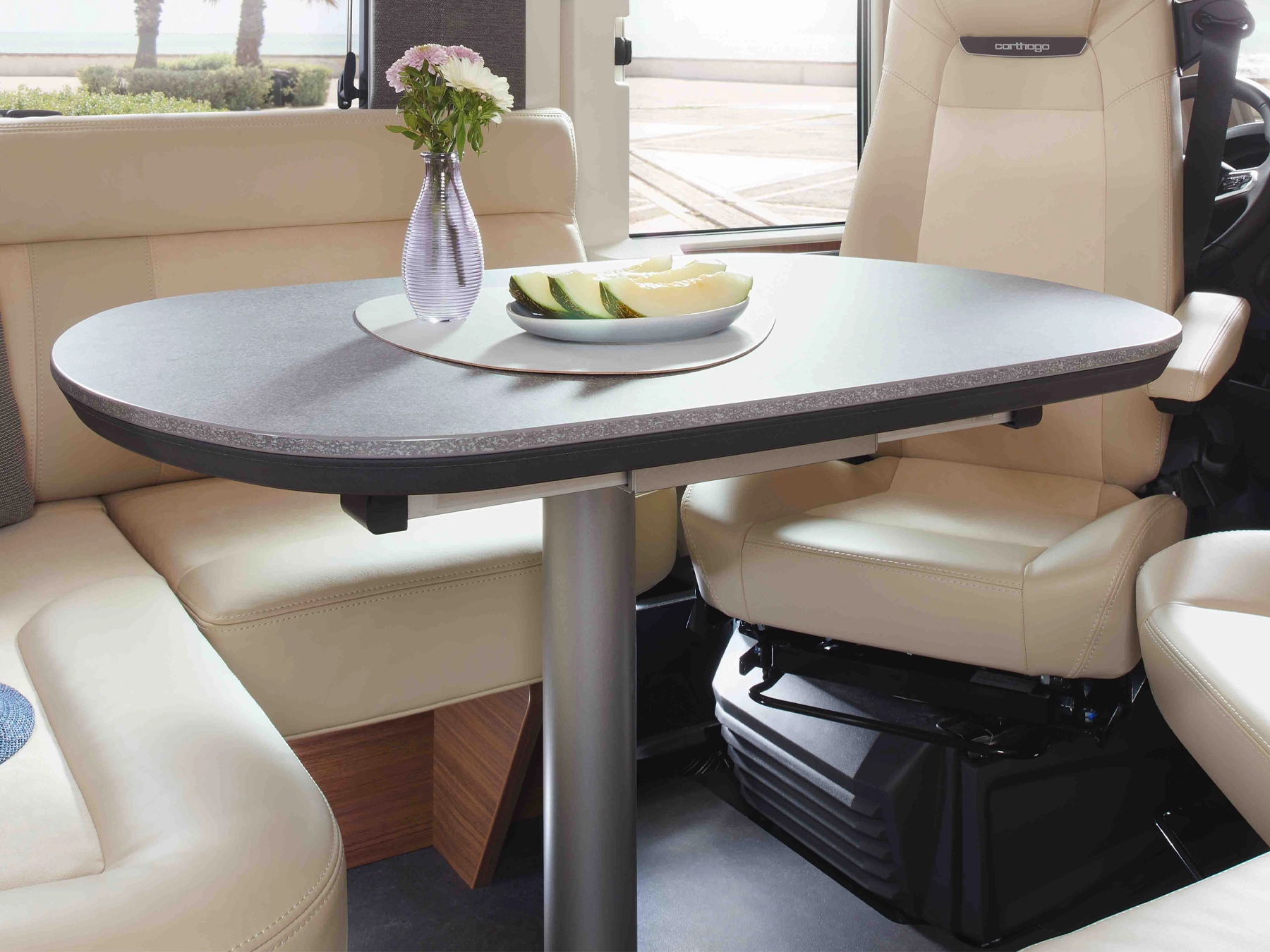

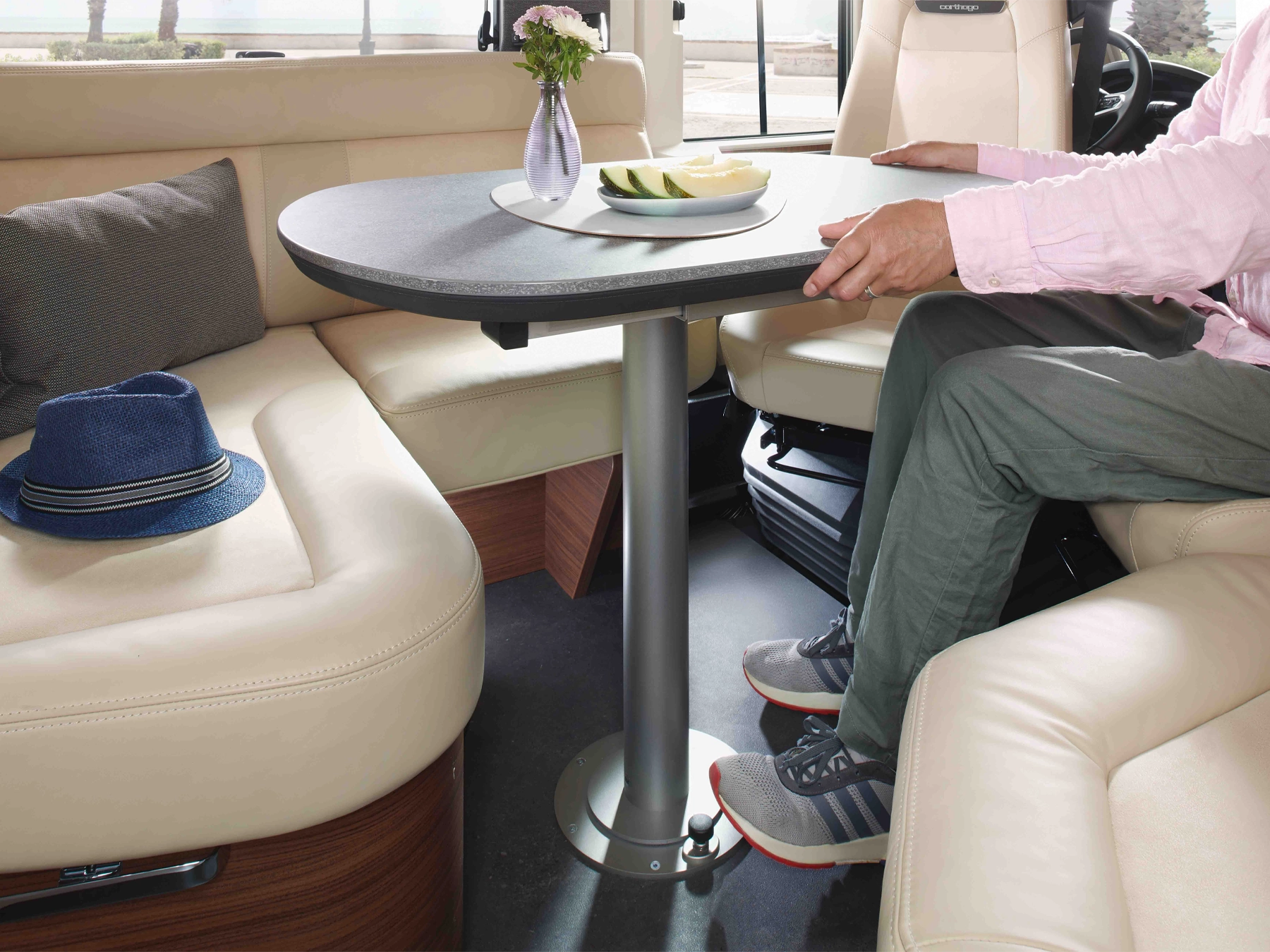

- 360° living area table, rotatable using a foot pedal and movable in two directions

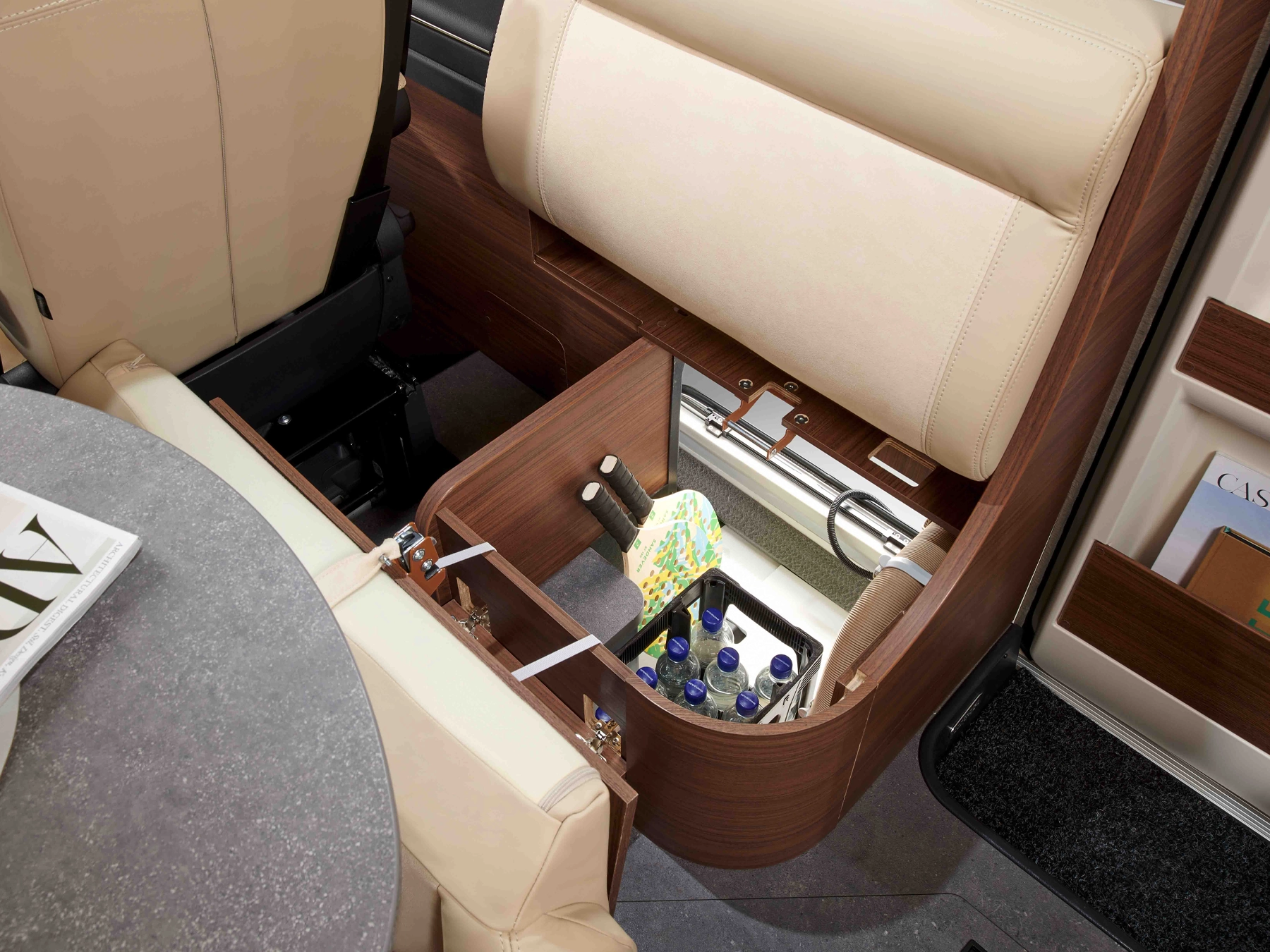

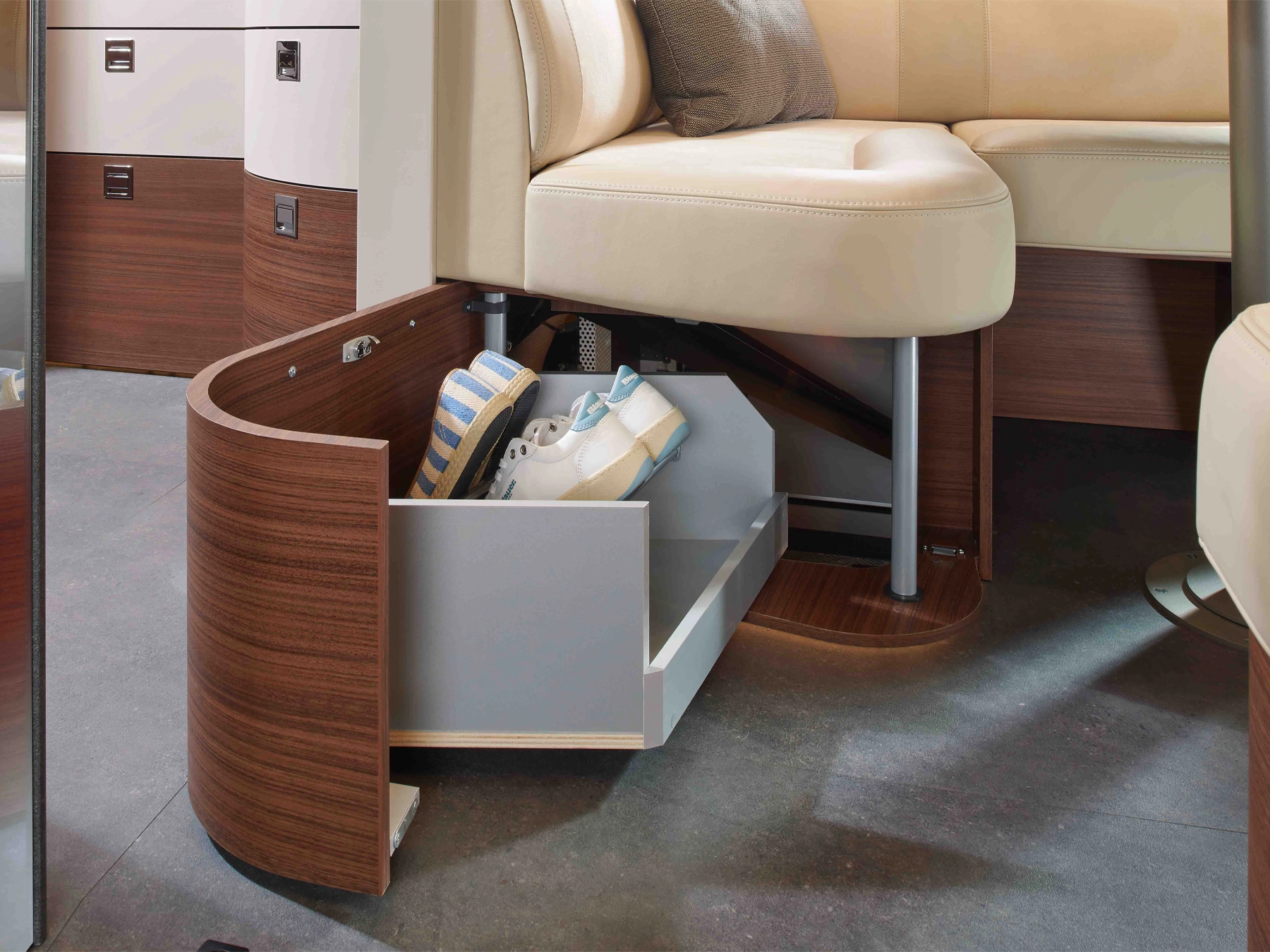

- Swivel-out shoe cabinet with storage system in bench seat base, including LED accent light
- Seat upholstery with multilayer premium foam core and back support function
- “Durafix” double connecting technology: furniture parts screwed together and mortised
- Hatch closer with soft closing mechanism

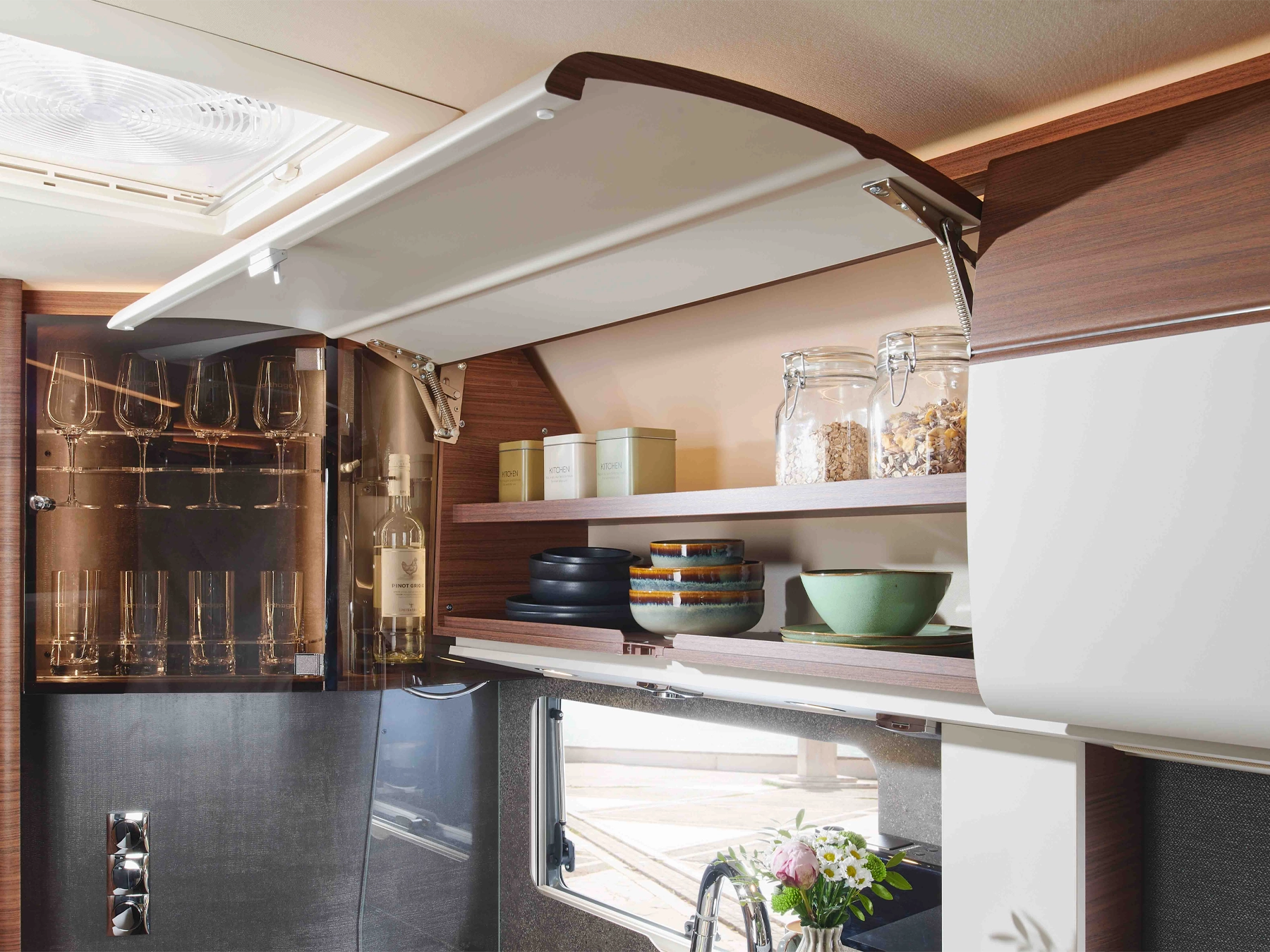

- Kitchen

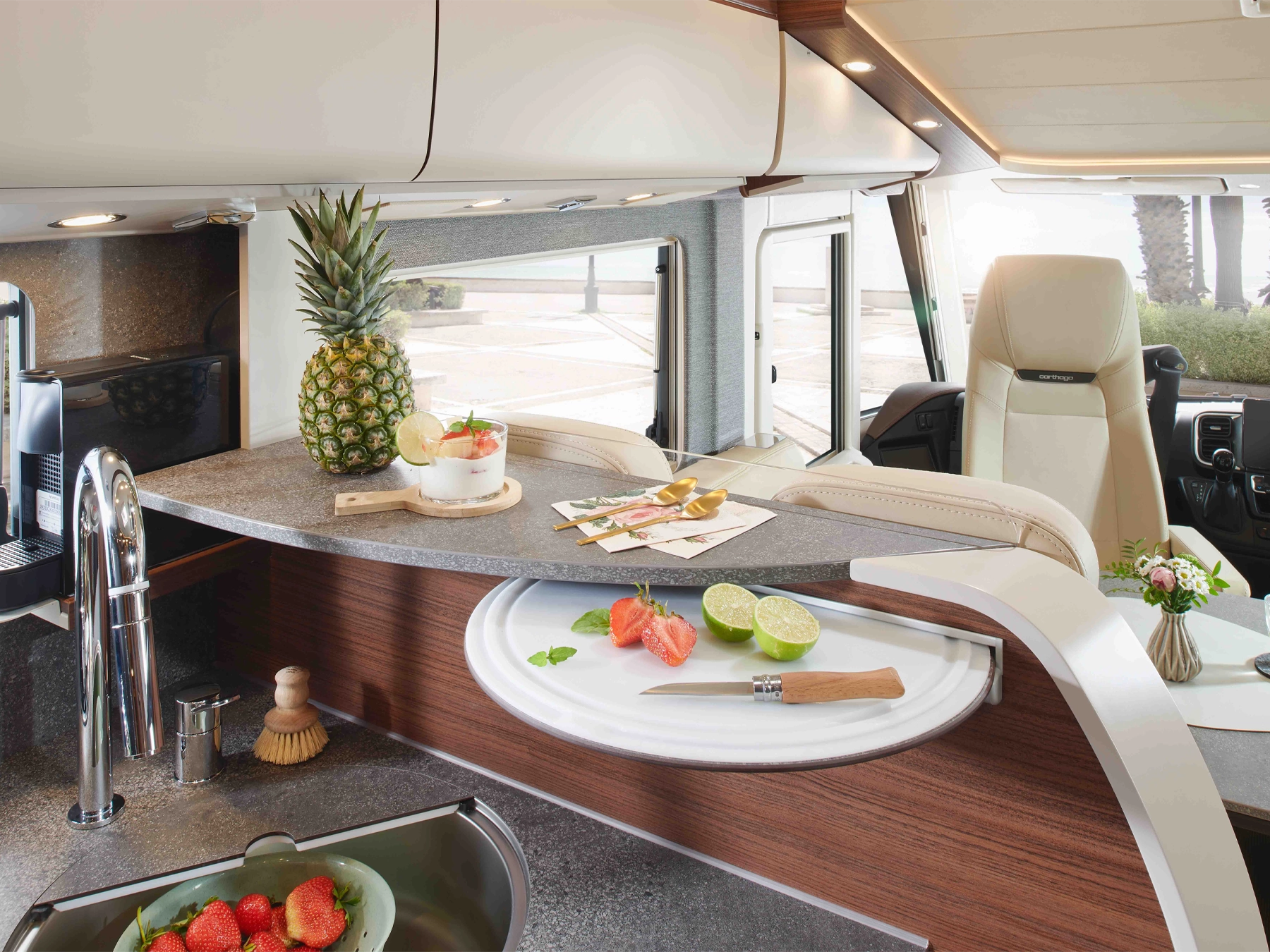

- Raised kitchen counter as visual room divider and additional worktop

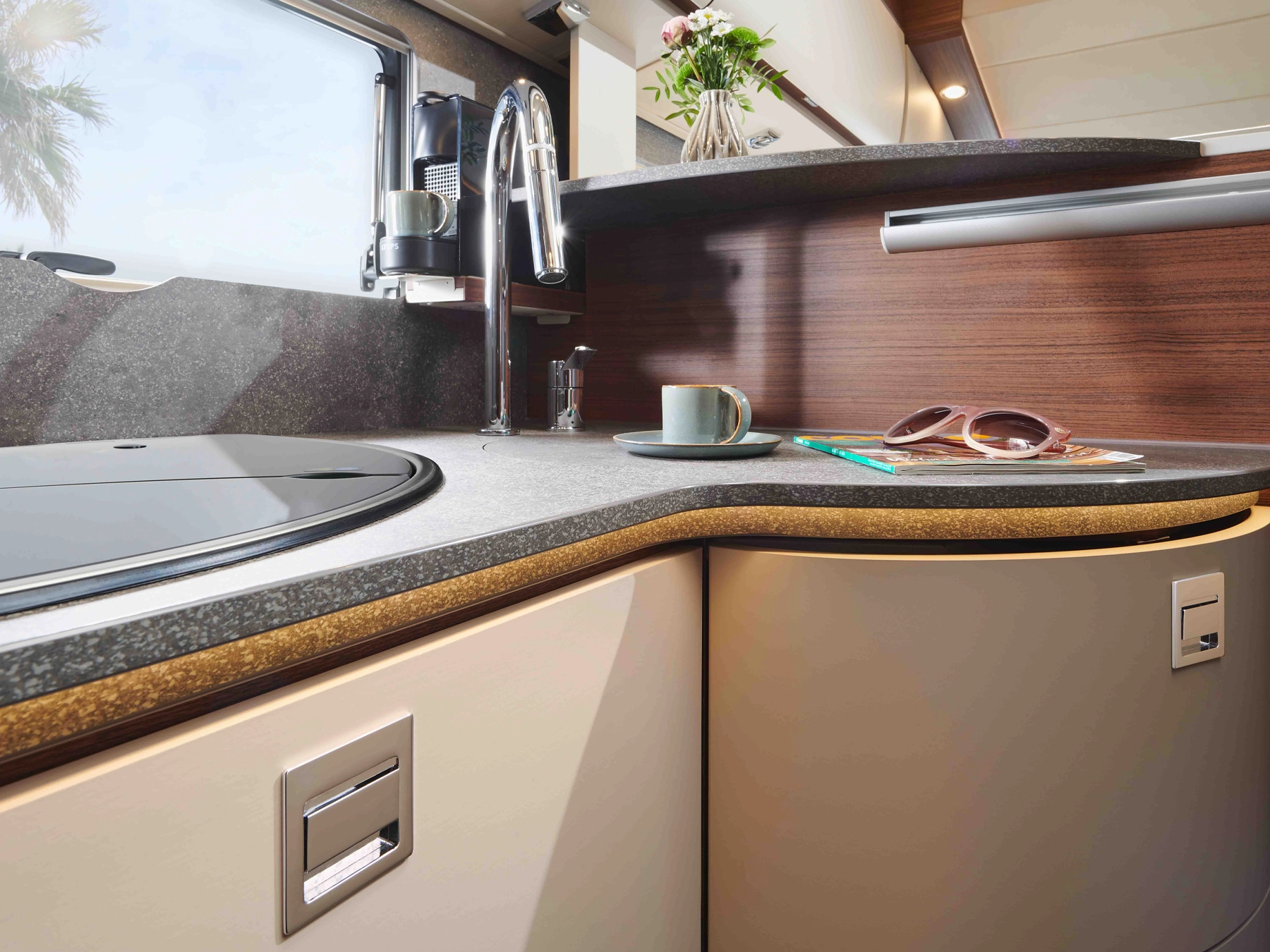

- Kitchen work surface and rear wall in grey, natural stone look
- Worktop lit from underneath with LED light strip

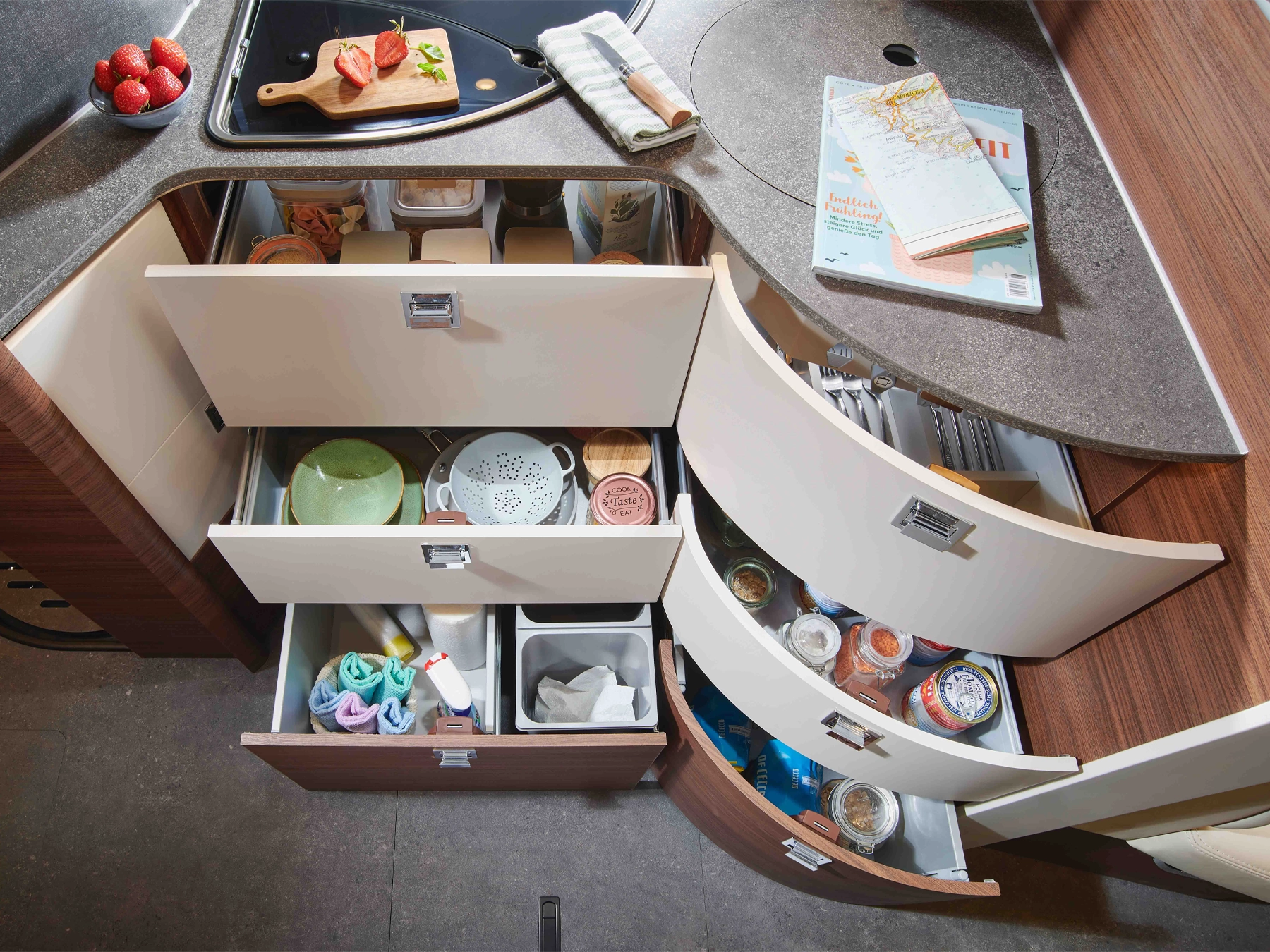

- “Easy glide” kitchen drawers with roller-mounted and soft-close mechanism
- Separate waste bins in separate hygiene area

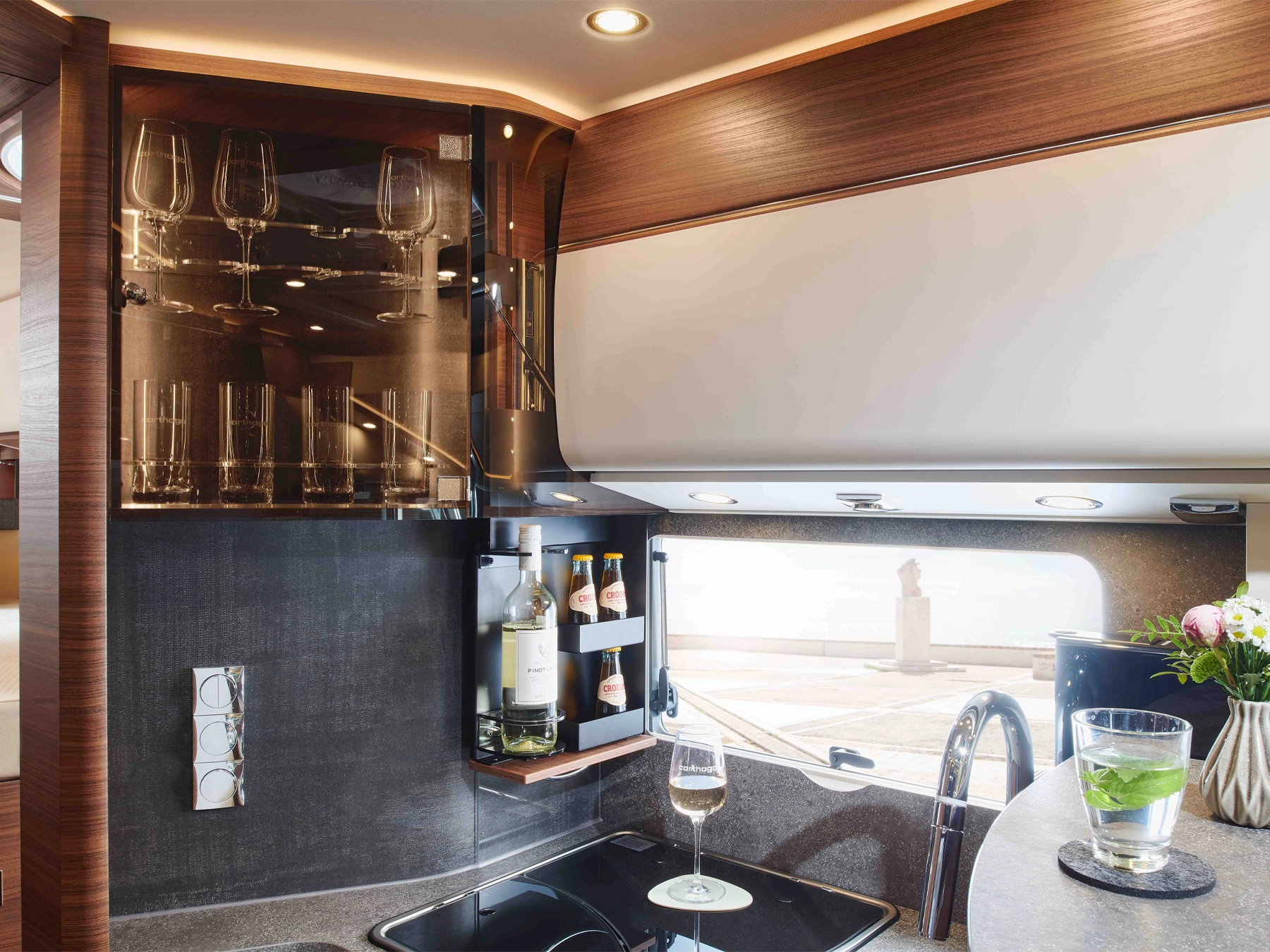

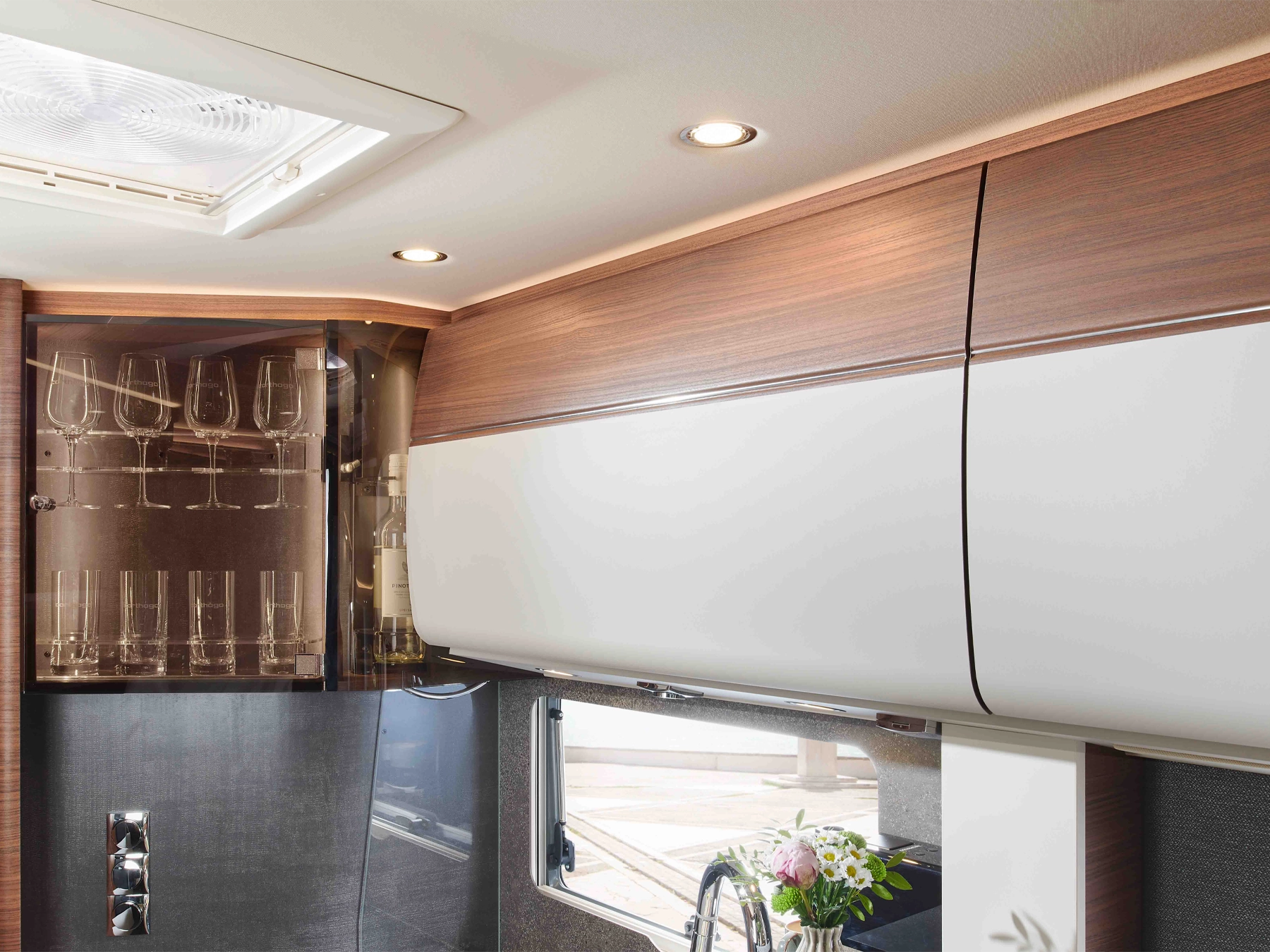

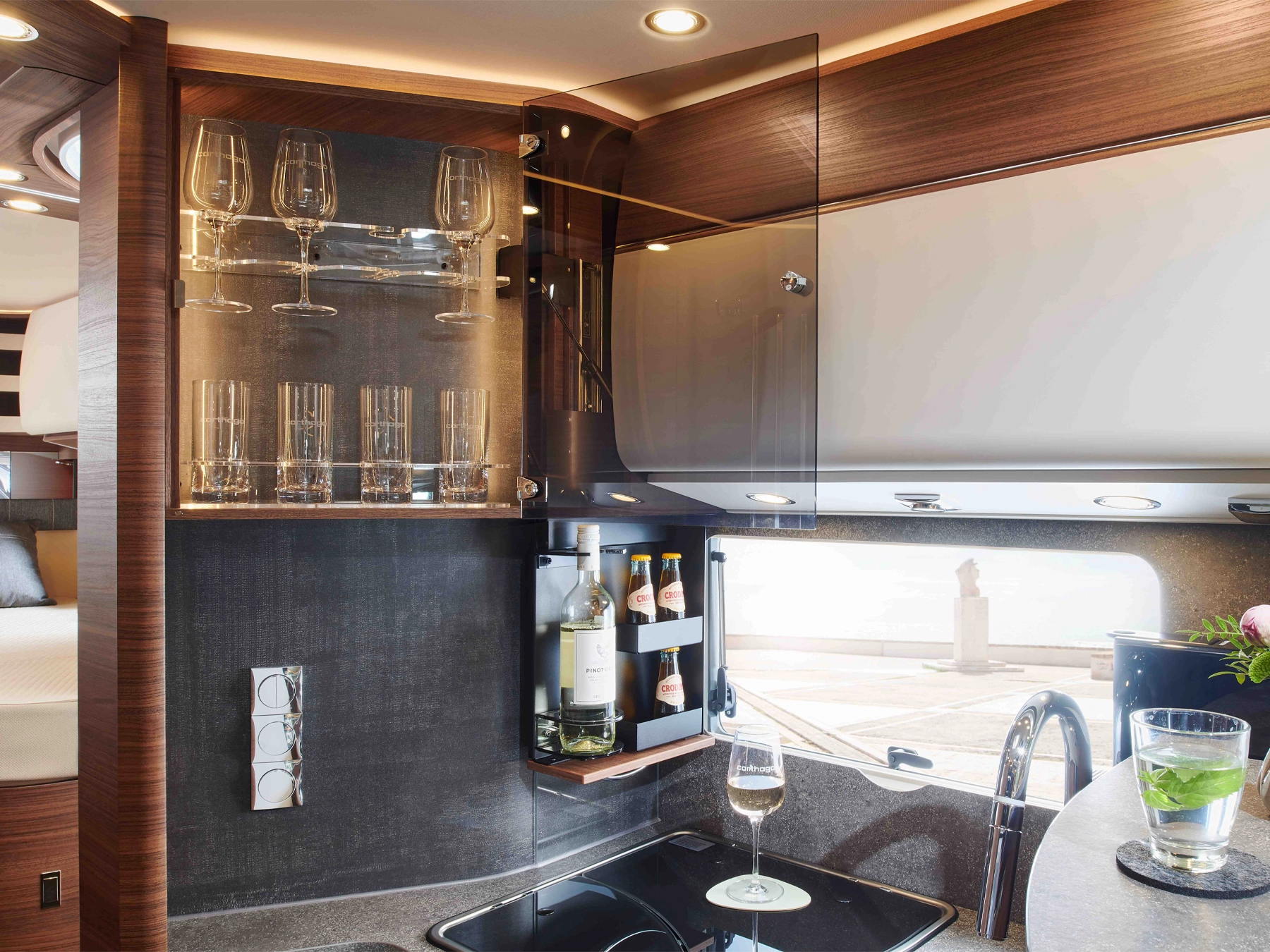

- Illuminated, designer bar cabinet on rear wall of kitchen with integrated pull-out wine bottle cabinet
- Separate cutlery drawer with organiser, bottle holder

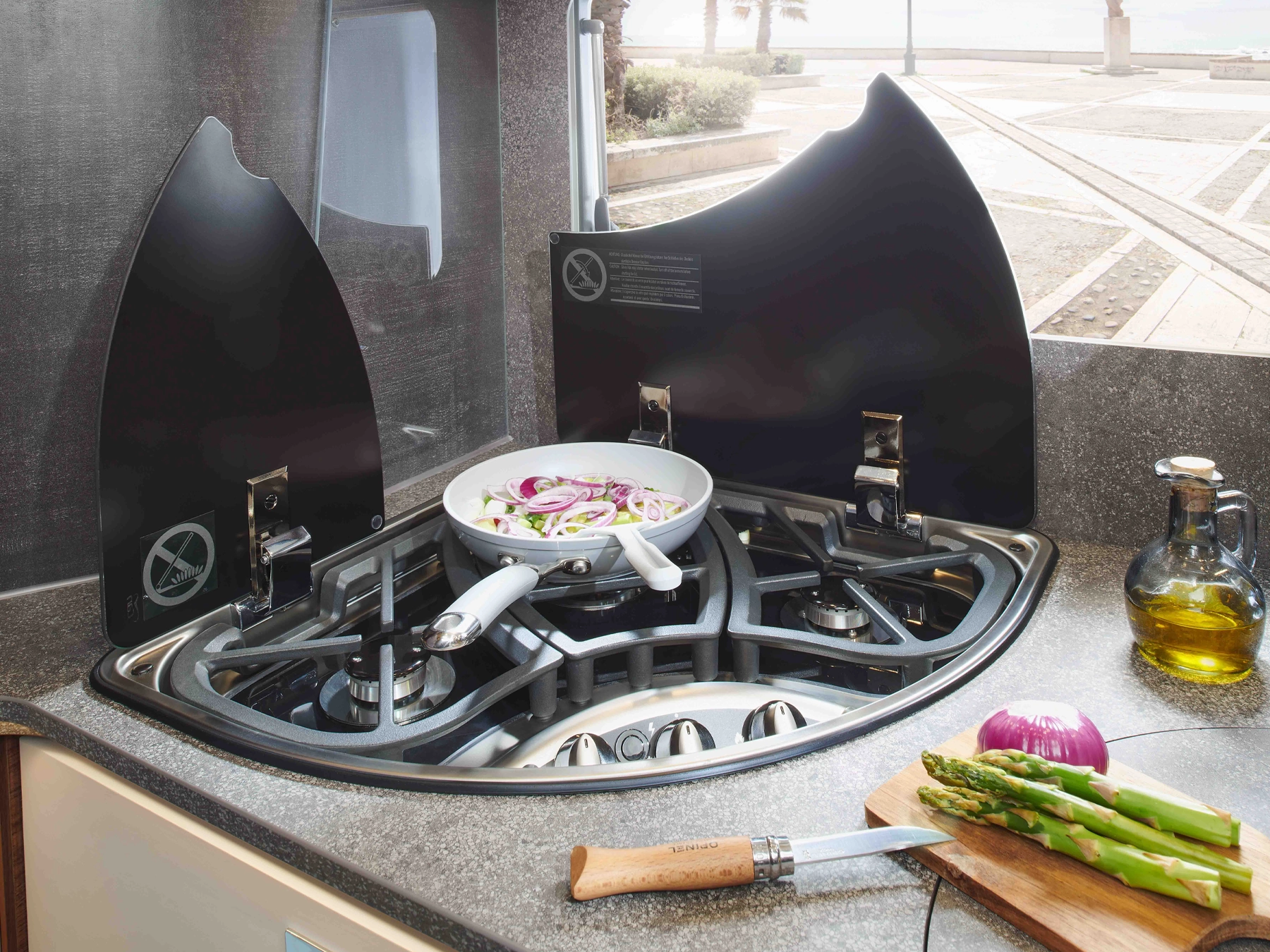

- 3-ring hob with divided glass cover for additional storage space with robust cast-iron trivet and easy-clean glass base
- Round stainless steel sink embedded in work surface with multifunctional sink cover including wall holder for extending size of worktop
- Designer mixer tap in metal with pull-out spray head
- Large refrigerator with door opening on both sides, separate freezer compartment, automatic energy source selection 12 V / 230 V / gas mode

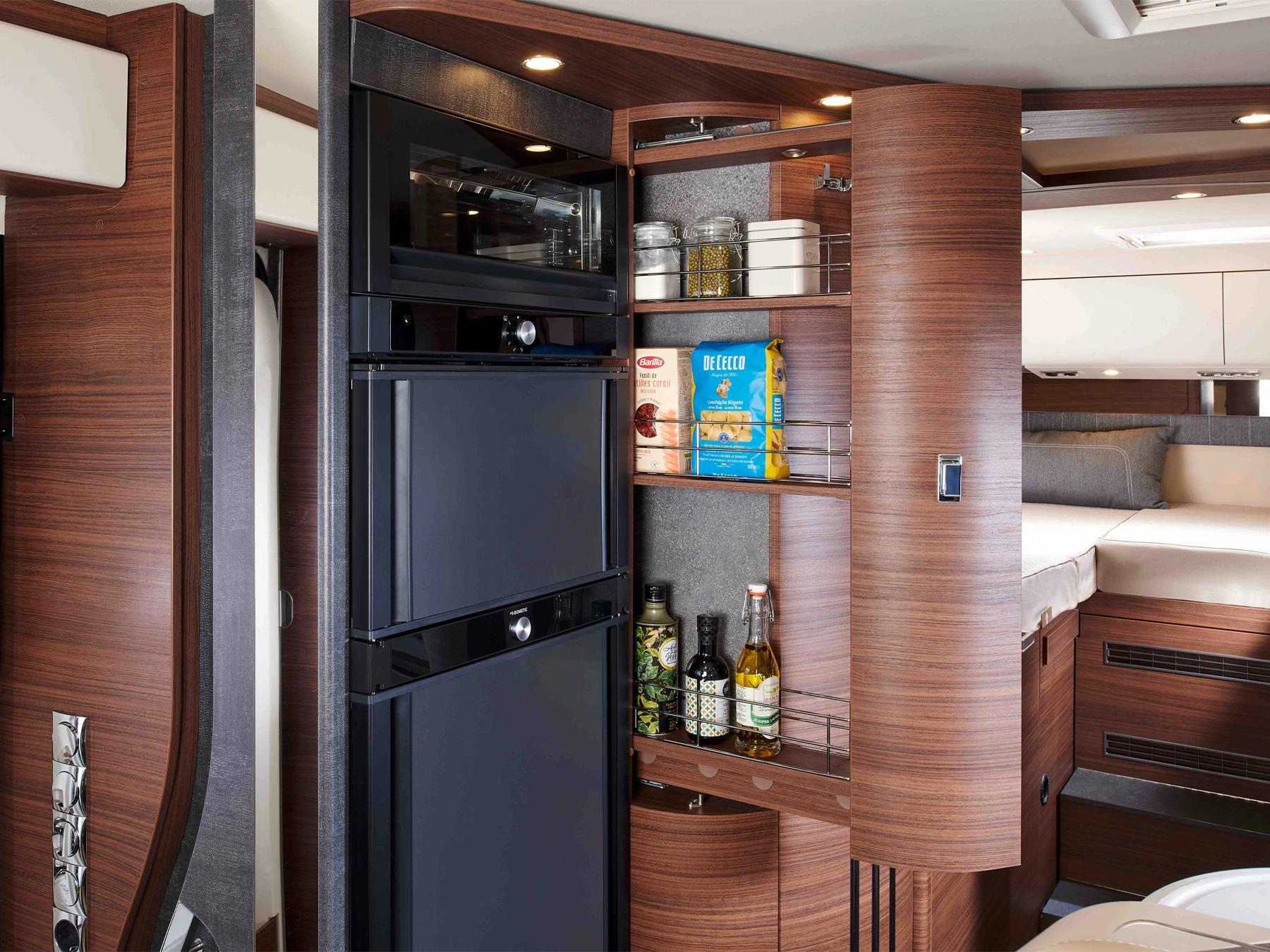

- Slide-out storage cabinet (floor-to-ceiling in 5.9 XL LE, 6.2 XL QB models)
- Electric roof light fan
- Bathroom | Changing Room
- Dressing room & room partitioning
- Dressing room with lockable partition door or solid wood sliding door (XL models) to living area
- Solid wooden sliding door in front of sleeping area (4.9 LE, 4.9 LE L, 5.0 QB L models)
- Pull-out TV wall and room divider in front of sleeping area (5.0 QB models)
- Solid wood sliding door in front of sleeping area including full length mirror (XL models)

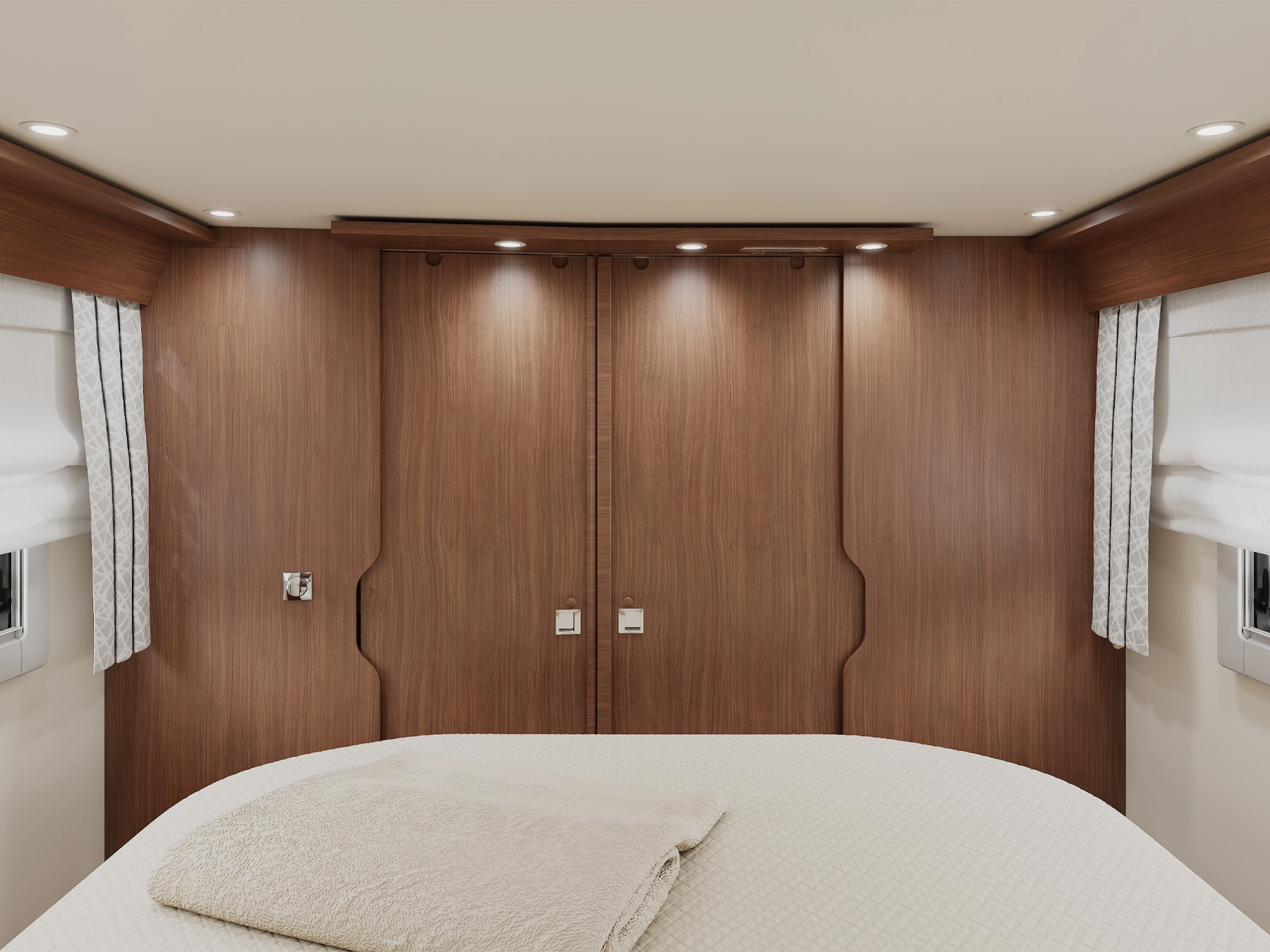

- Floor-to-ceiling wardrobe with two clothes rails and shelf integrated in the dressing room (4.9 LE L, 5.0 QB L models, XL models)

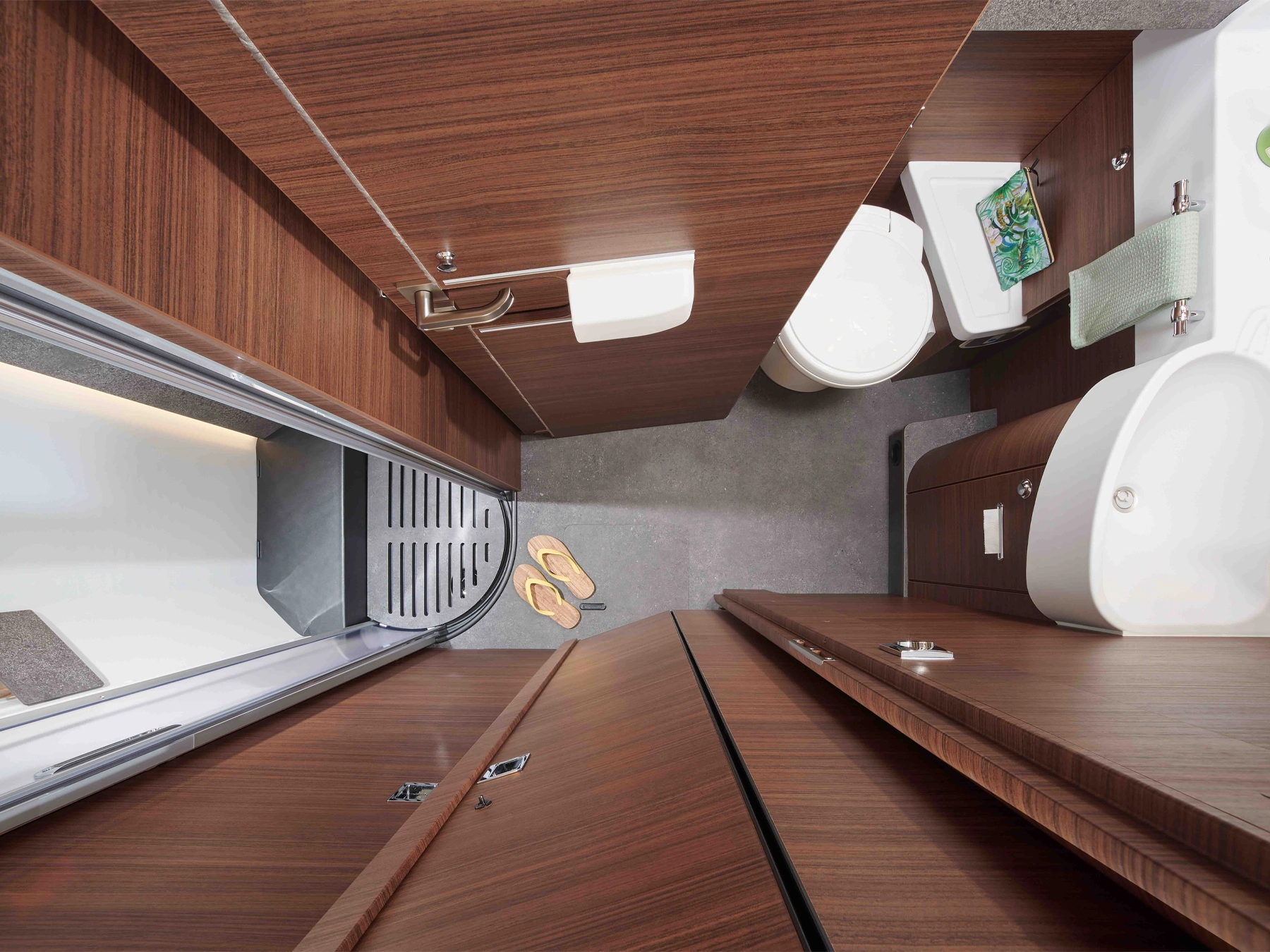

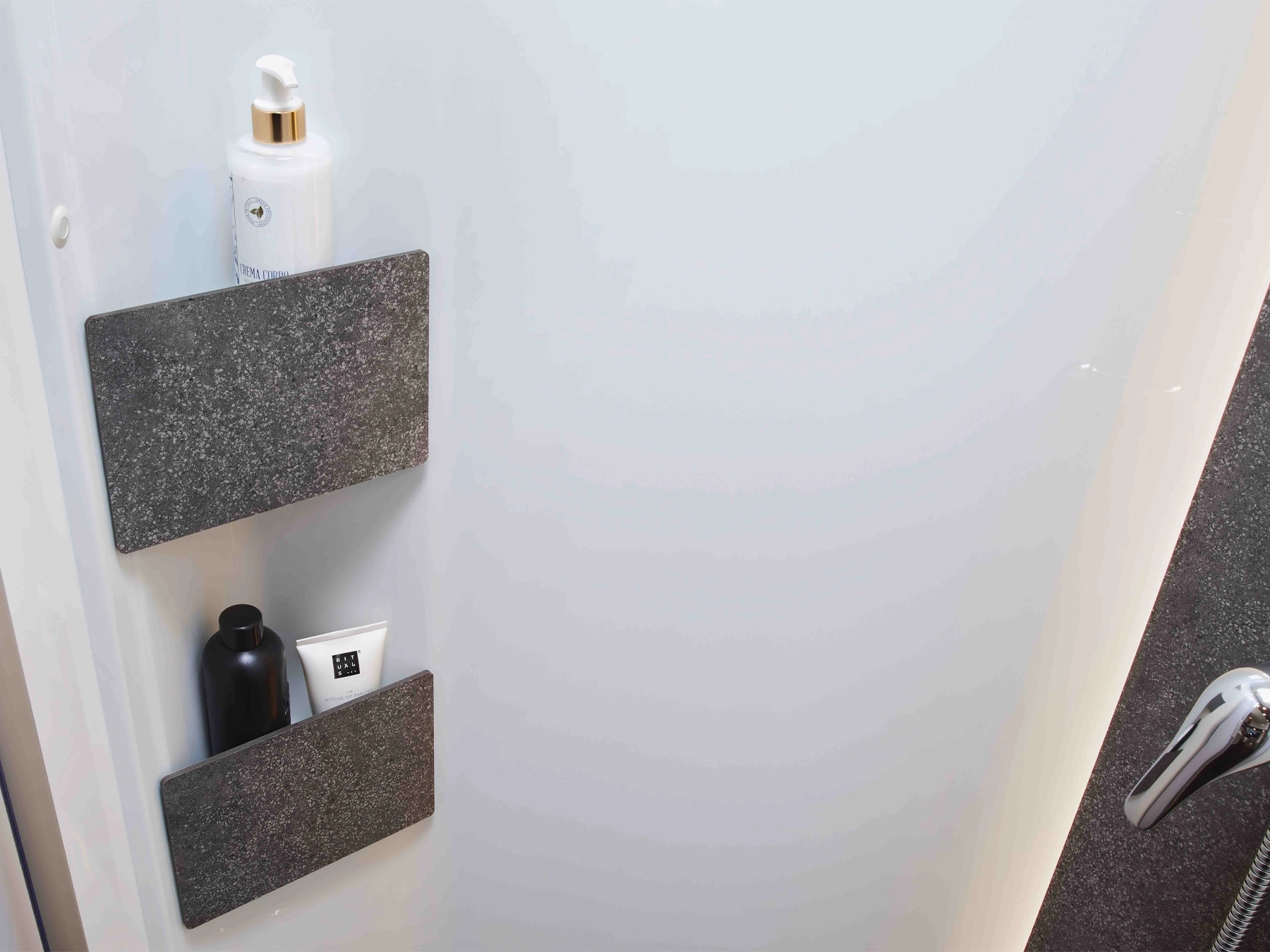

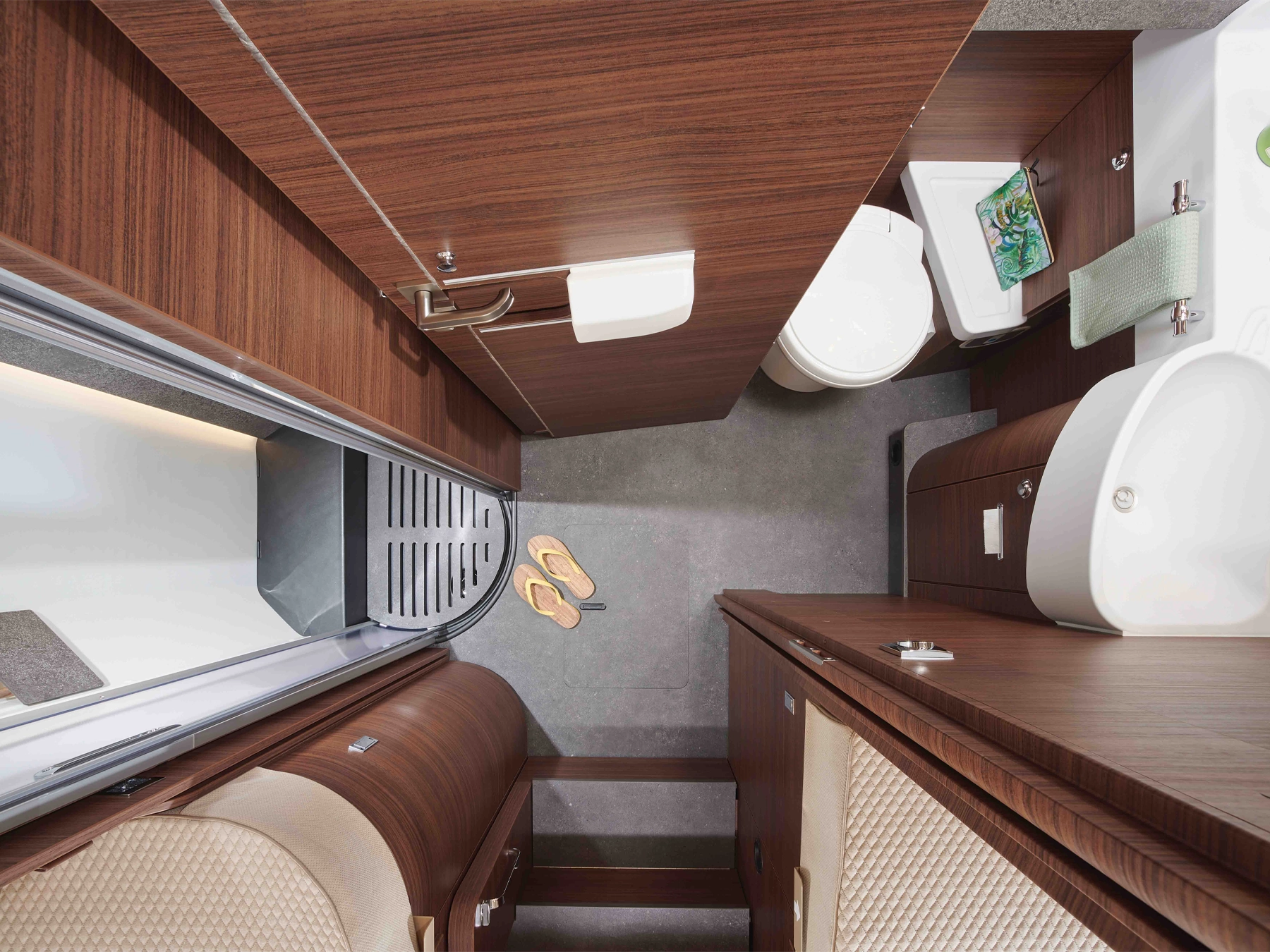

- Luxury bathroom with separate shower room
- “One level” step-free shower access
- Towel rail above round shower
- Waterproof shower floor inlay in same design as living area floor (5.0 QB model: can be removed for showering)
- Hand-held shower head height-adjustable on chrome rail
- Roof light in shower room
- Mini Heki skylight in washroom

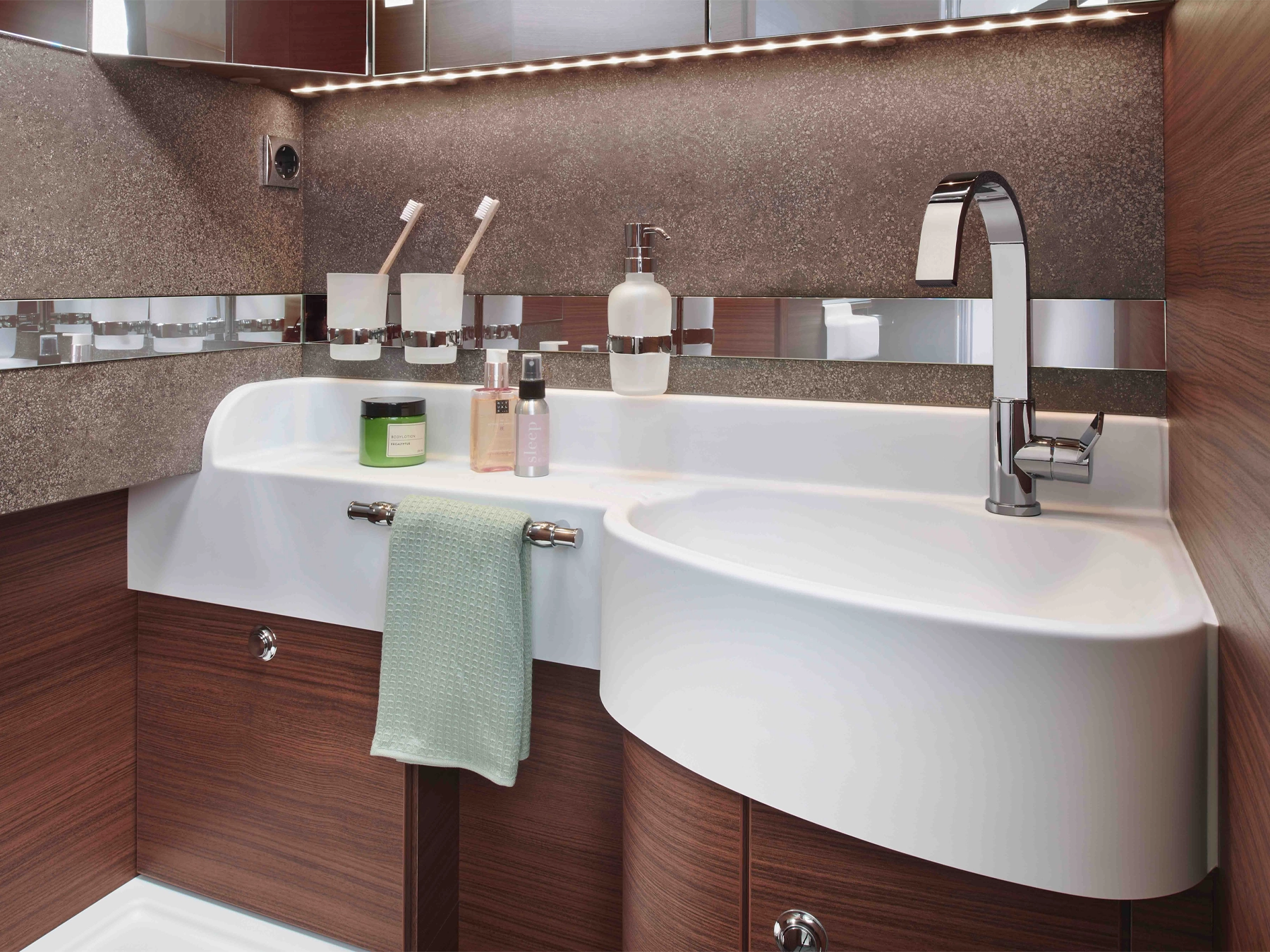

- Washbasin base cabinet unit with toilet roll holder, mirrored storage cabinet
- Luxury bathroom door with 3-way function (washroom double door for toilet and room partitioning from living area)
- XL bathroom with XL room concept
- Open wash area and designer washbasin
- Mini Heki skylight
- XL round shower with waterproof shower floor inlay in the same design as living area floor and step-free shower access including roof light with towel rail
- Hand-held shower head height-adjustable on chrome rail
- Additive hot water underfloor heating: additional heating coils in double floor area of bathroom
- Micro-Heki skylight in toilet
- Separate toilet with side window, towel warmer as well as extra legroom
- Sleeping Area
- Drop-down bed above driver’s cab area
- Slatted frame and high-quality mattress
- Extra-low positioning of the bed: access via side seat
- Wobble-free support when lowered, bookshelf and LED spotlights
- Partition curtain between drop-down bed and living area
- Mini-Heki skylight

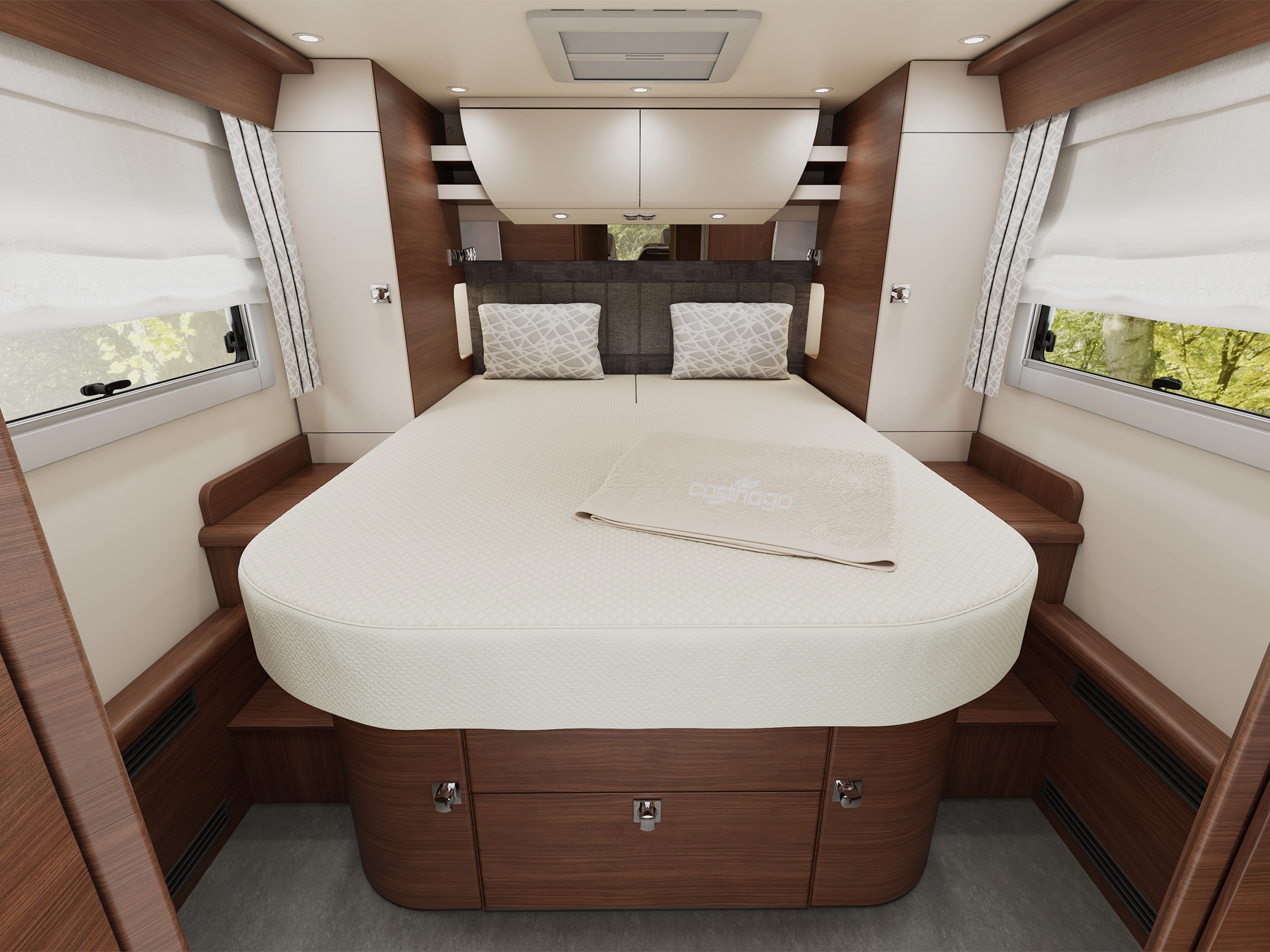

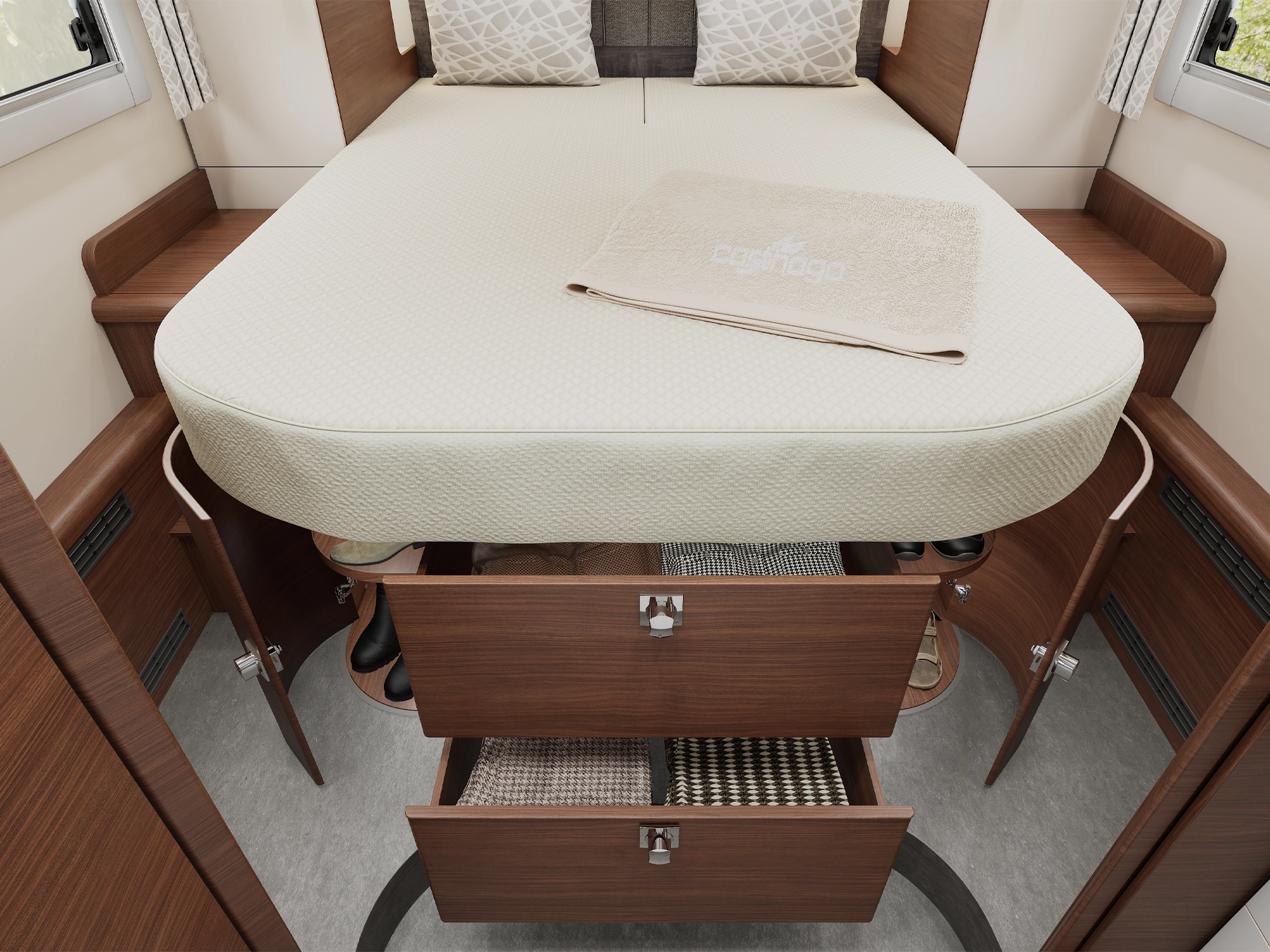

- Fixed beds in rear
- Carawinx medically endorsed point elastic sleeping system, heated and ventilated
- 7-zone, high-quality cold foam mattress
- Mini-Heki skylight
- Raisable head section
- Habitation window on driver’s and passenger’s sides
- On-Board Technology
- Water
- Fresh water and waste water tank in heated double floor, cleaning opening via living area floor hatches or scooter garage (depending on model)
- Central water drain in central double floor
- Low-maintenance pressurised water pump system
- Waste water hose kit for easy disposal
- Gas
- External gas bottle compartment in low position
- Holds 2 x 11 kg gas bottles
- Gas isolation taps in kitchen area
- Electrical system
- Electrical centre in scooter garage including charger, fuses, fuse protection, 16 A automatic charger with automatic cut-off in the event of low voltage
- Heated battery centre with 2 x 80 Ah gel batteries, in double floor, access via exterior storage compartment on passenger side (LHD), main power switch (in XL models in wardrobe on passenger side (LHD))

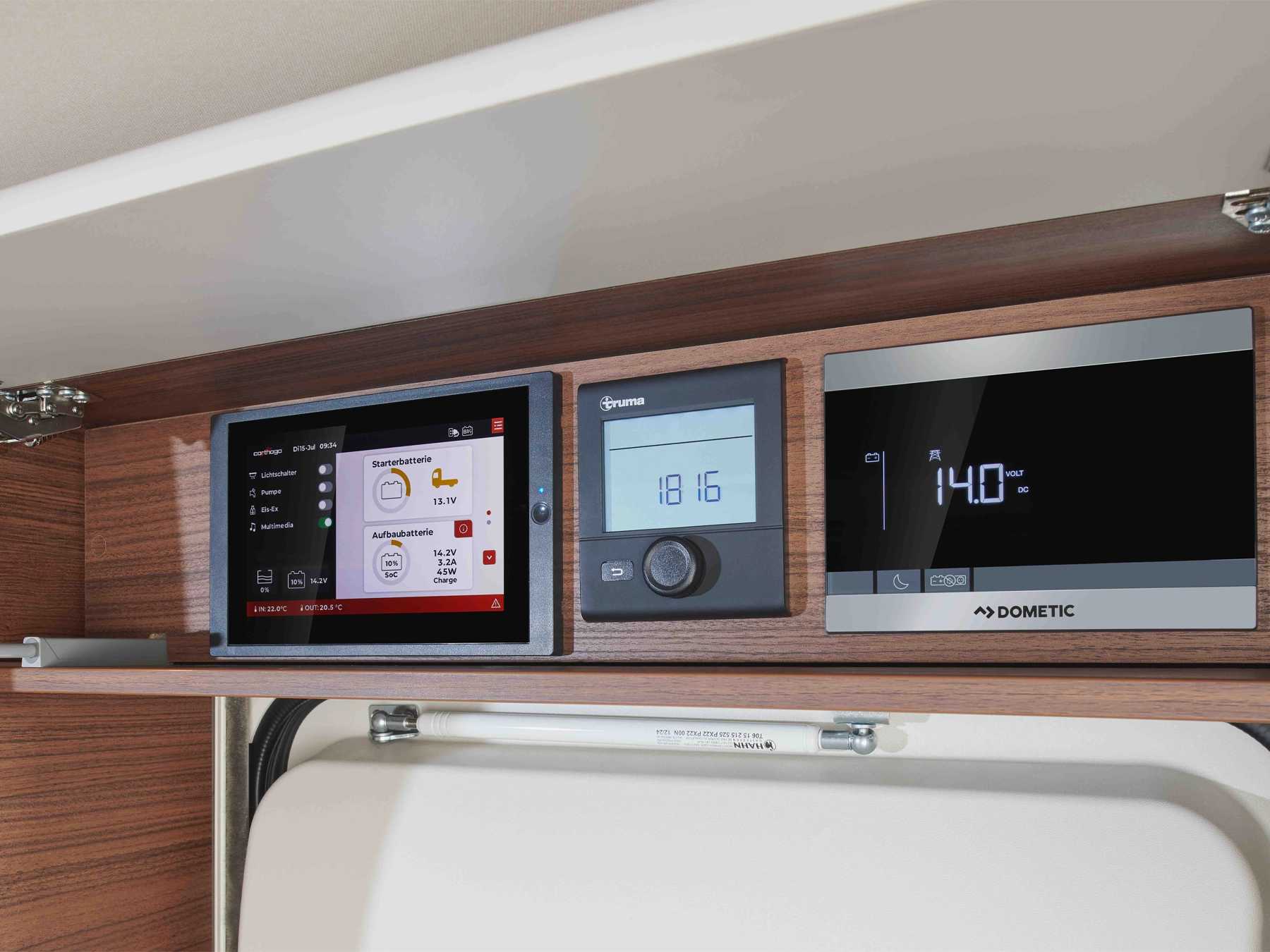

- Truma CP+ digital control panel for hot air heating, behind technical panel above habitation door
- 7-inch digital control panel with capacitive touch display for viewing fill levels and on-board controls behind technical panel above habitation door
- 230 V socket in seating area, entrance area, kitchen, bathroom, scooter garage
- 12 V socket in cab (Mercedes-Benz: 1x)
- USB socket in cab (Mercedes-Benz: 1x)
- Innovative light concept
- Lighting system with numerous LED spotlights in cab, living area and dressing room with stepless dimming
- LED ambient lighting in the living and sleeping areas
- LED accent light with backlighting in the entrance area
- TV
- Pre-wiring for 32″ LED flatscreen TV
- Heating Technology
- Hot air vents in cab, dashboard front, entry doors, living area, double floor and scooter garage
- Dashboard with targeted heating with panel heating effect
- Underfloor heating effect due to heated double floor with heat storage
- XL models: Alde hot water heating with separate heating circuit, numerous convector heaters in cab, dashboard, living area, double floor and scooter garage
- Additive hot water underfloor heating: additional heating coils in double floor area of XL bathroom
Options Fitted to this Carthago Chic C-Line I 5.0 QB L for the UK Include:
- Super Package consisting of:
- Tempmatic semi-automatic air conditioning system
- Cruise control Standard
- Charge booster
- Front axle with increased load bearing capacity
- Leather steering wheel with multifunctional buttons option (incl. leather gear stick for manual transmission)
- Instrument cluster with colour display
- Rain sensor
- Electric handbrake
- Cab comfort seats with tilt and height adjustment (front / rear)
- Wind-down rear steadies to prevent swaying when stationary
- MBUX 10.2″ multimedia system incl. sat nav and DAB+
- Traffic sign assist

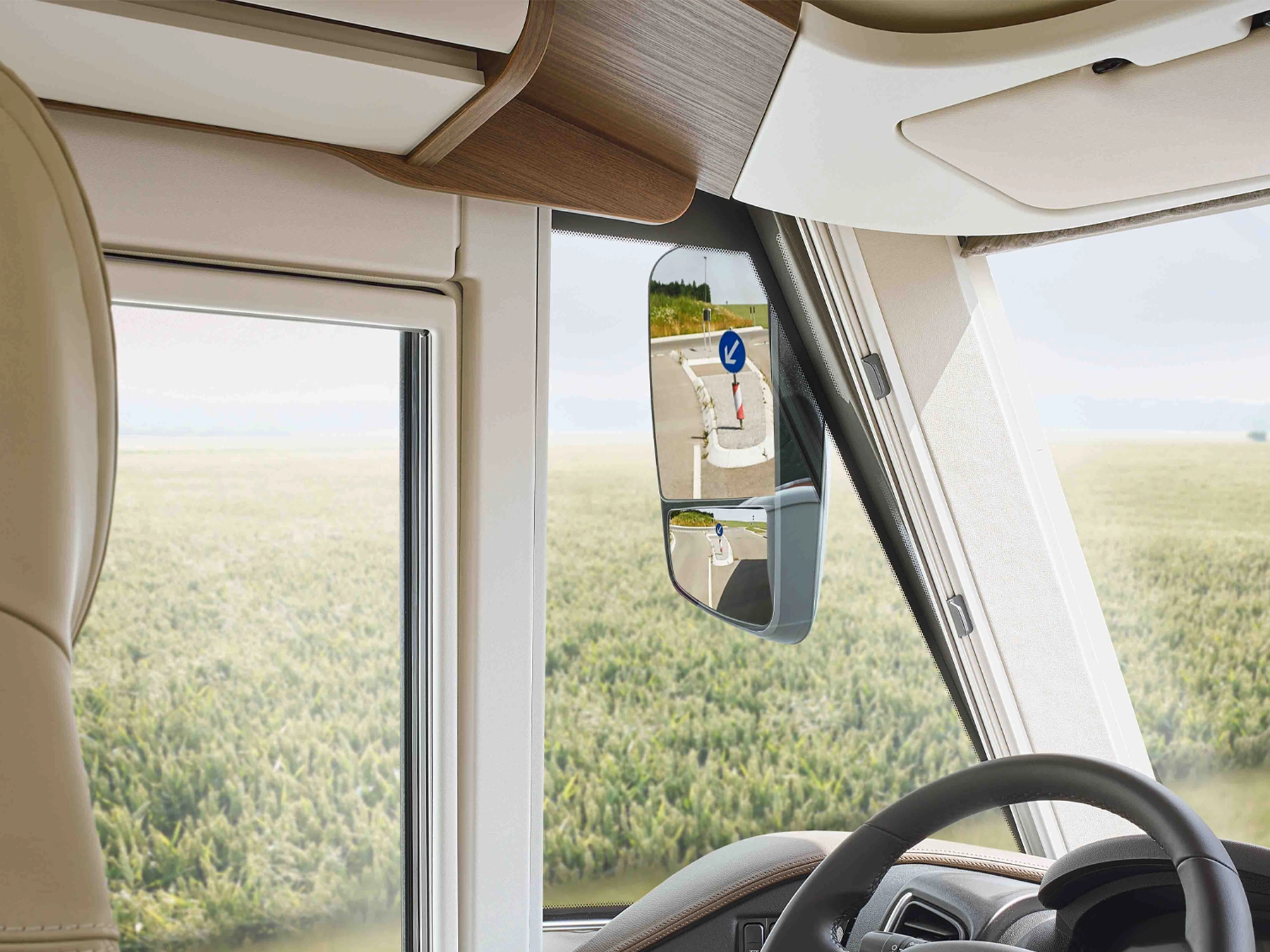

- “Carthago best view” bus mirror system with entrance lighting, electrically adjustable and heatable
- XL habitation door “premium two 2.0” (width 63 cm) with double locking, window and insect screen blind
- Central locking for driver’s cab doors and habitation door, with “coming home” function
- Scooter garage upgrade with needle felt, luggage nets, fastening system
- SOG toilet ventilation via roof flue
- Truma DuoControl CS
- Designer bar cabinet with glass holder and glass set above kitchen
- USB socket in overhead storage cabinet above rear bed
- Pre-wiring for solar energy system
- Pre-wiring for satellite system
- Pre-wiring for reversing camera (single lens)
- Reversing camera system with single lens and 7″ colour monitor at side of dashboard
- Heating | Air Conditioning
- Truma Combi 6E (additional electric heating element 2 x 900 Watt / 230 V)
- Living Area Materials
- Amalfi style environment
- London 25 fabric
Extra Items Available for the Carthago Chic C-Line I 5.0 QB L Motorhome
Order your Carthago Chic C-Line I 5.0 QB L to your own specification. Choose from Carthago’s accessory packs and optional extras to suit you.
Use the Carthago Chic C-Line I 5.0 Configurator (click here) to tailor your model.
When your configuration is complete, contact us to order your Carthago Chic C-Line.
*Please Note: This vehicle listing contains library images; vehicle appearance may differ.*
