Carthago C2 Tourer I 147 RB LE L Comfort Specification
The new C2 integrated model range on a Mercedes-Benz Sprinter chassis impressively demonstrates how comfort and lightweight construction can be implemented in a smart way.
Motorhome Technical Data:
- Mercedes-Benz Sprinter
- 6-speed manual transmission
- Diesel 2.0l (150 HP / 110 kW) Euro VI E
- Wheelbase: 4,135mm
- 1,980mm headroom in living area
- 1,200mm garage interior height
- Technically permissible gross vehicle weight: 4,200kg
- Rear bed dimensions: 1,900/2,000x850mm
- Drop down bed dimensions: 1,900×1,600mm
- Seating area bed dimensions: 1,940×985/550mm
- 153l fridge with 29l freezer
- Heating system: Truma Combi 6 UPGRADED TO TRUMA COMBI 6E (ADDITIONAL ELECTRIC HEATING ELEMENT 2x 900 WATT / 230V)
- 150l fresh water tank
- 140l waste water tank
- Battery capacity: 80 Ah UPGRADED TO 90 AH LITHIUM-ION BATTERY
- Sockets: 5x 230V / 1x 12V / 1x USB
Carthago C2 Tourer I 147 RB LE L Comfort Equipment Includes:
- Base
- Engine: 2.0 l diesel with Adblue (22 l), 150 HP / 110 kW, 4 cylinders, 330 Nm, Euro VI E, 6-speed transmission, front-wheel drive
- AL-KO low frame Carthago special
- All-weather tyres (M+S)
- Start / Stop system
- Keyless Start incl. Start/Stop button
- Driver / passenger airbag
- Side wind assistant, Hillholder, ABS, ASR, EBV, ESP
- Active Brake Assist and Active Attention Assist
- Driver and passenger cup holders, glove compartment on passenger’s side
- Hinged lid for storage compartment
- Automatic driving light control
- Mercedes-Benz emergency call system, breakdown management
- 65-litre fuel tank UPGRADED TO 92 LITRE FUEL TANK
- 16-inch steel wheels
- Dipped headlights with LED technology
- LED daytime driving lights
- Mud flaps on front and rear axle
- Pre-wiring (cable set) for main cabin door central locking system
- Electric hot air auxiliary heating in driver’s cab
- Fix & Go repair kit
- “Carthago best view” bus mirror system in black, adjustable and heatable
- Liner Premium-Class Body Construction
- 10-year water ingress guarantee
- Wood-free bodywork with GRP roof and floor covering
- Roof/wall connection via curved roof and frame member
- Roof system rails at side with rainwater deflection function
- Side and rear walls with aluminium on the interior and exterior
- RTM hard foam insulating core in roof, floor and side wall
- Floor to side wall connection using aluminium frame member bonded over its entire surface with additional cold stop
- Total wall and roof thickness, 38 mm
- Exterior hatches made from original “Carthago Isoplus” side wall material
- Internal/external flap seal, outer seal as water spray protection
- Exterior hatches and main cabin door with internal hinges
- Fuel tank flap flush-mounted in side wall
- Segmented side skirts made from aluminium profile
- Dynamic design rear
- Carthago rear lights with Carthago “C” branding in LEDs
- Seitz S4 habitation window, double frame with insulated glazing and no thermal bridge, insect screen blind and pleated blackout blind
- LED exterior light above main cabin door with rain deflector
- Electrically extending entrance step for main cabin door with warning buzzer
- Driver’s Cab
- Dashboard sloping steeply towards front (view of road surface 3.77 m)
- Pleated windscreen blind with insulating honeycomb structure
- Pleated blackout blinds behind side windows (operated from the side)
- Front mask in GRP, with double-shell insulation
- Driver’s cab door with security double locking, electric windows, rain gutter
- Soundproofing for engine compartment
- Aguti “Roadliner” driver’s and passenger’s comfort seats with Carthago label, in same material as living area, rotatable, with integrated seat belts and padded armrests
- Dashboard with practical sideboard
- Leather-covered bottom panelling for drop-down bed including sun visors, LED spotlights and storage compartments at the side
- Double Floor Storage Compartment
- Usable height up to 55.5 cm
- Through-loading storage compartment with lighting and heating

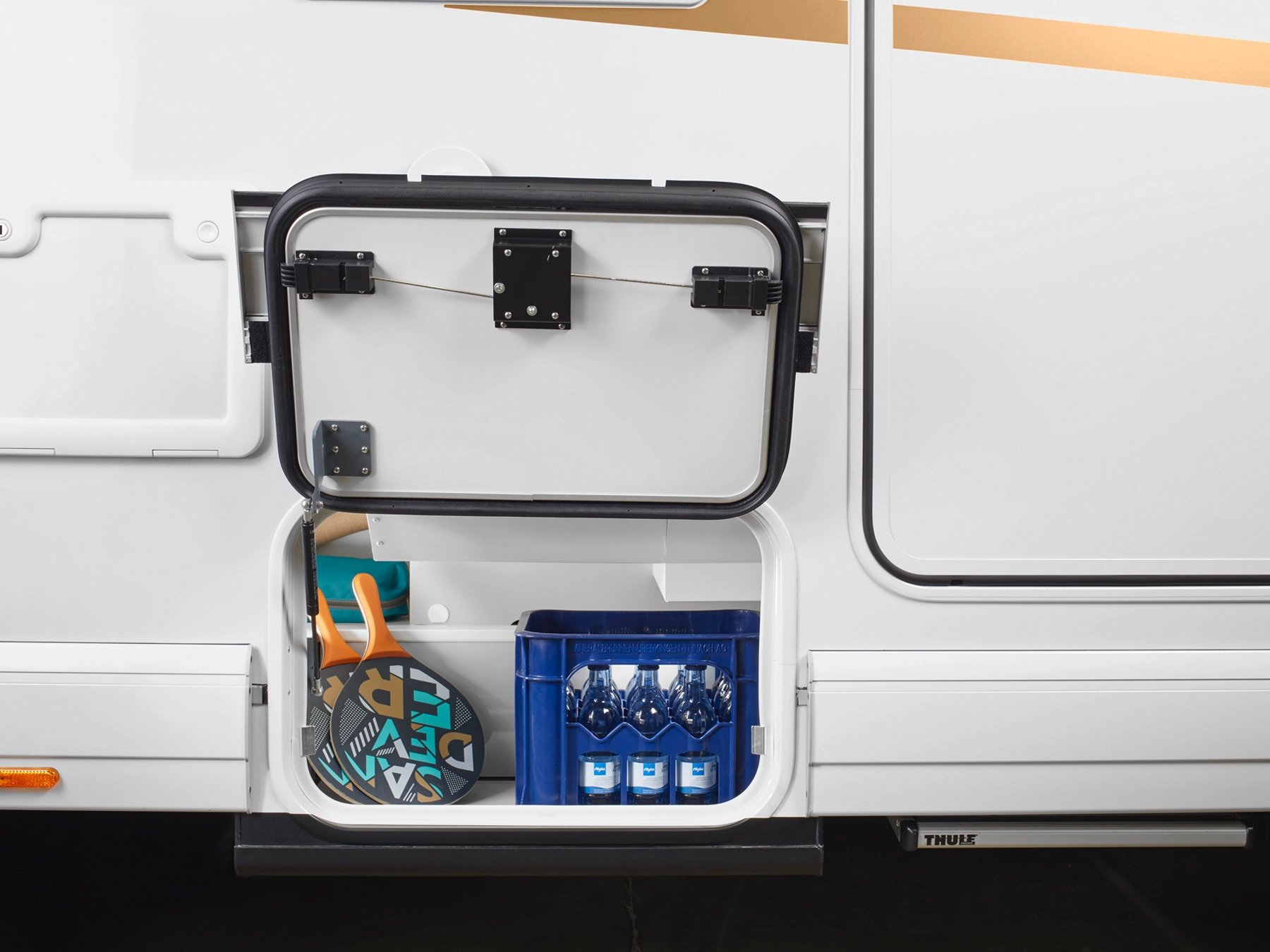

- Outside access via several large hatches

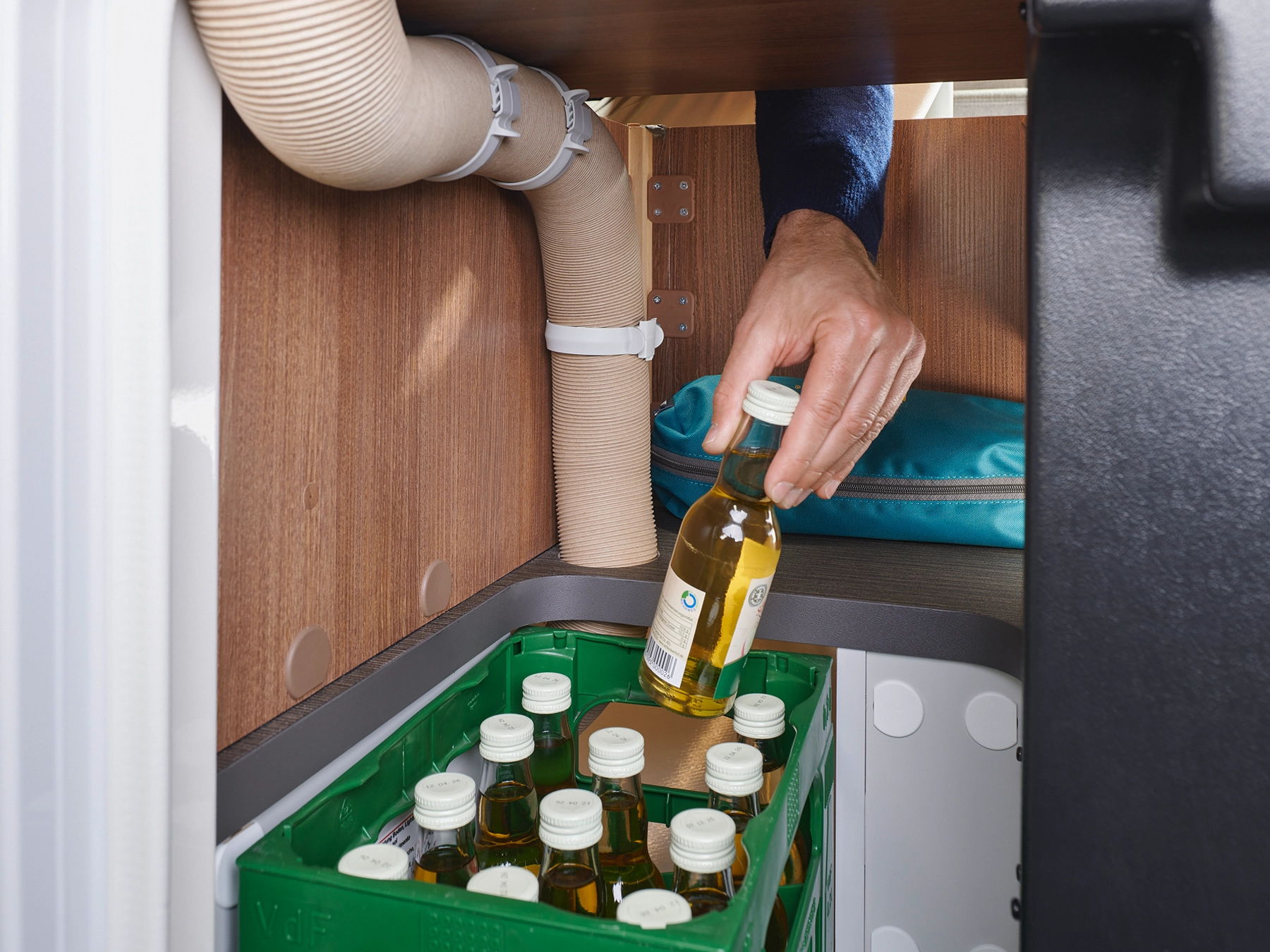

- Interior access via the L-shaped lounge seating area with patented fitting, swing-up side seat bench and via the large living area floor hatches in the entrance and kitchen area
- Central through-loading space (interior height 22 cm) with low double floor storage compartment (usable height 46 cm)
- Large Scooter Garage
- Scooter garage load capacity up to 350 kg
- Large garage door on passenger’s side, additional door on driver’s side
- Garage floor with GRP on top and bottom, anti-slip coating
- With all-around frost-proof insulation and heating
- Lashing system via aluminium support beam, including eight lashing eyes
- Interior Design
- Casablanca 2 world of style: noble cherry furniture finish with large overhead cabinet fronts in bicolour look in high-gloss ivory combined with modern accents in anthracite black
- Living Area
- Inside of walls and roof with microfibre, climate-regulating wall lining
- L-shaped lounge seating area with side bench seat
- 360° living area table, rotatable using a foot pedal and movable in two directions
- Swivel-out shoe cabinet with holding system in base of bench seat, including LED accent light
- Seat padding with multilayer premium foam core and back support function
- “Durafix” double connecting technology: furniture parts screwed together and mortised
- Hatches with soft closing mechanism
- Curtain system including removable decorative curtain
- Kitchen
- Kitchen countertop as visual room divider and additional worktop
- Kitchen worktop surface in scratch-resistant slate finish
- Worktop lit from underneath with LED light strip
- Kitchen unit with cutlery drawer
- “Easy glide” kitchen drawers with roller slides and soft-close mechanism
- Separate waste bins in separate hygiene area
- 3-ring hob with divided glass cover with robust, enamelled cast-iron trivet and glass base
- Round stainless steel sink embedded in work surface with multifunctional sink cover including wall holder for increasing size of work surface
- Water tap in metal design at practical pot height
- Kitchen rear wall in cream decorative glass
- Large fridge with door opening on both sides with separate freezer compartment, automatic energy source selection 12 V / 230 V / gas operation
- Mini-Heki skylight
- Bathroom | Changing Room
- Changing room with lockable washroom door or luxury washroom door to living area
- Solid wood sliding door in front of sleeping area
- Floor-to-ceiling wardrobe with clothes rails and shelf integrated in the changing room
- “One level” flush-mounted shower entrance
- Towel rail above round shower
- Shower mat in living area floor design, removable for showering
- Shower head height-adjustable on chrome rail
- Roof light in shower room
- Mini-Heki skylight in washroom
- Wash stand base unit with toilet roll holder, countertop washbasin, mirrored storage cabinet and mirror with indirect LED lighting
- Sleeping Area
- Drop-down bed above driver’s cab area
- Slatted frame and high-quality mattress
- Extra-low positioning of the bed: Access via side seat
- Wobble-free support when lowered, bookshelf and LED spotlights
- Dividing curtain between drop-down bed and living area
- Fixed beds in rear
- Two-part heated and ventilated slatted frame
- 7-zone, high-quality cold foam mattress
- Mini-Heki skylight
- Lengthways single beds / queen bed: Raisable head section
- Lengthways single beds
- Pull-out access steps including extended sleeping area
- Wardrobes beneath the beds, lowered into the double floor, with lift function and divided mattress
- All-around overhead storage cabinet
- On-Board Technology
- Water
- Fresh water and waste water tank in heated double floor, cleaning opening via living area floor hatch or scooter garage (depending on model)
- Central water drain in central double floor
- Low-maintenance pressurised water pump system
- Gas
- External gas bottle compartment in low position, exterior hatch with separate prop strut
- Holds 2 x 11 kg gas bottles
- Gas isolation taps in kitchen area
- Electrical system
- Electrical centre in scooter garage including charger, fuses, fuse protection, 16 A automatic charger with automatic shut-off in the event of low voltage

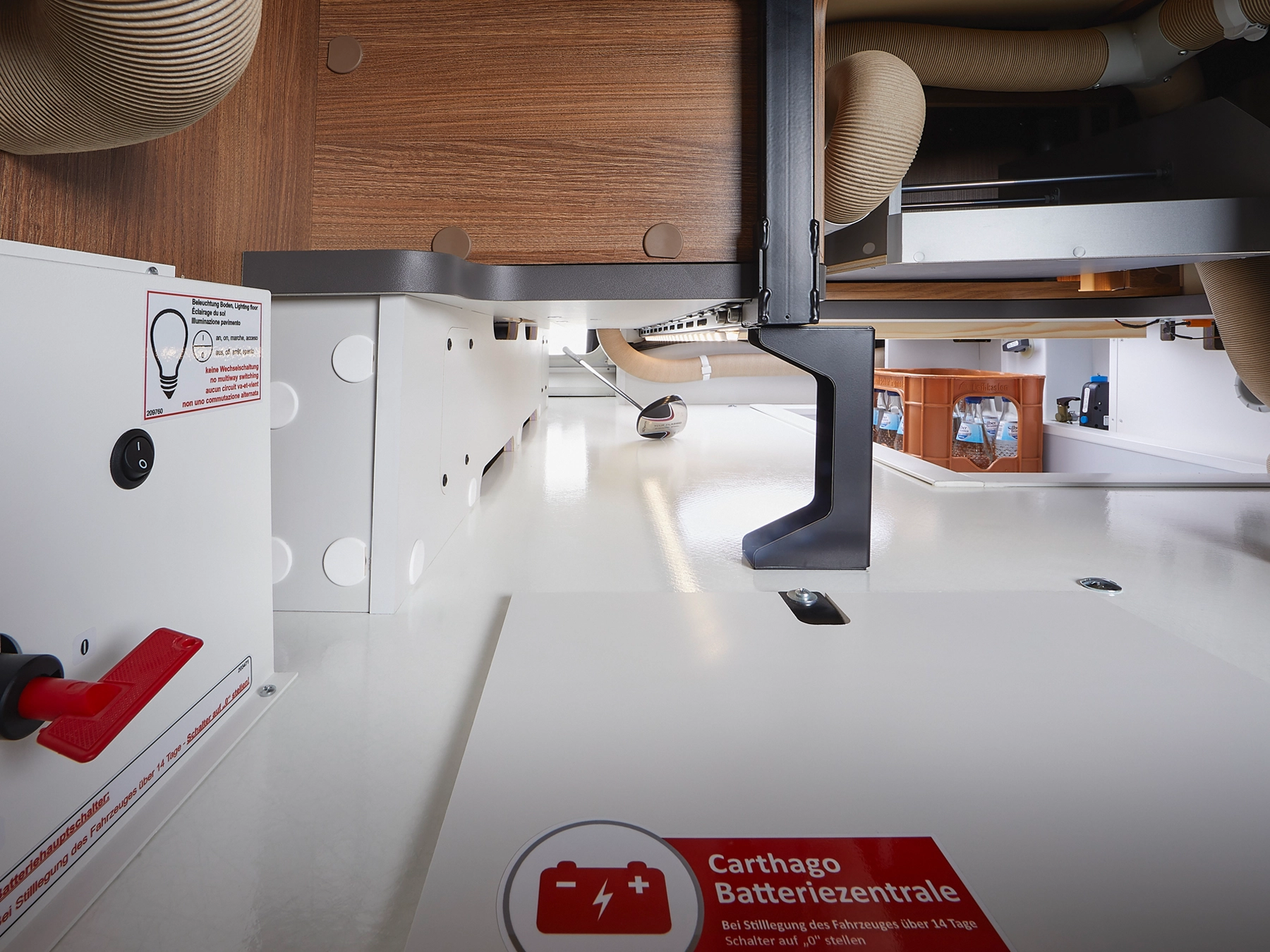

- Heated battery centre, with 1 x 80 Ah gel battery in double floor, access via double floor storage compartment on driver’s side, main power switch
- Truma CP+ digital control panel for hot air heating, behind technical panel above main cabin door
- 230 V socket in seating area, entrance area, kitchen, bathroom, scooter garage
- 12 V socket in drivers cabin
- USB socket in drivers cabin
- Innovative light concept
- Ceiling canopy with additional LED spotlights and indirect LED lighting
- LED mood light in kitchen area / plinth of seat bench
- Work light and ambient lighting can be switched on separately
- Heating Technology
- Hot air outlets in driver’s cab, dashboard front, door entrances, living area, double floor and scooter garage
- Dashboard with targeted heating with panel heating effect
- Underfloor heating effect due to heated climate storage double floor
Options Fitted to this Carthago C2 Tourer I 147 RB-LE L Comfort for the UK Include:
- Basic Plus Package consisting of:
- Wheel trims
- Tempmatik semi-automatic air conditioning system
- Cruise control
- Charge booster
- Front axle with increased load bearing capacity
- 92 litre fuel tank
- Leather steering wheel with multifunctional buttons option
- Instrument cluster with colour display
- Rain sensor
- Electric handbrake
- Driver’s cab comfort seat with tilt and height adjustment
- Pre-wiring for radio with roof antenna with DAB+, speakers (4 x)
- MBUX 10.2″ multimedia system incl. sat nav and DAB+
- Traffic sign assist
- Midi-Heki skylight with LED spotlights above the L-shaped lounge seating area
- Large scooter garage door on driver’s side
- XL habitation door ‘premium two 2.0’ (width 63 cm) with double locking, window and anti-insect blind
- 90 Ah lithium-ion battery incl. battery computer instead of 80 Ah gel battery
- SOG toilet ventilation
- Waste water hose set for convenient disposal
- USB socket in overhead storage cabinet above rear bed
- Pre-wiring for electric extractor hood
- Pre-wiring for solar system
- Pre-wiring for satellite system
- Pre-wiring for reversing camera (single lens)
- Heating | Air Conditioning
- Truma Combi 6E (additional electric heating element 2 x 900 Watt / 230 V)
- Multimedia
- 32″ TV wall bracket in the entrance area, rotatable by 180
Extra Items Available for the Carthago C2 Tourer I 147 RB-LE L Comfort Motorhome
Order your Carthago C2 Tourer I 147 RB-LE L Lightweight to your own specification. Choose from Carthago’s accessory packs and optional extras to suit you.
Use the Carthago C2 Tourer I 147 RB-LE L Lightweight Configurator (click here) to tailor your model.
When your configuration is complete, contact us to order your Carthago C2 Tourer I.
*Please Note: This vehicle listing contains library images; vehicle appearance may differ.*
