Finding essential components in your motorhome can be tricky, as their locations vary by model. Below is a detailed guide to help you quickly locate important parts like the chassis number, fuse box, batteries, and water system elements. If you’re unsure, your owner’s manual should have diagrams, or our team at Southdowns Motorhomes can assist.
1. Locating the Chassis Number (Vehicle Identification Number – VIN)
The chassis number (VIN) is a unique 17-character code used for identification, insurance, and servicing. It’s usually found in one of these places:
- Driver’s Door Frame – Often stamped on a metal plate near the door latch.
- Dashboard (Near Windscreen) – Visible through the windscreen, on the driver’s side.
- Under the Bonnet – Check the engine block or radiator support.
- Vehicle Documents – Also listed on the V5C logbook and insurance paperwork.
💡 Tip: If the VIN is tricky to read due to dirt or rust, take a photo with your phone and zoom in.
2. Locating the Fuse Box
The fuse box houses the fuses protecting your motorhome’s electrical circuits. If lights, appliances, or dashboard features stop working, checking the fuse box should be your first step.
Typical locations:
- Near the Driver’s Seat – Under the dashboard, side panel, or even under the seat.
- Engine Compartment – Some motorhomes have a second fuse box here.
- Inside a Cabinet or Storage Compartment – Common in motorhome living areas.
⚠ Common Issue: If a fuse keeps blowing, replacing it may only be a temporary fix. A repeated issue suggests an underlying electrical fault that should be checked by a technician.
3. Locating the Frost Protection Valve
The frost protection valve is an automatic safety feature that drains water from the system if temperatures drop too low, preventing frozen pipes.
Where to look:
- Near the Water Heater – Often installed alongside it to detect temperature changes.
- Under the Motorhome – Some models place it underfloor to protect internal space.
- Utility Compartment – If your motorhome has a service hatch for water connections, check there.
🛠 Quick Fix: If your water system has unexpectedly drained, the valve may have triggered automatically. Resetting it usually involves turning a dial or pushing a button (check your manual for instructions).
4. Locating the Water Pump
The water pump supplies fresh water to your taps, shower, and toilet. If your water flow is weak or non-existent, the pump is the first thing to check.
Likely locations:
- Under the Sink or a Cupboard – Particularly in kitchen or bathroom areas.
- Near the Fresh Water Tank – Positioned for the shortest possible pipe run.
- Inside a Service Hatch – Some are externally accessible.
🔧 Troubleshooting Tip: If you can hear clicking but no water flows, the pump might need priming or the tank could be empty.
5. Locating the Engine Battery
The engine battery powers your motorhome’s starter motor and dashboard electronics.
Common locations:
- Under the Bonnet – Like most standard vehicles.
- Under the Driver or Passenger Seat – Common in Fiat Ducato-based motorhomes.
- External Battery Compartment – Accessible from the side of the motorhome.
⚠ Maintenance Tip: Check battery terminals for corrosion. A light smear of petroleum jelly helps prevent buildup.

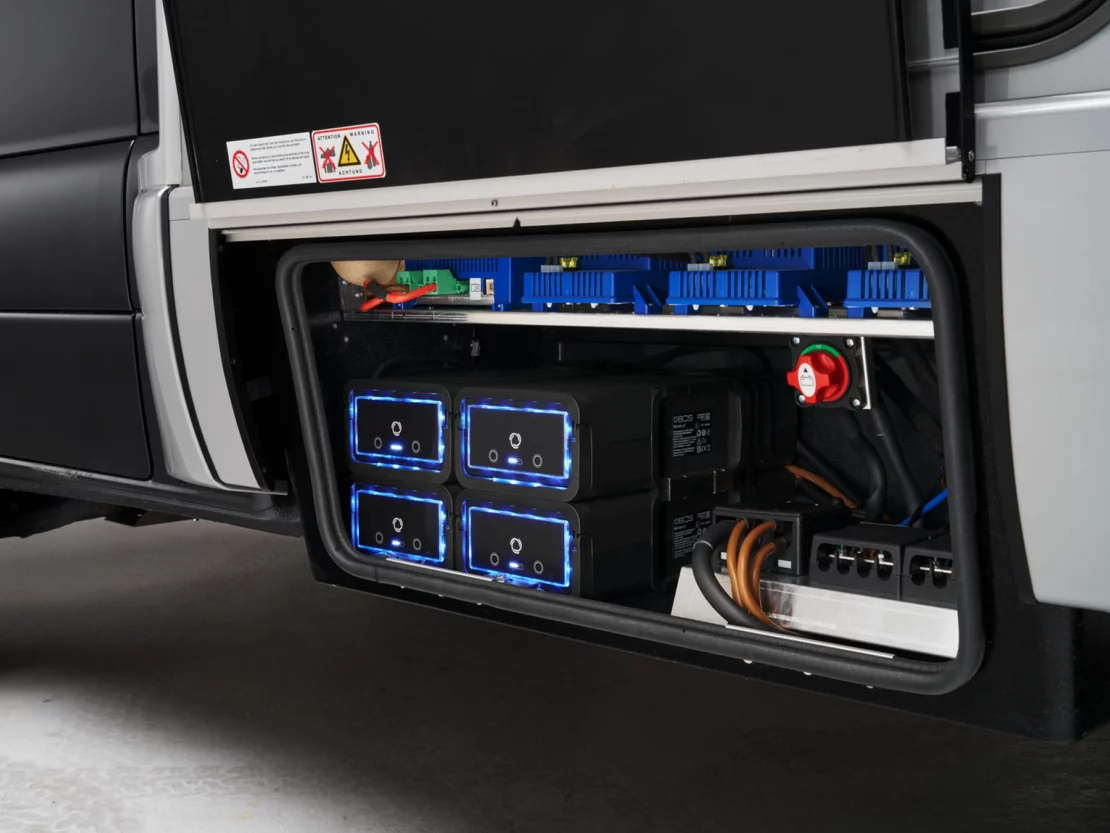

6. Locating the Leisure Battery
The leisure battery powers the lights, fridge, and 12V sockets inside your motorhome.
Possible locations:
- Under Seating Areas – Lift cushions and check under sofas or dinettes.
- In a Dedicated Battery Box – Some motorhomes have a separate storage box for it.
- In a Rear Locker or External Hatch – Look for compartments near electrical inlets.
🔋 Good to Know: If your leisure battery is running down quickly, check that no high-drain appliances (like a fridge on 12V) are running when not needed.
Final Tips
- Check Before You Travel – Knowing where key components are before setting off can save you time and hassle.
- Keep a Torch Handy – Some components are hidden in dark corners.
- Carry Spare Fuses – They’re inexpensive and can save you from being without power.
If you’re unsure about anything or need assistance, our service team at Southdowns Motorhomes is happy to help.
